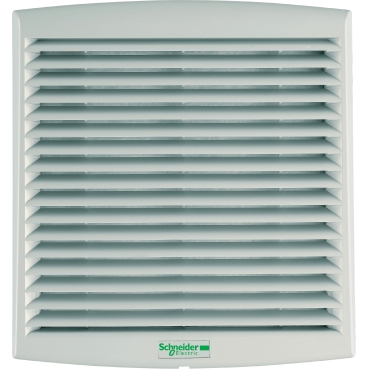

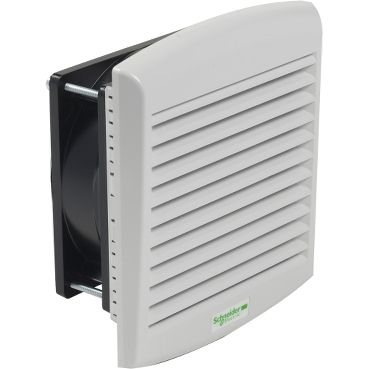

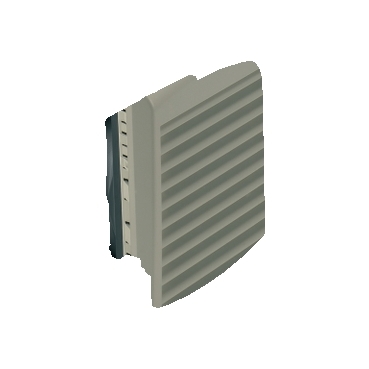

ClimaSys ClimaSys forced vent IP54, 85m3/h, 230V, with outlet grille and filter G2

Item Number: NSYCVF85M230PF

1 PCE 0

Where To Buy

Datasheet

Download

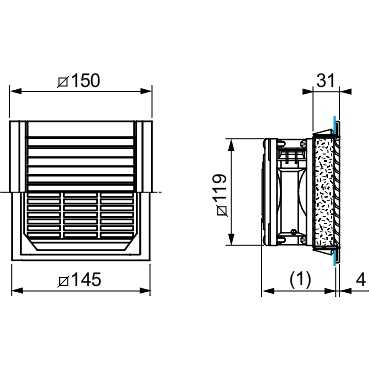

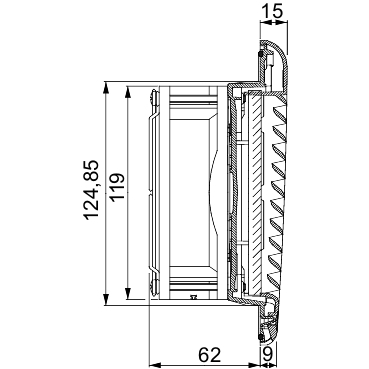

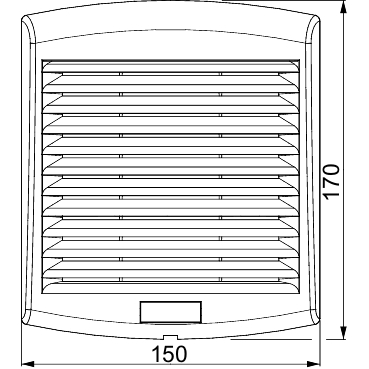

Product Dimensions

Widthexternal: 150 mm

Heightexternal: 170 mm

Depthexternal : 62 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480151200	-
24	CV	43606480151208	-

Specifications

Design

Range	ClimaSys
Product or component type	fan
Colour	outlet grille: grey (RAL 7035)
Warranty	18 months

Physical

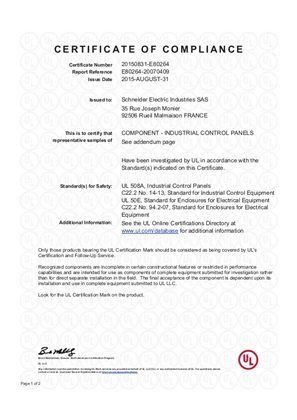

Product certifications	CSA
[in] rated current	0.121...0.121 A 50 Hz 0.097...0.097 A 60 Hz
Height	external: 170 mm
Width	external: 150 mm
Depth	external : 62 mm
Net weight	0.78 kg
Ambient air temperature for operation	-20...60 °C
Ambient air temperature for storage	-40...70 °C
Connections - terminals	Faston connector
Ip degree of protection	IP54
Mercury free	Yes
Rohs exemption information	Yes

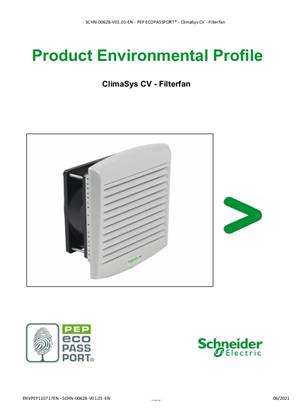

Environmental disclosure	ENVPEP110717EN
Reach regulation	Reference contains Substances of Very High Concern above the threshold
China rohs regulation	X
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov
California proposition 65	WARNING: This product can expose you to chemicals including: Lead, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material	outlet grille: injected thermoplastic (ASA PC)
Device composition	1 axial motor 2 protective grille: on the front and rear surfaces 1 filter: front of axial motor 1 outlet grille: front 1 cut-out template 1 power cord

Others

Legacy weee scope	In
Package 2 bare product quantity	10
Package 1 bare product quantity	1
Package 3 bare product quantity	240
Average percentage of recycled plastic content	0 %
	At least in Europe
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Product name	ClimaSys CV
Type of ventilation filter	standard

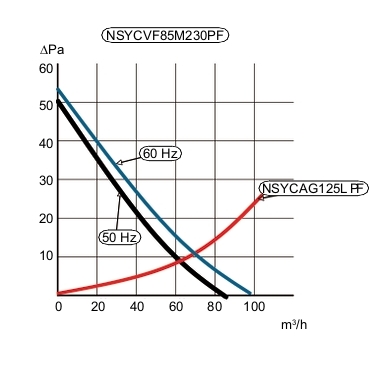

Air flow	free flow rate with standard filter: 85 m3/h at 50 Hz free flow rate with standard filter: 98 m3/h at 60 Hz
[us] rated supply voltage	175...253 V
Input voltage	230 V 50/60 Hz
Power range	15 W 60 Hz 17 W 50 Hz
Noise level	46...49 dB
Bearing type	ball

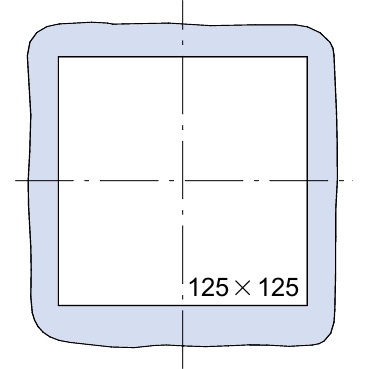

Cut-out dimensions	125 x 125 mm
Maximum pressure	50 Pa flow rate 0 m³/h
Condition of use	flow rates depends on the work point, see ProClima software surrounding environment must be relatively clean filter must be cleaned and replaced regularly overfrequent filter replacement should be avoided outside temperature must be 5 °C lower than inside temperature
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.000 cm
Package 1 width	15.500 cm
Package 1 length	18.000 cm
Package 1 weight	930.000 g
Unit type of package 2	CAR
Number of units in package 2	10
Package 2 height	21.000 cm
Package 2 width	33.000 cm
Package 2 length	43.000 cm
Package 2 weight	9.526 kg
Unit type of package 3	P12
Number of units in package 3	240
Package 3 height	95.000 cm
Package 3 width	80.000 cm
Package 3 length	120.000 cm
Package 3 weight	241.000 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	1 033 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	6.039571471057044
Carbon footprint of the manufacturing phase [a1 to a3]	6 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	1.843086585342732
Carbon footprint of the distribution phase [a4]	2 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.10335446148745978
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	1023.2842503464
Carbon footprint of the use phase [b2, b3, b4, b6]	1 023 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	1.3870946932960901
Carbon footprint of the end-of-life phase [c1 to c4]	1 kg CO2 eq.
Pvc free	Yes
Silicone-free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1032.6573575575833
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	No
Scip number	61d9d3f3-5a49-48f8-8056-1a5ad0ad4c76
China rohs label	7
Pvc free	Yes
Silicone-free	Yes

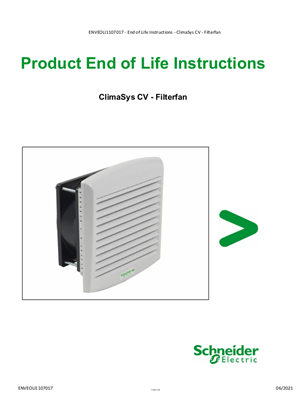

End of life manual availability	ENVEOLI1107017EN
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
