Variable speed drive Altivar 71 UL type 1/IP20 three-phase supply voltage: 380…480V 50/60 Hz, 200 kW 300 HP

Home ProductsIndustrialAltivarVariable speed drive ATV71

Altivar 71, Variable speed drive ATV71, 200kW, 300HP, 480V, EMC filter graphic terminal

Item Number: ATV71HC20N4

1 PCE 0

Where To Buy

Datasheet

Download

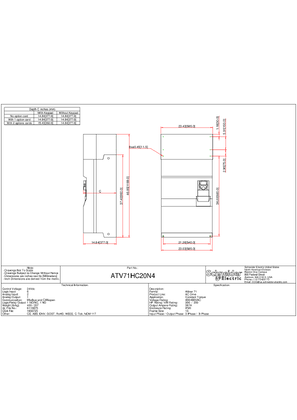

Product Dimensions

Width595 mm

Height1190 mm

Depth377 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389119201070	-

Specifications

Design

Range of product

Altivar 71

Product or component type

variable speed drive

Product destination

synchronous motors|asynchronous motors

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Local signalling

1 LED (red) for drive voltage

Type of cable

with a NEMA Type1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC|with an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC|without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC|without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR

Supply

internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection|internal supply: 24 V DC (21-27 V), <200 mA, protection type: overload and short-circuit protection

Protection type

Insulation resistance

> 1 mOhm 500 V DC for 1 minute to earth

Communication port protocol

CANopen|Modbus

Connector type

1 RJ45 (on front face) for Modbus|1 RJ45 (on terminal) for Modbus|male SUB-D 9 on RJ45 for CANopen

Marking

Height

1190 mm

Depth

377 mm

Width

595 mm

Net weight

207 kg

Standards

Product certifications

GOST|C-Tick|CSA|UL|NOM 117

Ip degree of protection

IP20

Relative humidity

5...95 % without condensation conforming to IEC 60068...2-3|5...95 % without dripping water conforming to IEC 60068...2-3

Ambient air temperature for operation

-10...50 °C (without derating)

Ambient air temperature for storage

-25...70 °C

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Environmental disclosure

ENVPEP091205EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 bare product quantity

Product specific application

complex, high-power machines

Component name

ATV71

Motor power kw

200 kW, 3 phases at 380...480 V

Motor power hp

300 hp, 3 phases at 380...480 V

Maximum motor cable length

100 m shielded cable|200 m unshielded cable

[us] rated supply voltage

380...480 V - 15...10 %

Network number of phases

3 phases

Line current

286 A for 480 V 3 phases 200 kW / 300 hp|357 A for 380 V 3 phases 200 kW / 300 hp

Emc filter

integrated

Assembly style

with heat sink

Variant

reinforced version

Apparent power

235 kVA at 380 V 3 phases 200 kW / 300 hp

Prospective line isc

50 kA for 3 phases

Nominal output current

387 A at 2.5 kHz 380 V 3 phases 200 kW / 300 hp|387 A at 2.5 kHz 460 V 3 phases 200 kW / 300 hp

Maximum transient current

580 A for 60 s 3 phases 200 kW / 300 hp|638 A for 2 s 3 phases 200 kW / 300 hp

Output frequency

0.1...500 Hz

Nominal switching frequency

2.5 kHz

Switching frequency

2.5...8 kHz adjustable|2.5...8 kHz with derating factor

Asynchronous motor control profile

sensorless flux vector control (SFVC) (voltage or current vector)|flux vector control (FVC) with sensor (current vector)|ENA (Energy adaptation) system for unbalanced loads|voltage/frequency ratio (2 or 5 points)

Type of polarization

no impedance for Modbus

Supply voltage limits

323...528 V

Supply frequency

50...60 Hz - 5...5 %

Network frequency

47.5...63 Hz

Speed range

1...100 for asynchronous motor in open-loop mode, without speed feedback|1...1000 for asynchronous motor in closed-loop mode with encoder feedback|1...50 for synchronous motor in open-loop mode, without speed feedback

Speed accuracy

+/- 0.01 % of nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn|+/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn

Torque accuracy

+/- 15 % in open-loop mode, without speed feedback|+/- 5 % in closed-loop mode with encoder feedback

Transient overtorque

170 % of nominal motor torque +/- 10 % for 60 s every 10 minutes|220 % of nominal motor torque +/- 10 % for 2 s

Braking torque

<= 150 % with braking or hoist resistor|30 % without braking resistor

Synchronous motor control profile

vector control without speed feedback

Regulation loop

adjustable PI regulator

Motor slip compensation

suppressable|not available in voltage/frequency ratio (2 or 5 points)|adjustable|automatic whatever the load

Output voltage

<= power supply voltage

Insulation

electrical between power and control

Electrical connection

terminal, clamping capacity: 2.5 mm², AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)|terminal, clamping capacity: 4 x 185 mm² (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)|terminal, clamping capacity: 4 x 185 mm² (PC/-, PA/+)

Tightening torque

0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)|41 N.m, 360 lb.in (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)|41 N.m, 360 lb.in (PC/-, PA/+)

Analogue input number

Analogue input type

AI1-/Al1+ bipolar differential voltage: +/- 10 V DC 24 V max, resolution 11 bits + sign|AI2 software-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits|AI2 software-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits

Sampling duration

2 ms +/- 0.5 ms (AI1-/Al1+) - analog input(s)|2 ms +/- 0.5 ms (Al2) - analog input(s)|2 ms +/- 0.5 ms (LI1...LI5) - discrete input(s)|2 ms +/- 0.5 ms (LI6)if configured as logic input - discrete input(s)

Response time

<= 100 ms in STO (Safe Torque Off)|AO1 2 ms, tolerance +/- 0.5 ms for analog output(s)|R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms for discrete output(s)|R2A, R2B 7 ms, tolerance +/- 0.5 ms for discrete output(s)

Accuracy

+/- 0.6 % (AI1-/Al1+) for a temperature variation 60 °C|+/- 0.6 % (AI2) for a temperature variation 60 °C|+/- 1 % (AO1) for a temperature variation 60 °C

Linearity error

+/- 0.15 % of maximum value (AI1-/Al1+, AI2)|+/- 0.2 % (AO1)

Analogue output number

Analogue output type

AO1 software-configurable logic output 10 V 20-20 mA|AO1 software-configurable current 0...20 mA, impedance: 500 Ohm, resolution 10 bits|AO1 software-configurable voltage 0...10 V DC, impedance: 470 Ohm, resolution 10 bits

Discrete output number

Discrete output type

configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles|configurable relay logic: (R2A, R2B) NO - 100000 cycles

Minimum switching current

3 mA at 24 V DC for configurable relay logic

Maximum switching current

R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 |R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 |R1, R2: 5 A at 250 V AC resistive load, cos phi = 1 |R1, R2: 5 A at 30 V DC resistive load, cos phi = 1

Discrete input number

Discrete input type

LI1...LI5: programmable 24 V DC with level 1 PLC, impedance: 3500 Ohm|LI6: switch-configurable 24 V DC with level 1 PLC, impedance: 3500 Ohm|LI6: switch-configurable PTC probe 0-6 , impedance: 1500 Ohm|PWR: safety input 24 V DC, impedance: 1500 Ohm conforming to ISO 13849-1 level d

Discrete input logic

negative logic (sink) (LI1...LI5), > 16 V (state 0), < 10 V (state 1)|positive logic (source) (LI1...LI5), < 5 V (state 0), > 11 V (state 1)|negative logic (sink) (LI6)if configured as logic input, > 16 V (state 0), < 10 V (state 1)|positive logic (source) (LI6)if configured as logic input, < 5 V (state 0), > 11 V (state 1)

Acceleration and deceleration ramps

S, U or customized|linear adjustable separately from 0.01 to 9000 s|automatic adaptation of ramp if braking capacity exceeded, by using resistor

Braking to standstill

by DC injection

Frequency resolution

analog input: 0.024/50 Hz|display unit: 0.1 Hz

Physical interface

2-wire RS 485 for Modbus

Transmission frame

RTU for Modbus

Transmission rate

4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal|9600 bps, 19200 bps for Modbus on front face|20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen

Data format

8 bits, 1 stop, even parity for Modbus on front face|8 bits, odd even or no configurable parity for Modbus on terminal

Number of addresses

1...127 for CANopen|1...247 for Modbus

Method of access

slave CANopen

Operating position

vertical +/- 10 degree

Functionality

full

Specific application

other applications

Option card

Noise level

77 dB conforming to 86/188/EEC

Dielectric strength

3535 V DC between earth and power terminals|5092 V DC between control and power terminals

Electromagnetic compatibility

1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5|conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6|electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4|electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2|radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3|voltage dips and interruptions immunity test conforming to IEC 61000-4-11

Pollution degree

2 conforming to EN/IEC 61800-5-1|3 conforming to UL 840

Vibration resistance

0.6 gn (f= 10-200 Hz) conforming to EN/IEC 60068-2-6|1.5 mm peak to peak (f= 3-10 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

4 gn for 11 ms conforming to EN/IEC 60068-2-27

Operating altitude

<= 1000 m without derating|1000...3000 m with current derating 1 % per 100 m

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

55.0 cm

Package 1 width

65.0 cm

Package 1 length

130.0 cm

Package 1 weight

200.0 kg

Unit type of package 2

PAL

Number of units in package 2

Package 2 height

120.0 cm

Package 2 width

145.0 cm

Package 2 length

80.0 cm

Package 2 weight

212.0 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
