Altivar 71, Variable speed drive ATV71, 132kW, 200HP, 480V, EMC filter graphic terminal

Home ProductsIndustrialAltivarVariable speed drive ATV71

Altivar 71, Variable speed drive ATV71, 132kW, 200HP, 480V, EMC filter graphic terminal

Item Number: ATV71HC13N4

Datasheet

Product Dimensions

Width icon

Width340 mm

Height icon

Height1190 mm

Depth icon

Depth377 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Altivar 71

Product or component type

variable speed drive

Product destination

asynchronous motors|synchronous motors

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Local signalling

1 LED (red) for drive voltage

Type of cable

with a NEMA Type1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC|with an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC|without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC|without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR

Supply

internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection|internal supply: 24 V DC (21-27 V), <200 mA, protection type: overload and short-circuit protection

Protection type

against exceeding limit speed: drive|against input phase loss: drive|break on the control circuit: drive|input phase breaks: drive|line supply overvoltage: drive|line supply undervoltage: drive|overcurrent between output phases and earth: drive|overheating protection: drive|overvoltages on the DC bus: drive|short-circuit between motor phases: drive|thermal protection: drive|motor phase break: motor|power removal: motor|thermal protection: motor

Insulation resistance

> 1 mOhm 500 V DC for 1 minute to earth

Communication port protocol

CANopen|Modbus

Connector type

1 RJ45 (on front face) for Modbus|1 RJ45 (on terminal) for Modbus|male SUB-D 9 on RJ45 for CANopen

Marking

CE

Height

1190 mm

Depth

377 mm

Width

340 mm

Net weight

116 kg

Standards

IEC 61800-3 environments 1 category C3|IEC 61800-5-1|IEC 61800-3|UL Type 1|IEC 60721-3-3 class 3C2|EN 55011 class A group 2|IEC 61800-3 environments 2 category C3

Product certifications

NOM 117|GOST|CSA|C-Tick|UL

Ip degree of protection

IP20

Relative humidity

5...95 % without condensation conforming to IEC 60068...2-3|5...95 % without dripping water conforming to IEC 60068...2-3

Ambient air temperature for operation

-10...50 °C (without derating)

Ambient air temperature for storage

-25...70 °C

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP091205EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Commercial status history

SESA301466 | Fri Feb 16 07:56:00 EST 2024 | From Import Local | From 16 to 19

Package 1 bare product quantity

1

Product specific application

complex, high-power machines

Component name

ATV71

Motor power kw

132 kW, 3 phases at 380...480 V

Motor power hp

200 hp, 3 phases at 380...480 V

Maximum motor cable length

100 m shielded cable|200 m unshielded cable

[us] rated supply voltage

380...480 V - 15...10 %

Network number of phases

3 phases

Line current

192 A for 480 V 3 phases 132 kW / 200 hp|239 A for 380 V 3 phases 132 kW / 200 hp

Emc filter

integrated

Assembly style

with heat sink

Variant

reinforced version

Apparent power

157.3 kVA at 380 V 3 phases 132 kW / 200 hp

Prospective line isc

35 kA for 3 phases

Nominal output current

259 A at 2.5 kHz 380 V 3 phases 132 kW / 200 hp|259 A at 2.5 kHz 460 V 3 phases 132 kW / 200 hp

Maximum transient current

388 A for 60 s 3 phases 132 kW / 200 hp|427 A for 2 s 3 phases 132 kW / 200 hp

Output frequency

0.1...500 Hz

Nominal switching frequency

2.5 kHz

Switching frequency

2.5...8 kHz adjustable|2.5...8 kHz with derating factor

Asynchronous motor control profile

voltage/frequency ratio (2 or 5 points)|sensorless flux vector control (SFVC) (voltage or current vector)|flux vector control (FVC) with sensor (current vector)|ENA (Energy adaptation) system for unbalanced loads

Type of polarization

no impedance for Modbus

Supply voltage limits

323...528 V

Supply frequency

50...60 Hz - 5...5 %

Network frequency

47.5...63 Hz

Speed range

1...100 for asynchronous motor in open-loop mode, without speed feedback|1...1000 for asynchronous motor in closed-loop mode with encoder feedback|1...50 for synchronous motor in open-loop mode, without speed feedback

Speed accuracy

+/- 0.01 % of nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn|+/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn

Torque accuracy

+/- 15 % in open-loop mode, without speed feedback|+/- 5 % in closed-loop mode with encoder feedback

Transient overtorque

170 % of nominal motor torque +/- 10 % for 60 s every 10 minutes|220 % of nominal motor torque +/- 10 % for 2 s

Braking torque

<= 150 % with braking or hoist resistor|30 % without braking resistor

Synchronous motor control profile

vector control without speed feedback

Regulation loop

adjustable PI regulator

Motor slip compensation

adjustable|suppressable|not available in voltage/frequency ratio (2 or 5 points)|automatic whatever the load

Output voltage

<= power supply voltage

Insulation

electrical between power and control

Electrical connection

terminal, clamping capacity: 2.5 mm², AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)|terminal, clamping capacity: 2 x 120 mm² (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)|terminal, clamping capacity: 120 mm² (PA, PB)|terminal, clamping capacity: 2 x 120 mm² (PC/-, PO, PA/+)

Tightening torque

0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)|24 N.m, 212 lb.in (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)|24 N.m, 212 lb.in (PA, PB)|24 N.m, 212 lb.in (PC/-, PO, PA/+)

Analogue input number

2

Analogue input type

AI1-/Al1+ bipolar differential voltage: +/- 10 V DC 24 V max, resolution 11 bits + sign|AI2 software-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits|AI2 software-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits

Sampling duration

2 ms +/- 0.5 ms (AI1-/Al1+) - analog input(s)|2 ms +/- 0.5 ms (Al2) - analog input(s)|2 ms +/- 0.5 ms (LI1...LI5) - discrete input(s)|2 ms +/- 0.5 ms (LI6)if configured as logic input - discrete input(s)

Response time

<= 100 ms in STO (Safe Torque Off)|AO1 2 ms, tolerance +/- 0.5 ms for analog output(s)|R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms for discrete output(s)|R2A, R2B 7 ms, tolerance +/- 0.5 ms for discrete output(s)

Accuracy

+/- 0.6 % (AI1-/Al1+) for a temperature variation 60 °C|+/- 0.6 % (AI2) for a temperature variation 60 °C|+/- 1 % (AO1) for a temperature variation 60 °C

Linearity error

+/- 0.15 % of maximum value (AI1-/Al1+, AI2)|+/- 0.2 % (AO1)

Analogue output number

1

Analogue output type

AO1 software-configurable logic output 10 V 20-20 mA|AO1 software-configurable current 0...20 mA, impedance: 500 Ohm, resolution 10 bits|AO1 software-configurable voltage 0...10 V DC, impedance: 470 Ohm, resolution 10 bits

Discrete output number

2

Discrete output type

configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles|configurable relay logic: (R2A, R2B) NO - 100000 cycles

Minimum switching current

3 mA at 24 V DC for configurable relay logic

Maximum switching current

R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4 |R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4 |R1, R2: 5 A at 250 V AC resistive load, cos phi = 1 |R1, R2: 5 A at 30 V DC resistive load, cos phi = 1

Discrete input number

7

Discrete input type

LI1...LI5: programmable 24 V DC with level 1 PLC, impedance: 3500 Ohm|LI6: switch-configurable 24 V DC with level 1 PLC, impedance: 3500 Ohm|LI6: switch-configurable PTC probe 0-6 , impedance: 1500 Ohm|PWR: safety input 24 V DC, impedance: 1500 Ohm conforming to ISO 13849-1 level d

Discrete input logic

negative logic (sink) (LI1...LI5), > 16 V (state 0), < 10 V (state 1)|positive logic (source) (LI1...LI5), < 5 V (state 0), > 11 V (state 1)|negative logic (sink) (LI6)if configured as logic input, > 16 V (state 0), < 10 V (state 1)|positive logic (source) (LI6)if configured as logic input, < 5 V (state 0), > 11 V (state 1)

Acceleration and deceleration ramps

S, U or customized|automatic adaptation of ramp if braking capacity exceeded, by using resistor|linear adjustable separately from 0.01 to 9000 s

Braking to standstill

by DC injection

Frequency resolution

analog input: 0.024/50 Hz|display unit: 0.1 Hz

Physical interface

2-wire RS 485 for Modbus

Transmission frame

RTU for Modbus

Transmission rate

4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal|9600 bps, 19200 bps for Modbus on front face|20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen

Data format

8 bits, 1 stop, even parity for Modbus on front face|8 bits, odd even or no configurable parity for Modbus on terminal

Number of addresses

1...127 for CANopen|1...247 for Modbus

Method of access

slave CANopen

Operating position

vertical +/- 10 degree

Functionality

full

Specific application

other applications

Option card

communication card for CC-Link|controller inside programmable card|communication card for DeviceNet|communication card for EtherNet/IP|communication card for Fipio|I/O extension card|communication card for Interbus-S|interface card for encoder|communication card for Modbus Plus|communication card for Modbus TCP|communication card for Modbus/Uni-Telway|overhead crane card|communication card for Profibus DP|communication card for Profibus DP V1

Noise level

66 dB conforming to 86/188/EEC

Dielectric strength

3535 V DC between earth and power terminals|5092 V DC between control and power terminals

Electromagnetic compatibility

1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5|conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6|electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4|electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2|radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3|voltage dips and interruptions immunity test conforming to IEC 61000-4-11

Pollution degree

2 conforming to IEC 61800-5-1|3 conforming to UL 840

Vibration resistance

0.6 gn (f= 10-200 Hz) conforming to IEC 60068-2-6|1.5 mm peak to peak (f= 3-10 Hz) conforming to IEC 60068-2-6

Shock resistance

7 gn for 11 ms conforming to IEC 60068-2-27

Operating altitude

<= 1000 m without derating|1000...3000 m with current derating 1 % per 100 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

38.5 cm

Package 1 width

128.5 cm

Package 1 length

37.5 cm

Package 1 weight

127.0 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • End of Life Manual

  • Operating Manuals

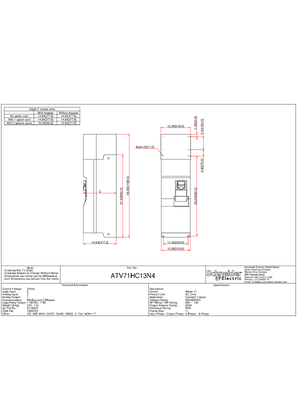

  • Technical Drawing

  • Declaration of Conformity

  • Certificates (MSDS)

  • eTechPub

  • Software - Data Library

Frequently Asked Questions

hide show

What are the part numbers of the measuring board for ATV61HC16N4 and ATV71HC13N4 drives?

Issue:
Needs the part numbers of the measuring board for the ATV61HC16N4 and ATV71HC13N4 drives

Product Line:
ATV61 and ATV71

Environment:
All

Cause:
Failed measuring board component within the drive.

Resolution:
The part number for the measuring board is VX5A71HC13N4 or VX5A71HC13N4F (For Fuji parts)
When a replacement Measurement board is needed, the serial  number of the VFD needs to be verified.

If the 8th digit of the Serial number is a "2" as shown below than the replacement part number must have an "F" suffix.
See Attachment


Where can I find the spare parts manual for the ATV61HC16N4 and ATV71HC13N4 drives?

Issue:
ATV61HC16N4 and ATV71HC13N4 spare parts manual.

Product line:
Altivar ATV61HC16N4 and ATV71HC13N4


Environment:
ATV61HC16N4 and ATV71HC13N4

Cause:
Someone needs a copy of the services manual for the ATV61HC16N4 and the ATV71HC13N4 drives.

Resolution:
Instruction bulletin 30072-452-78 is attached.


What is the SCR Snubber part number for an ATV61HC16N4 thru ATV61HC63N4 or ATV71HC13N4 thru ATV71HC50N4 drives?

Issue:
What is the SCR snubber part number for an ATV61/71 drive?

Product Line:
ATV61 and ATV71

Environment:
All serial numbers for ATV61 and ATV71

Cause:
Part number needed to order part.

Resolution:
VX4A1200 for Frame sizes 11 - 15
ATV61HC16N4 thru ATV61HC63N4 or ATV71HC13N4 thru ATV71HC50N4?
