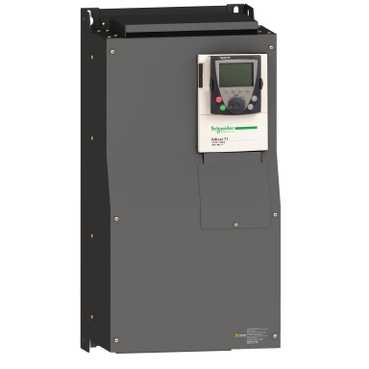

Altivar 71, Variable speed Drive, 90kW, 125HP, 480V, EMC filter graphic Terminal
Item Number: ATV71HD90N4
Specifications
Design
Range of product
Product or component type
Product destination
- asynchronous motors
- synchronous motors
Warranty
Physical
Local signalling
Type of cable
- with a NEMA Type1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC
- with an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC
- without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC
- without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR
Supply
- internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
- internal supply: 24 V DC (21-27 V), <200 mA, protection type: overload and short-circuit protection
Protection type
- against exceeding limit speed: drive
- against input phase loss: drive
- break on the control circuit: drive
- input phase breaks: drive
- line supply overvoltage: drive
- line supply undervoltage: drive
- overcurrent between output phases and earth: drive
- overheating protection: drive
- overvoltages on the DC bus: drive
- short-circuit between motor phases: drive
- thermal protection: drive
- motor phase break: motor
- power removal: motor
- thermal protection: motor
Insulation resistance
Communication port protocol
- Modbus
- CANopen
Connector type
- 1 RJ45 (on front face) for Modbus
- 1 RJ45 (on terminal) for Modbus
- male SUB-D 9 on RJ45 for CANopen
Marking
Height
Depth
Width
Net weight
Standards
- IEC 61800-5-1
- EN 55011 class A group 2
- IEC 61800-3 environments 2 category C3
- IEC 60721-3-3 class 3C2
- UL Type 1
- IEC 61800-3 environments 1 category C3
- IEC 61800-3
Product certifications
- GOST
- NOM 117
- C-Tick
- CSA
- UL
Ip degree of protection
Relative humidity
- 5...95 % without condensation conforming to IEC 60068...2-3
- 5...95 % without dripping water conforming to IEC 60068...2-3
Ambient air temperature for operation
Ambient air temperature for storage
China rohs regulation
California proposition 65
Others
Commercial status history
- SESA301466
- Fri Feb 16 07:56:00 EST 2024
- From Import Local
- From 16 to 19
Life cycle assessment data
If one of the deliverables is not relevant please give the reason
Package 1 bare product quantity
Product specific application
Component name
Motor power kw
Motor power hp
Maximum motor cable length
- 100 m shielded cable
- 200 m unshielded cable
[us] rated supply voltage
Network number of phases
Line current
- 134 A for 480 V 3 phases 90 kW / 125 hp
- 166 A for 380 V 3 phases 90 kW / 125 hp
Emc filter
Assembly style
Variant
Apparent power
Prospective line isc
Nominal output current
- 179 A at 2.5 kHz 380 V 3 phases 90 kW / 125 hp
- 179 A at 2.5 kHz 460 V 3 phases 90 kW / 125 hp
Maximum transient current
- 269 A for 60 s 3 phases 90 kW / 125 hp
- 295 A for 2 s 3 phases 90 kW / 125 hp
Output frequency
Nominal switching frequency
Switching frequency
- 2.5...8 kHz adjustable
- 2.5...8 kHz with derating factor
Asynchronous motor control profile
- voltage/frequency ratio (2 or 5 points)
- sensorless flux vector control (SFVC) (voltage or current vector)
- flux vector control (FVC) with sensor (current vector)
- ENA (Energy adaptation) system for unbalanced loads
Type of polarization
Supply voltage limits
Supply frequency
Network frequency
Speed range
- 1...100 for asynchronous motor in open-loop mode, without speed feedback
- 1...1000 for asynchronous motor in closed-loop mode with encoder feedback
- 1...50 for synchronous motor in open-loop mode, without speed feedback
Speed accuracy
- +/- 0.01 % of nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn
- +/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn
Torque accuracy
- +/- 15 % in open-loop mode, without speed feedback
- +/- 5 % in closed-loop mode with encoder feedback
Transient overtorque
- 170 % of nominal motor torque +/- 10 % for 60 s every 10 minutes
- 220 % of nominal motor torque +/- 10 % for 2 s
Braking torque
- <= 150 % with braking or hoist resistor
- 30 % without braking resistor
Synchronous motor control profile
Regulation loop
Motor slip compensation
- suppressable
- not available in voltage/frequency ratio (2 or 5 points)
- automatic whatever the load
- adjustable
Output voltage
Insulation
Electrical connection
- terminal, clamping capacity: 2.5 mm², AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
- terminal, clamping capacity: 2 x 100 mm² (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)
- terminal, clamping capacity: 60 mm² (PA, PB)
- terminal, clamping capacity: 2 x 100 mm² (PC/-, PO, PA/+)
Tightening torque
- 0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
- 24 N.m, 212 lb.in (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)
- 12 N.m, 106 lb.in (PA, PB)
- 41 N.m, 360 lb.in (PC/-, PO, PA/+)
Analogue input number
Analogue input type
- AI1-/Al1+ bipolar differential voltage: +/- 10 V DC 24 V max, resolution 11 bits + sign
- AI2 software-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits
- AI2 software-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits
Sampling duration
- 2 ms +/- 0.5 ms (AI1-/Al1+) - analog input(s)
- 2 ms +/- 0.5 ms (Al2) - analog input(s)
- 2 ms +/- 0.5 ms (LI1...LI5) - discrete input(s)
- 2 ms +/- 0.5 ms (LI6)if configured as logic input - discrete input(s)
Response time
- <= 100 ms in STO (Safe Torque Off)
- AO1 2 ms, tolerance +/- 0.5 ms for analog output(s)
- R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms for discrete output(s)
- R2A, R2B 7 ms, tolerance +/- 0.5 ms for discrete output(s)
Accuracy
- +/- 0.6 % (AI1-/Al1+) for a temperature variation 60 °C
- +/- 0.6 % (AI2) for a temperature variation 60 °C
- +/- 1 % (AO1) for a temperature variation 60 °C
Linearity error
- +/- 0.15 % of maximum value (AI1-/Al1+, AI2)
- +/- 0.2 % (AO1)
Analogue output number
Analogue output type
- AO1 software-configurable logic output 10 V 20-20 mA
- AO1 software-configurable current 0...20 mA, impedance: 500 Ohm, resolution 10 bits
- AO1 software-configurable voltage 0...10 V DC, impedance: 470 Ohm, resolution 10 bits
Discrete output number
Discrete output type
- configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles
- configurable relay logic: (R2A, R2B) NO - 100000 cycles
Minimum switching current
Maximum switching current
- R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4
- R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4
- R1, R2: 5 A at 250 V AC resistive load, cos phi = 1
- R1, R2: 5 A at 30 V DC resistive load, cos phi = 1
Discrete input number
Discrete input type
- LI1...LI5: programmable 24 V DC with level 1 PLC, impedance: 3500 Ohm
- LI6: switch-configurable 24 V DC with level 1 PLC, impedance: 3500 Ohm
- LI6: switch-configurable PTC probe 0-6 , impedance: 1500 Ohm
- PWR: safety input 24 V DC, impedance: 1500 Ohm conforming to ISO 13849-1 level d
Discrete input logic
- negative logic (sink) (LI1...LI5), > 16 V (state 0), < 10 V (state 1)
- positive logic (source) (LI1...LI5), < 5 V (state 0), > 11 V (state 1)
- negative logic (sink) (LI6)if configured as logic input, > 16 V (state 0), < 10 V (state 1)
- positive logic (source) (LI6)if configured as logic input, < 5 V (state 0), > 11 V (state 1)
Acceleration and deceleration ramps
- automatic adaptation of ramp if braking capacity exceeded, by using resistor
- linear adjustable separately from 0.01 to 9000 s
- S, U or customized
Braking to standstill
Frequency resolution
- analog input: 0.024/50 Hz
- display unit: 0.1 Hz
Physical interface
Transmission frame
Transmission rate
- 4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal
- 9600 bps, 19200 bps for Modbus on front face
- 20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen
Data format
- 8 bits, 1 stop, even parity for Modbus on front face
- 8 bits, odd even or no configurable parity for Modbus on terminal
Number of addresses
- 1...127 for CANopen
- 1...247 for Modbus
Method of access
Operating position
Functionality
Specific application
Option card
- communication card for CC-Link
- controller inside programmable card
- communication card for DeviceNet
- communication card for EtherNet/IP
- communication card for Fipio
- I/O extension card
- communication card for Interbus-S
- interface card for encoder
- communication card for Modbus Plus
- communication card for Modbus TCP
- communication card for Modbus/Uni-Telway
- overhead crane card
- communication card for Profibus DP
- communication card for Profibus DP V1
Noise level
Dielectric strength
- 3535 V DC between earth and power terminals
- 5092 V DC between control and power terminals
Electromagnetic compatibility
- 1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
- conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
- electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
- electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
- radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
- voltage dips and interruptions immunity test conforming to IEC 61000-4-11
Pollution degree
- 2 conforming to IEC 61800-5-1
- 3 conforming to UL 840
Vibration resistance
- 0.6 gn (f= 10-200 Hz) conforming to IEC 60068-2-6
- 1.5 mm peak to peak (f= 3-10 Hz) conforming to IEC 60068-2-6
Shock resistance
Operating altitude
- <= 1000 m without derating
- 1000...3000 m with current derating 1 % per 100 m
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Weee
Product contributes to saved and avoided emissions
Documents & downloads
hide show-
All
-
CAD Files and Packs
-
Technical Data Catalogues
-
Installation Instruction
-
End of Life Manual
-
Operating Manuals
-

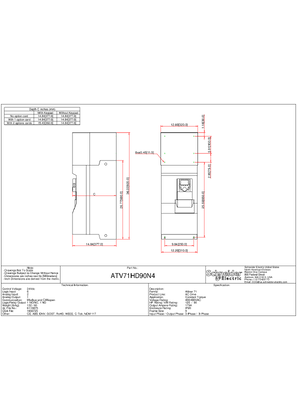

Technical Drawing
-
