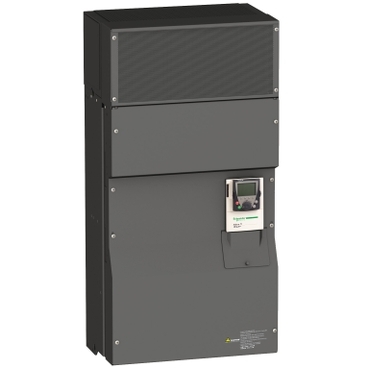

Altivar 71, Variable speed Drive, 250kW, 400HP, 480V, EMC filter graphic Terminal

Item Number: ATV71HC25N4

1 PCE 0

Where To Buy

Datasheet

Download

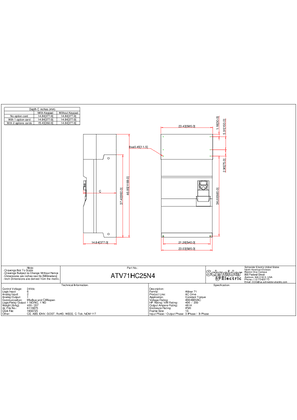

Product Dimensions

Width595 mm

Height1190 mm

Depth377 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		3389119201087	-

Specifications

Design

Range of product

Altivar 71

Product or component type

variable speed drive

Product destination

synchronous motors
asynchronous motors

Warranty

18 months

Physical

Local signalling

1 LED (red) for drive voltage

Type of cable

with a NEMA Type1 kit: 3 wire(s)UL 508 cable at 40 °C, copper 75 °C / PVC
with an IP21 or an IP31 kit: 3 wire(s)IEC cable at 40 °C, copper 70 °C / PVC
without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 70 °C / PVC
without mounting kit: 1 wire(s)IEC cable at 45 °C, copper 90 °C / XLPE/EPR

Supply

internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 mA, protection type: overload and short-circuit protection
internal supply: 24 V DC (21-27 V), <200 mA, protection type: overload and short-circuit protection

Protection type

against exceeding limit speed: drive
short-circuit between motor phases: drive
thermal protection: drive
motor phase break: motor
power removal: motor
thermal protection: motor
against input phase loss: drive
break on the control circuit: drive
input phase breaks: drive
line supply overvoltage: drive
line supply undervoltage: drive
overcurrent between output phases and earth: drive
overheating protection: drive
overvoltages on the DC bus: drive

Insulation resistance

> 1 mOhm 500 V DC for 1 minute to earth

Communication port protocol

CANopen
Modbus

Connector type

1 RJ45 (on front face) for Modbus
1 RJ45 (on terminal) for Modbus
male SUB-D 9 on RJ45 for CANopen

Marking

Height

1190 mm

Depth

377 mm

Width

595 mm

Net weight

207 kg

Standards

EN/IEC 61800-5-1
UL Type 1
IEC 60721-3-3 class 3C2
EN 61800-3 environments 1 category C3
EN/IEC 61800-3
EN 55011 class A group 2
EN 61800-3 environments 2 category C3

Product certifications

NOM 117
GOST
CSA
C-Tick
UL

Ip degree of protection

IP20

Relative humidity

5...95 % without condensation conforming to IEC 60068...2-3
5...95 % without dripping water conforming to IEC 60068...2-3

Ambient air temperature for operation

-10...50 °C (without derating)

Ambient air temperature for storage

-25...70 °C

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Commercial status history

SESA301466
Fri Feb 16 07:56:00 EST 2024
From Import Local
From 16 to 19

Package 1 bare product quantity

Product specific application

complex, high-power machines

Component name

ATV71

Motor power kw

220 kW, 3 phases at 380...480 V
250 kW, 3 phases at 380...480 V

Motor power hp

350 hp, 3 phases at 380...480 V
400 hp, 3 phases at 380...480 V

Maximum motor cable length

100 m shielded cable
200 m unshielded cable

[us] rated supply voltage

380...480 V - 15...10 %

Network number of phases

3 phases

Line current

320 A for 480 V 3 phases 220 kW / 350 hp
357 A for 480 V 3 phases 250 kW / 400 hp
396 A for 380 V 3 phases 220 kW / 350 hp
444 A for 380 V 3 phases 250 kW / 400 hp

Emc filter

integrated

Assembly style

with heat sink

Variant

reinforced version

Apparent power

260.6 kVA at 380 V 3 phases 220 kW / 350 hp
292.2 kVA at 380 V 3 phases 250 kW / 400 hp

Prospective line isc

50 kA for 3 phases

Nominal output current

427 A at 2.5 kHz 380 V 3 phases 220 kW / 350 hp
427 A at 2.5 kHz 460 V 3 phases 220 kW / 350 hp
481 A at 2.5 kHz 380 V 3 phases 250 kW / 400 hp
481 A at 2.5 kHz 460 V 3 phases 250 kW / 400 hp

Maximum transient current

640 A for 60 s 3 phases 220 kW / 350 hp
704 A for 2 s 3 phases 220 kW / 350 hp
721 A for 60 s 3 phases 250 kW / 400 hp
793 A for 2 s 3 phases 250 kW / 400 hp

Output frequency

0.1...500 Hz

Nominal switching frequency

2.5 kHz

Switching frequency

2.5...8 kHz adjustable
2.5...8 kHz with derating factor

Asynchronous motor control profile

sensorless flux vector control (SFVC) (voltage or current vector)
flux vector control (FVC) with sensor (current vector)
voltage/frequency ratio (2 or 5 points)
ENA (Energy adaptation) system for unbalanced loads

Type of polarization

no impedance for Modbus

Supply voltage limits

323...528 V

Supply frequency

50...60 Hz - 5...5 %

Network frequency

47.5...63 Hz

Speed range

1...100 for asynchronous motor in open-loop mode, without speed feedback
1...1000 for asynchronous motor in closed-loop mode with encoder feedback
1...50 for synchronous motor in open-loop mode, without speed feedback

Speed accuracy

+/- 0.01 % of nominal speed in closed-loop mode with encoder feedback 0.2 Tn to Tn
+/- 10 % of nominal slip without speed feedback 0.2 Tn to Tn

Torque accuracy

+/- 15 % in open-loop mode, without speed feedback
+/- 5 % in closed-loop mode with encoder feedback

Transient overtorque

170 % of nominal motor torque +/- 10 % for 60 s every 10 minutes
220 % of nominal motor torque +/- 10 % for 2 s

Braking torque

<= 150 % with braking or hoist resistor
30 % without braking resistor

Synchronous motor control profile

vector control without speed feedback

Regulation loop

adjustable PI regulator

Motor slip compensation

not available in voltage/frequency ratio (2 or 5 points)
automatic whatever the load
adjustable
suppressable

Output voltage

<= power supply voltage

Insulation

electrical between power and control

Electrical connection

terminal, clamping capacity: 2.5 mm², AWG 14 (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
terminal, clamping capacity: 4 x 185 mm² (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)
terminal, clamping capacity: 4 x 185 mm² (PC/-, PA/+)

Tightening torque

0.6 N.m (AI1-/AI1+, AI2, AO1, R1A, R1B, R1C, R2A, R2B, LI1...LI6, PWR)
41 N.m, 360 lb.in (L1/R, L2/S, L3/T, U/T1, V/T2, W/T3)
41 N.m, 360 lb.in (PC/-, PA/+)

Analogue input number

Analogue input type

AI1-/Al1+ bipolar differential voltage: +/- 10 V DC 24 V max, resolution 11 bits + sign
AI2 software-configurable current: 0...20 mA, impedance: 242 Ohm, resolution 11 bits
AI2 software-configurable voltage: 0...10 V DC 24 V max, impedance: 30000 Ohm, resolution 11 bits

Sampling duration

2 ms +/- 0.5 ms (AI1-/Al1+) - analog input(s)
2 ms +/- 0.5 ms (Al2) - analog input(s)
2 ms +/- 0.5 ms (LI1...LI5) - discrete input(s)
2 ms +/- 0.5 ms (LI6)if configured as logic input - discrete input(s)

Response time

<= 100 ms in STO (Safe Torque Off)
AO1 2 ms, tolerance +/- 0.5 ms for analog output(s)
R1A, R1B, R1C 7 ms, tolerance +/- 0.5 ms for discrete output(s)
R2A, R2B 7 ms, tolerance +/- 0.5 ms for discrete output(s)

Accuracy

+/- 0.6 % (AI1-/Al1+) for a temperature variation 60 °C
+/- 0.6 % (AI2) for a temperature variation 60 °C
+/- 1 % (AO1) for a temperature variation 60 °C

Linearity error

+/- 0.15 % of maximum value (AI1-/Al1+, AI2)
+/- 0.2 % (AO1)

Analogue output number

Analogue output type

AO1 software-configurable logic output 10 V 20-20 mA
AO1 software-configurable current 0...20 mA, impedance: 500 Ohm, resolution 10 bits
AO1 software-configurable voltage 0...10 V DC, impedance: 470 Ohm, resolution 10 bits

Discrete output number

Discrete output type

configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles
configurable relay logic: (R2A, R2B) NO - 100000 cycles

Minimum switching current

3 mA at 24 V DC for configurable relay logic

Maximum switching current

R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4
R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4
R1, R2: 5 A at 250 V AC resistive load, cos phi = 1
R1, R2: 5 A at 30 V DC resistive load, cos phi = 1

Discrete input number

Discrete input type

LI1...LI5: programmable 24 V DC with level 1 PLC, impedance: 3500 Ohm
LI6: switch-configurable 24 V DC with level 1 PLC, impedance: 3500 Ohm
LI6: switch-configurable PTC probe 0-6 , impedance: 1500 Ohm
PWR: safety input 24 V DC, impedance: 1500 Ohm conforming to ISO 13849-1 level d

Discrete input logic

negative logic (sink) (LI1...LI5), > 16 V (state 0), < 10 V (state 1)
positive logic (source) (LI1...LI5), < 5 V (state 0), > 11 V (state 1)
negative logic (sink) (LI6)if configured as logic input, > 16 V (state 0), < 10 V (state 1)
positive logic (source) (LI6)if configured as logic input, < 5 V (state 0), > 11 V (state 1)

Acceleration and deceleration ramps

automatic adaptation of ramp if braking capacity exceeded, by using resistor
linear adjustable separately from 0.01 to 9000 s
S, U or customized

Braking to standstill

by DC injection

Frequency resolution

analog input: 0.024/50 Hz
display unit: 0.1 Hz

Physical interface

2-wire RS 485 for Modbus

Transmission frame

RTU for Modbus

Transmission rate

4800 bps, 9600 bps, 19200 bps, 38.4 Kbps for Modbus on terminal
9600 bps, 19200 bps for Modbus on front face
20 kbps, 50 kbps, 125 kbps, 250 kbps, 500 kbps, 1 Mbps for CANopen

Data format

8 bits, 1 stop, even parity for Modbus on front face
8 bits, odd even or no configurable parity for Modbus on terminal

Number of addresses

1...127 for CANopen
1...247 for Modbus

Method of access

slave CANopen

Operating position

vertical +/- 10 degree

Functionality

full

Specific application

other applications

Option card

communication card for CC-Link
communication card for Modbus TCP
communication card for Modbus/Uni-Telway
overhead crane card
communication card for Profibus DP
communication card for Profibus DP V1
controller inside programmable card
communication card for DeviceNet
communication card for EtherNet/IP
communication card for Fipio
I/O extension card
communication card for Interbus-S
interface card for encoder
communication card for Modbus Plus

Noise level

77 dB conforming to 86/188/EEC

Dielectric strength

3535 V DC between earth and power terminals
5092 V DC between control and power terminals

Electromagnetic compatibility

1.2/50 µs - 8/20 µs surge immunity test level 3 conforming to IEC 61000-4-5
conducted radio-frequency immunity test level 3 conforming to IEC 61000-4-6
electrical fast transient/burst immunity test level 4 conforming to IEC 61000-4-4
electrostatic discharge immunity test level 3 conforming to IEC 61000-4-2
radiated radio-frequency electromagnetic field immunity test level 3 conforming to IEC 61000-4-3
voltage dips and interruptions immunity test conforming to IEC 61000-4-11

Pollution degree

2 conforming to EN/IEC 61800-5-1
3 conforming to UL 840

Vibration resistance

0.6 gn (f= 10-200 Hz) conforming to EN/IEC 60068-2-6
1.5 mm peak to peak (f= 3-10 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

4 gn for 11 ms conforming to EN/IEC 60068-2-27

Operating altitude

<= 1000 m without derating
1000...3000 m with current derating 1 % per 100 m

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

43.0 cm

Package 1 width

51.0 cm

Package 1 length

122.5 cm

Package 1 weight

68.0 kg

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Product contributes to saved and avoided emissions

Show all specifications

Documents & downloads

hide show

Colour ()

Altivar 71, Variable speed Drive, 250kW, 400HP, 480V, EMC filter graphic Terminal

Item Number: ATV71HC25N4

Colour ()

Datasheet

Product Dimensions

Barcode

Specifications

Design

Physical

Others

Documents & downloads

All

CAD Files and Packs

Technical Data Catalogues

Installation Instruction

End of Life Manual

Operating Manuals

Technical Drawing

eTechPub

Certificates (MSDS)

Software - Data Library

Dimensions drawings RSX Size 13 with DC-Choke

ATV71HC25N4_CAD_DOC

Variable speed drive ATV71HC20N4, ATV61HC25N4, ATV71HC25N4, ATV71HC28N4, TV61HC28N4, ATV61HC31N4

Variable speed drive ATV71HC20N4, ATV61HC25N4, ATV71HC25N4, ATV71HC28N4, TV61HC28N4, ATV61HC31N4

Variable speed drive ATV71HC20N4, ATV61HC25N4, ATV71HC25N4, ATV71HC28N4, TV61HC28N4, ATV61HC31N4

Variable speed drive ATV71HC20N4, ATV61HC25N4, ATV71HC25N4, ATV71HC28N4, TV61HC28N4, ATV61HC31N4

Variable speed drive ATV71HC20N4, ATV61HC25N4, ATV71HC25N4, ATV71HC28N4, TV61HC28N4, ATV61HC31N4

Variable speed drive ATV71HC20N4, ATV61HC25N4, ATV71HC25N4, ATV71HC28N4, TV61HC28N4, ATV61HC31N4

Variable speed drive ATV71HC20N4, ATV61HC25N4, ATV71HC25N4, ATV71HC28N4, TV61HC28N4, ATV61HC31N4

Variable speed drive ATV71HC20N4, ATV61HC25N4, ATV71HC25N4, ATV71HC28N4, TV61HC28N4, ATV61HC31N4

Variable speed drive ATV71HC20N4, ATV61HC25N4, ATV71HC25N4, ATV71HC28N4, ATV61HC28N4, ATV61HC31N4, ATV71HC20Y, ATV71HC25Y, ATV71HC31Y

Catalog: Altivar 71/71 Plus variable speed drives - English version 2014/04 (web pdf format)

VW3A950 Flange Mounting Kits for ATV61 and ATV71 Drive Controllers, Supplementary Instructions

Altivar 61 and 71 VHP Drives Installation Instructions

M-Flex Adjustable Speed Drive Controllers Installation Instructions

Altivar 61 and 71 Spare Parts Kits Required Documentation

Altivar Plus Users Manual

Altivar 61 and 71 Fan Kits VZ3V1204, VZ3V1210, and VZ3V1205 Installation Instructions

Altivar 71W Simplified Manual, 0.75-75 kW (1-100 hp), 380-480 V, IP54 Instruction Bulletin

ATV61 and ATV71 Plastic Kits and Power Terminal Kit for Frame Sizes 2 to 5 - Installation Instructions

Altivar 31, 61, and 71 Drives Simple Loader VW3A8120 Instruction Sheet

Addendum to Altivar 71 Profibus DP VW3A3307

Altivar 61 and 71 Fan Kits VZ3V1203, VZ3V1209 Installation Instructions

Altivar 61 and 71 Supplementary Ratings Instructions

Altivar 71 Modbus TCP/IP Ethernet Card VW3A3310 Installation Instructions

Reference Sheet for ATV61 and ATV71 Option Cards

Altivar 61 and 71 Control Terminal Board Kit VX4A1104 Instructions

Altivar 61 and 71 Drive Controllers Supplementary Instructions for Interbus-S Option Card VW3A3304

Altivar 61 and 71 Drive Controllers: Supplementary Instructions for Modbus/Uni-Telway Card VW3A3303 Instructions

Altivar 61 and 71 EtherNet/IP Card VW3A3316 Instructions

Altivar 61 and 71 Fan Kit VZ3V1215 Installation Instructions

Altivar 61 and 71 Fan Kits VZ3V1206, VZ3V1207, VZ3V1208, and VZ3V1211 Installation Instructions

Altivar 61 and 71 Modbus TCP/IP Daisy Chain Ethernet Card VW3A3310d Reference Sheet

Altivar 61 and 71 Type 1 Cover for Profibus Option Card VW3A3307 Instructions

Altivar 71 Variable Speed Drives for Synchronous and Asynchronous Motors Programming Manual

Altivar 61 and 71 Spare Parts Kits for Frame Size 10 Drives - Instructions

Altivar 61 and 71 Spare Parts Kits for Frame Size 11 - Instructions

Altivar 61 and 71 Type 1 Conduit Box Kits VW3A9201 VW3A9208 and VW3A9217 Installation Instructions

Altivar 61 and 71 Spare Parts Kits for Frame Size 9 Drives - Installation

Altivar 61 and 71 Field Drive for Oil and Gas Pumping and Irrigation Installation Instructions

Altivar 61 and 71 Spare Parts Kits for Frame Size 6 Drives - Instructions

Altivar 61 and 71 Spare Parts Kits for Frame Size 13 Drives - Instructions

Altivar 61/71 Adjustable Speed Drive Controllers Installation Instructions

ATV71W Conduit Plates Supplementary Instructions

Altivar 61/71 PowerGard Class 8839 Type CPD 18-Pulse Adjustable Speed Drive Controllers Installation Instructions

ATV930 & ATV61/71 braking units manual

ATV61 and ATV71 Spare Parts Kits for Frame Size 15 - Instructions

Altivar 61 and 71 Profibus DPv1 - Installation Instructions

Altivar 61 Variable Speed Drive Controllers Low Horsepower Simplified guide

ATV61 and ATV71 Spare Parts Kits for Frame Size 14B Drives - Installation

ATV61 and ATV71 Spare Parts Kits for Frame Size 14 - Instructions

Altivar 61 and 71 Spare Parts Kits for Frame Size 7A Drives

Altivar 61 and 71 Outdoor Enclosed Drive Instructions

Instruction Sheet: China RoHS - Hazardous Substances Table

ALTIVAR 61, 90 - 800 kW - ALTIVAR 71, 90 - 630 kW, Product End-of-Life Instructions

ATV61 ATV71 to ATV600 ATV900 Migration Manual

ATV61/71/ LIFT Safety integrated function manual

ATV71 Quick Start annex: SCCR and branch circuit protection
