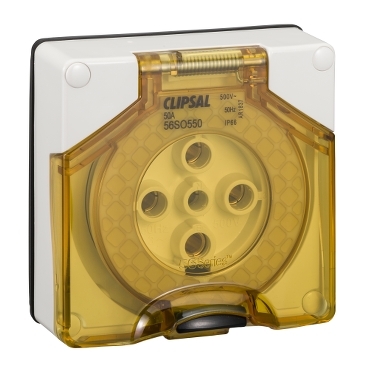

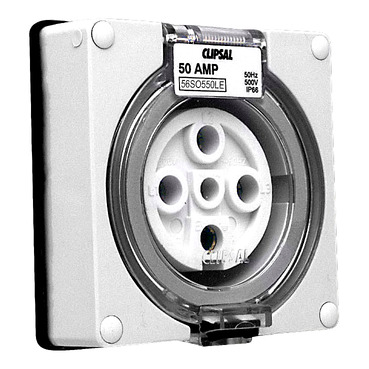

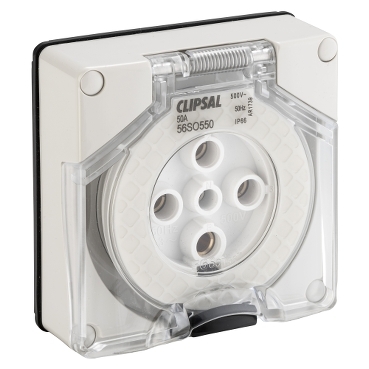

Clipsal - 56 Series, Socket Outlet, Surface 5 PIN Round 50A Less Enclosure

Clipsal - 56 Series, Socket Outlet, Surface 5 PIN Round 50A Less Enclosure GY

Item Number: 56SO550LE-GY

Datasheet

Product Dimensions

Width icon

Width101 mm

Height icon

Height107 mm

Depth icon

Depth74 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 56

Range

Clipsal - 56 Series

Product brand

Clipsal

Product or component type

socket-outlet

Device application

power supply

Market segment

industry|utility|small commercial

Physical

Device mounting

surface

Mounting mode

external mounting

[in] rated current

50 A

[ue] rated operational voltage

500 V AC 50 Hz conforming to EN 60309-2

Connections - terminals

screw terminals 10-16 mm² rigid or stranded cable

Socket number

1

Outlet standard

industrial

Net weight

0.34 kg

Depth

74 mm

Width

101 mm

Height

107 mm

Ambient air temperature for operation

-25...75 °C

Standards

AS/NZS 3112

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Material

Material

polycarbonate: cover

Contacts material

screws: brass

Others

Package 2 bare product quantity

30

Package 1 bare product quantity

1

Outlet standard deviation

Australian/New Zealand

Plug, socket category

low voltage

Poles description

3P + N + E

Voltage colour

black

Duration

7 h

Tightening torque

0.8 N.m

Socket-outlet type

U

Targeted country

Australia

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.9 cm

Package 1 width

10.1 cm

Package 1 length

10.1 cm

Package 1 weight

340 g

Unit type of package 2

CAR

Number of units in package 2

30

Package 2 height

21 cm

Package 2 width

34.8 cm

Package 2 length

44.5 cm

Package 2 weight

10.6 kg
