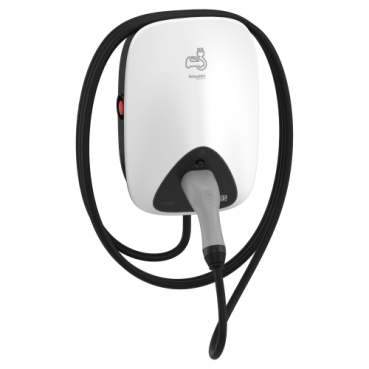

EVlink Home Charging station 1P+N, attached cable 5m, 7.4kW, 32A, with RDC-DD

EVlink Home Charging station 1P+N, attached cable 5m, 7.4kW, 32A, with RDC-DD

Item Number: EVH4S07NC

Datasheet

Product Dimensions

Width icon

Width282 mm

Height icon

Height409 mm

Depth icon

Depth148 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

EVlink

Product or component type

charging station

Sustainable offer status

Green Premium product

Physical

Mounting mode

wall-mounted

Socket number

1

Quantity per set

set of 1

Control type

red 1 emergency stop, function: 1 push-button

Local signalling

red, green and blue 1 LED, function: status indication

Protection type

earth-leakage protection

Height

409 mm

Width

282 mm

Depth

148 mm

Net weight

4.5 kg

Standards

EN 61851|IEC 61851-1|EN 61000-6-1|EN 61000-6-3

Product certifications

CE|UKCA

Ip degree of protection

IP55 conforming to EN/IEC 60529

Ik degree of protection

IK10 conforming to IEC 62262

Ambient air temperature for operation

-30...50 °C

Ambient air temperature for storage

-40...85 °C

Relative humidity

5...95 %

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2208005_V1

Circularity profile

ENVEOLI2208005_V1

Others

Commercial status history

SESA211158 | Mon Aug 19 02:47:00 EDT 2024 | From Import Local | From 14 to 18

Package 1 bare product quantity

1

Product name

EVlink Home

Poles description

1P + N

Offer type

basic

Nominal output power

7.4 kW 32 A 230 V

Socket outlet type

cable T2

Output type

attached cable T2 bottom and top centre of enclosure 5 m

[us] rated supply voltage

230 V AC 50 Hz +/- 10 %

Earthing system

TT|TN-S

Number of inputs

1

Input type

auxiliary for dynamic energy management

Maximum supply current

32 A

Operating altitude

0...2000 m

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

30.0 cm

Package 1 width

39.0 cm

Package 1 length

50.0 cm

Package 1 weight

6.928 kg

Unit type of package 2

P12

Number of units in package 2

8

Package 2 height

80.0 cm

Package 2 width

80.0 cm

Package 2 length

120.0 cm

Package 2 weight

70.0 kg

Product contributes to saved and avoided emissions

No
