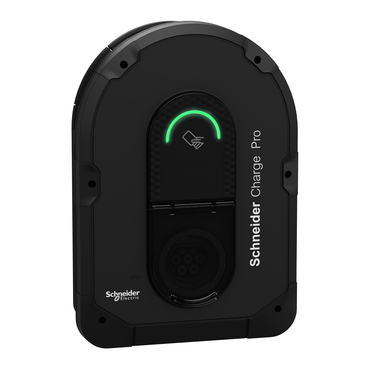

Schneider Charge Pro, Charging station, 1P-3P, 1xT2S, 7.4-11-22kW, 16-32A, with 4G modem and communication with TIC
Item Number: EVB4S22N40G
Datasheet
Product Dimensions
Width292 mm
Height418 mm
Depth136 mm
Specifications
Design
Range
Product or component type
Physical
Mounting mode
- wall-mounted
- pedestal mount
Mounting support
Type of installation
Socket number
Quantity per set
Provided equipment
- 1 residual direct current detection device (RDC-DD) integrated
- 1 Wi-Fi module integrated
- 2 Ethernet interface module integrated
- 1 iMNx auxiliary contact integrated
Control type
Local signalling
- on charge: LED (blue)
- error: LED (red)
- available: LED (green)
- start: LED (white)
- reserved: LED (orange)
Height
Width
Depth
Net weight
Standards
- EN/IEC 61851-1
- EN/IEC 61439-7
- IEC 62955
- EN/IEC 61851-21-2
- EN/IEC 61000-6-1
- EN/IEC 61000-6-2
- EN/IEC 61000-6-3
- EN/IEC 61000-6-4
- EN 301489-1
- EN 301489-3
- EN 301489-17
- EN 301-489-52
- EN 300328
- EN 300330
- ETSI EN 301 511
- EN 301-908-1
- EN 301-908-2
- ETSI EN 301 908-13
- EN/IEC 62311
Product certifications
- CE
- UKCA
- EV Ready 2.0A
Communication network type
- Wi-Fi
- Ethernet TCP/IP
- 4G
Communication port protocol
- OCPP 1.6J, for connection to CPO & CSMS
- OCPP 1.6J, for connection to EVCE
Type of setting
Ip degree of protection
Ik degree of protection
Ambient air temperature for operation
Ambient air temperature for storage
Relative humidity
Reach regulation
Eu rohs directive
Mercury free
Rohs exemption information
China rohs regulation
Environmental disclosure
Circularity profile
Others
Commercial status history
- SESA569318
- Wed Mar 12 02:06:00 CET 2025
- From Unitary Local
- From 19 to 08
Package 2 bare product quantity
Package 1 bare product quantity
Product name
Poles description
Nominal output power
- 7.4 kW 32 A 230 V
- 11 kW 16 A 400 V
- 22 kW 32 A 400 V
Socket outlet type
Output type
Access control system
- free access
- badge MIFARE DESFire EV1
- badge MIFARE DESFire EV2
- badge MIFARE
- RFID authentification card MIFARE DESFire EV1
- RFID authentification card MIFARE DESFire EV2
- RFID authentification card MIFARE
Protection device type
[us] rated supply voltage
- 220...240 V AC 50/60 Hz +/- 10 %
- 380...415 V AC 50/60 Hz +/- 10 %
Earthing system
- TT
- TN-S
- TN-C
- IT only between 220 VAC and 240 VAC
Number of inputs
Input type
- auxiliary for dynamic energy management NO contact
- auxiliary for dynamic energy management NC contact
- french electronic TIC electricity meter for dynamic energy management
- anti-tripping module for dynamic energy management
Maximum supply current
Communication service
Local display
Operating altitude
Unit type of package 1
Number of units in package 1
Package 1 height
Package 1 width
Package 1 length
Package 1 weight
Unit type of package 2
Number of units in package 2
Package 2 height
Package 2 width
Package 2 length
Package 2 weight
Green premium status for reporting
China green designed product
Weee
Product contributes to saved and avoided emissions
Carbon footprint (kg.eq.co2 per cr, total life cycle)
Global warming ; total life cycle
Minimum percentage of recycled plastic content
Documents & downloads
hide show-
All
-
Product Brochures
-
CAD Files and Packs
-
Other technical guide
-
Installation Instruction
-

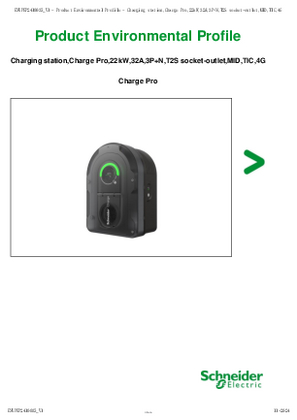

Environmental Disclosure
-
End of Life Manual
-

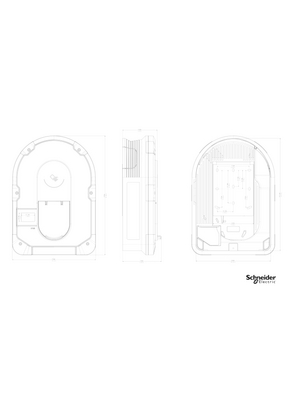

Technical illustration
-
Technical Drawing
-
Application Notes
-
Certificates (MSDS)
-

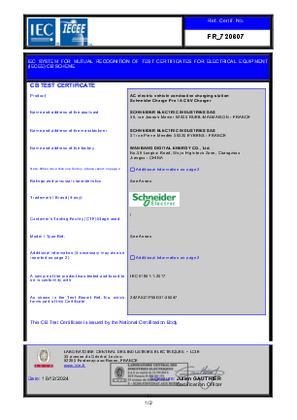

Declaration of Conformity
-
Firmware

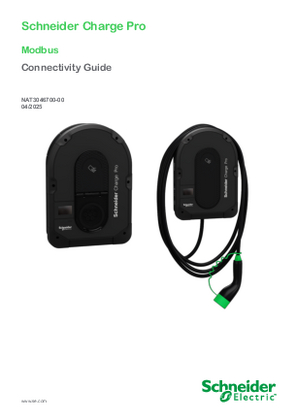

Schneider Charge Pro Modbus Connectivity Guide
VERSION
1.0
DATE
03 May 2025
REVISION
1.0
Schneider Charge Pro Cybersecurity Guide
VERSION
1.2
DATE
03 May 2025
REVISION
1.2

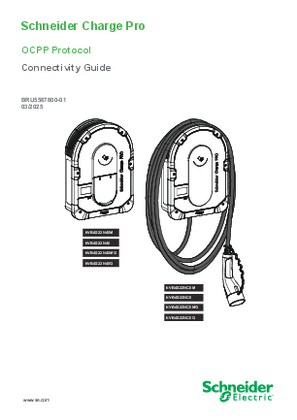

Schneider Charge Pro OCPP Protocol Connectivity Guide
VERSION
1.1
DATE
03 May 2025
REVISION
1.1
Schneider Charge Pro T2S Replacement Guide
VERSION
1.1
DATE
18 Mar 2025
REVISION
1.1

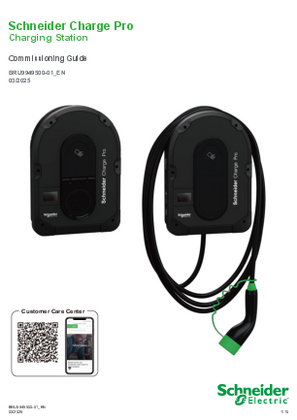

Schneider Charge Pro Commissioning Guide
VERSION
1.1
DATE
03 May 2025
REVISION
1.1

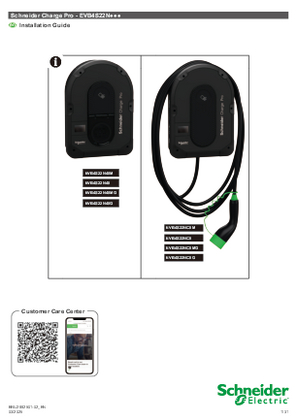

Schneider Charge Pro Installation Guide
