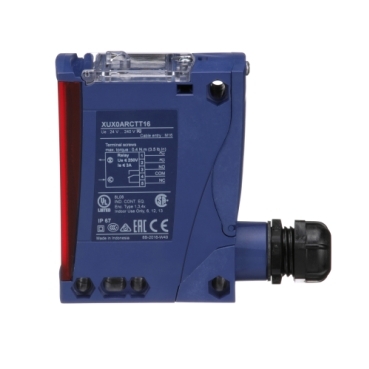

OsiSense XU, Photo Electric Sensor Universal SN 0 TO

Item Number: XUX0ARCTT16

Where To Buy

Datasheet

Download

Product Dimensions

Width31 mm

Height92 mm

Depth77 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3389110168068	-

Specifications

Design

Range of product

Telemecanique Photoelectric sensors XU

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Cable entry

1 entry for M16 x 1.5 cable gland, cable outer diameter: 7-10 mm

Electrical durability

500000 cycles, cos f = 1 , operating rate <60 cyc/mn="" at="" 250="">
500000 cycles, cos f = 0.4 , operating rate <60 cyc/mn="" at="" 250="">

Depth

77 mm

Height

92 mm

Width

31 mm

Net weight

0.2 kg

Product certifications

Ambient air temperature for operation

-25...55 °C

Ambient air temperature for storage

-40...70 °C

IP degree of protection

IP65 double insulation conforming to IEC 60529
IP67 double insulation conforming to IEC 60529

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Environmental Disclosure

ENVPEP111233EN

Circularity Profile

ENVEOLI111209EN

California proposition 65

WARNING: This product can expose you to chemicals including: Diisononyl phthalate (DINP), which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Material

Material

plastic

Others

Package 1 Bare Product Quantity

Series name

general purpose multimode

Electronic sensor type

photo-electric sensor

Sensor name

XUX

Sensor design

compact 92 x 71

Detection system

multimode

Sensing range

> 0...40 m

Type of output signal

discrete

Supply circuit type

AC/DC

Wiring technique

5-wire

Discrete output function

1 NO or 1 NC programmable

Electrical connection

screw-clamp terminals, 1 x 1.5 mm² or 1 x 0.75 mm² with adaptor

Product specific application

Emission

infrared diffuse
infrared diffuse with background suppression
infrared thru beam
red polarised reflex

[Sn] nominal sensing distance

11 m polarised reflex need reflector XUZC50
40 m thru beam need a transmitter XUX0ARCTT16T
2 m diffuse
1.3...1.3 m diffuse with background suppression

Enclosure material

PBT

Lens material

PMMA

Maximum sensing distance

15 m polarised reflex
3 m diffuse
60 m thru beam
1.3 m diffuse with background suppression

Output type

relay

Add on output

with alarm output, <= 100="" ma="" with="" overload="" and="" short-circuit="">

Status LED

1 LED (green) for supply
1 LED (red) for instability
1 LED (yellow) for output state

[Us] rated supply voltage

24...240 V AC/DC

Switching capacity in mA

0.5 A (cos φ = 0.4 for 0.5 million cycles at 1 operating cycle per second at 250 V)
3 A (cos φ = 1 for 0.5 million cycles at 1 operating cycle per second at 250 V)

Switching frequency

<= 20="">

Maximum voltage drop

<1.5 v="" (closed="">

Maximum power consumption in W

2 W AC/DC

Time delay range

0.02...15 s monostable, on-delay or off-delay (programmable) delay

Maximum delay first up

200 ms

Maximum delay response

25 ms

Maximum delay recovery

25 ms

Setting-up

self-teaching

Vibration resistance

7 gn, amplitude = +/- 1.5 mm (f = 10-55 Hz) conforming to IEC 60068-2-6

Shock resistance

30 gn (duration = 11 ms) conforming to IEC 60068-2-27

Unit Type of Package 1

PCE

Number of Units in Package 1

Package 1 Height

13.0 cm

Package 1 Width

9.5 cm

Package 1 Length

4.0 cm

Package 1 Weight

209.0 g

Unit Type of Package 2

P06

Number of Units in Package 2

176

Package 2 Height

45.0 cm

Package 2 Width

60.0 cm

Package 2 Length

80.0 cm

Package 2 Weight

49.9 kg

Unit Type of Package 3

S02

Number of Units in Package 3

Package 3 Height

15.0 cm

Package 3 Width

30.0 cm

Package 3 Length

40.0 cm

Package 3 Weight

06 Oct 2022

REVISION

-----

DOWNLOAD (ZIP) 374.2 KB

ZIP

English

VERSION

1.1

DATE

03 Feb 2022

REVISION

-----

DOWNLOAD (ZIP) 1.2 MB

Colour ()
