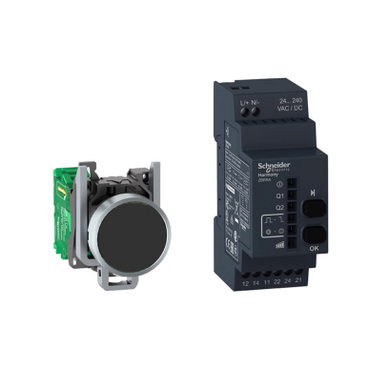

Harmony XB5R, Wireless push button and configurable receiver with 10 colored caps, metal, Ø22, 24...240 V AC/DC

Back to ø22 Harmony® XB5 Plastic & XB4 Metal Wireless & Batteryless Pushbuttons Home Harmony XB5R ø22 Harmony® XB5 Plastic & XB4 Metal Wireless & Batteryless Pushbuttons

Harmony XB5R, Wireless push button and configurable receiver with 10 colored caps, metal, Ø22, 24...240 V AC/DC

Harmony XB5R, Wireless push button and configurable receiver with 10 colored caps, metal, Ø22, 24...240 V AC/DC

Item Number: XB4RFA02

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range of product

Harmony XB4R

Product or component type

wireless and batteryless package

Warranty

18 months

Physical

Transmission frequency

  • 2405 MHz for transmitter
  • 2405 MHz for receiver

Control type

wireless and batteryless push-button Ø 22 mm assembled on fixing collar

Communication port protocol

Zigbee conforming to IEEE 802.15.4

Number of channels

1

Product certifications

  • GOST
  • CCC
  • CSA
  • UL
  • C-Tick

Marking

CE

Standards

  • EN/IEC 60947-1
  • EN/IEC 60947-5-1
  • CSA C22.2 No 14
  • UL 508

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

X

California proposition 65

WARNING: This product can expose you to chemicals including: Nickel compounds, which is known to the State of California to cause cancer, and Di-isodecyl phthalate (DIDP), which is known to the State of California to cause birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 Bare Product Quantity

1

Device short name

XB4R

Head material

metal

Level or class

5M00G7W

Antenna type

omnidirectional

Type of receiver

programmable receiver (2 relays)

[Us] rated supply voltage

24...240 V AC/DC 50/60 Hz

Kit composition

  • 1 diameter: 22 mm
  • 1 push-button head diameter: 22 mm
  • 1 receiver
  • 1 set of caps
  • 1 fixing collars
  • 1 transmitter

Status LED

  • 1 LED green for power ON
  • 2 LEDs green for relay ON
  • 2 LEDs green for function mode
  • 1 LED green and yellow for reception signal

Max power consumption in W

1 mW

Modulation Technique

O-QPSK

Bandwidth

5 MHz

Antenna gain

0 dBi

Customizable

no

Customizable

0

Compatibility code

XB4R

[Us] rated supply voltage

24...240 V

Radio agreement

  • ANATEL
  • FCC
  • RSS
  • ARIB T66
  • ICASA
  • SRRC

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

9.200 cm

Package 1 Width

10.500 cm

Package 1 Length

10.800 cm

Package 1 Weight

264.000 g

Unit Type of Package 2

S03

Number of Units in Package 2

16

Package 2 Height

30.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

4.459 kg

WEEE

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
