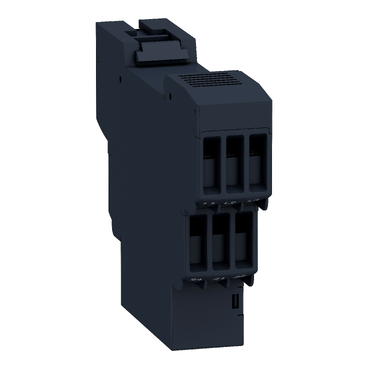

Item Number: RM17TG20

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Harmony Control Relays

Product or component type

3-phase control relay

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Connections - terminals

screw connectors

[In] rated current

5 A

Marking

CE

Insulation resistance

  • > 500 MOhm at 500 V DC conforming to IEC 60255-5
  • > 500 MOhm at 500 V DC conforming to IEC 60664-1

Connections - terminals

  • screw terminals, 1 x 0.5...1 x 4 mm² (AWG 20...AWG 11) solid without cable end
  • screw terminals, 2 x 0.5...2 x 2.5 mm² (AWG 20...AWG 14) solid without cable end
  • screw terminals, 1 x 0.2...1 x 2.5 mm² (AWG 24...AWG 12) flexible with cable end
  • screw terminals, 2 x 0.2...2 x 1.5 mm² (AWG 24...AWG 16) flexible with cable end

Local signalling

LED (yellow) for relay ON

Mounting support

35 mm symmetrical DIN rail conforming to EN/IEC 60715

Electrical durability

10000 cycles

Mechanical durability

30000000 cycles

Width

17.5 mm

Net weight

0.13 kg

Standards

EN/IEC 60255-1

Product certifications

  • GOST
  • C-Tick
  • UL
  • CSA
  • GL

Ambient air temperature for storage

-40...70 °C

Ambient air temperature for operation

-20...50 °C

Relative humidity

95 % at 55 °C conforming to IEC 60068...2-30

IP degree of protection

  • IP20 (terminals) conforming to IEC 60529
  • IP30 (casing) conforming to IEC 60529

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

X

Environmental Disclosure

ENVPEP1504008EN

Circularity Profile

ENVEOLI1504008EN

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Package 1 Bare Product Quantity

1

Relay type

control relay

Product specific application

for 3-phase supply

Relay name

RM17TG

Relay monitored parameters

  • phase sequence
  • phase failure detection (2 or more phase cut)

Time delay type

without

Switching capacity in VA

1250 VA

Measurement range

208...440 V voltage AC

Contacts type and composition

2 C/O

[Uc] control circuit voltage

208...440 V

Maximum switching voltage

  • 250 V AC
  • 250 V DC

Minimum switching current

10 mA at 5 V DC

Supply voltage limits

183...484 V AC

Control circuit voltage limits

- 12 % + 10 % Un

Power consumption in VA

0...22 VA at 400 V AC 50 Hz

Voltage detection threshold

< 100="" v="">

Control circuit frequency

50...60 Hz +/- 10 %

Output contacts

2 C/O

Nominal output current

5 A

Measurement voltage limits

183...484 V AC

Run-up delay at power-up

650 ms

Voltage range

183...484 V

Response time

<= 130="" ms="" (in="" the="" event="" of="" a="">

Overvoltage category

III conforming to IEC 60664-1

[Ui] rated insulation voltage

400 V conforming to IEC 60664-1

Supply frequency

50/60 Hz +/- 10 %

Operating position

any position without derating

Tightening torque

0.6...1 N.m conforming to IEC 60947...1

Housing material

self-extinguishing plastic

Operating rate

<= 360="" operations/hour="" full="">

Utilisation category

  • AC-12 conforming to IEC 60947-5-1
  • AC-13 conforming to IEC 60947-5-1
  • AC-14 conforming to IEC 60947-5-1
  • AC-15 conforming to IEC 60947-5-1
  • DC-12 conforming to IEC 60947-5-1
  • DC-13 conforming to IEC 60947-5-1

Safety reliability data

  • B10d = 850000
  • MTTFd = 924.6 years

Compatibility code

RM17

Electromagnetic compatibility

  • emission standard for industrial environments conforming to EN/IEC 61000-6-4
  • emission standard for residential, commercial and light-industrial environments conforming to EN/IEC 61000-6-3
  • immunity for industrial environments conforming to EN/IEC 61000-6-2

Directives

  • 73/23/EEC - low voltage directive
  • 89/336/EEC - electromagnetic compatibility

Vibration resistance

  • 0.35 mm (f= 5-57.6 Hz) conforming to IEC 60068-2-6
  • 1 gn (f= 57.6-150 Hz) conforming to IEC 60255-21-1

Shock resistance

15 gn for 11 ms conforming to IEC 60255-21-1

Pollution degree

3 conforming to IEC 60664-1

Dielectric test voltage

2 kV, 1 min AC 50 Hz

Non-dissipating shock wave

4 kV

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

2.700 cm

Package 1 Width

7.800 cm

Package 1 Length

9.700 cm

Package 1 Weight

98.000 g

Unit Type of Package 2

S02

Number of Units in Package 2

48

Package 2 Height

15.000 cm

Package 2 Width

30.000 cm

Package 2 Length

40.000 cm

Package 2 Weight

5.150 kg

Unit Type of Package 3

P06

Number of Units in Package 3

768

Package 3 Height

75.000 cm

Package 3 Width

60.000 cm

Package 3 Length

80.000 cm

Package 3 Weight

87.204 kg
