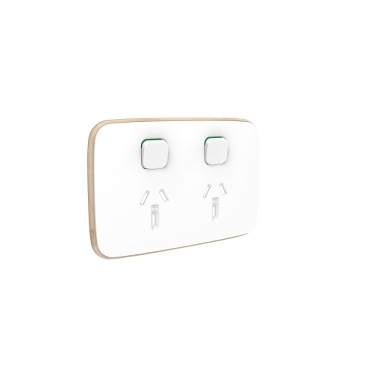

Clipsal Iconic Essence Double Power Point Skin Horizontal Mount, 250V, 10A

Arctic White | Clipsal Iconic Essence Double Power Point Skin Horizontal Mount, 250V, 10A

Clipsal Iconic Essence Double Power Point Skin Horizontal Mount, 250V, 10A

Item Number: E3025C-AW

This Iconic Essence double Power Point Skin snaps to Iconic grid plate 3025G. This is due to the simple clip-on system, enabling you to conveniently change skins, once the initial grid plate has been installed by a qualified electrician.

Datasheet

Product Dimensions

Width icon

Width131.0 mm

Height icon

Height85.0 mm

Depth icon

Depth9.0 mm

Barcode

Qty UoM EAN Colour
-
-
-
Iconic Essence Skins
Iconic Essence Skins Vertical and Horizontal
Iconic Essence Skins Flatlay

Specifications

Design

Range

Clipsal Iconic

Aesthetic name

Iconic Essence

Product or component type

cover frame

Colour tint

  • cover frame: arctic white (AW)
  • edge: birch

Product destination

switched socket

Sustainable offer status

Green Premium product

Physical

Type of packing

polybag

Quantity per set

set of 10

Range compatibility

Clipsal Iconic switched socket

Device mounting

flush

Number of rocker

2

Number of power socket outlets

2

[In] rated current

10 A

Installation direction

horizontal

Fixing mode

clip-on

Height

85.0 mm

Width

131.0 mm

Depth

9.0 mm

Net weight

0.03 kg

Ambient air temperature for storage

0...45 °C

Ambient air temperature for operation

0...45 °C

Relative humidity

10...95 %

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP1607004EN

Material

Material

birch timber: cover frame

Others

Package 1 Bare Product Quantity

1

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

1.0 cm

Package 1 Width

8.46 cm

Package 1 Length

12.98 cm

Package 1 Weight

32.0 g
Show all specifications
Clipsal Iconic Essence Skin in Bedroom

Range

Natural Curves. Clever Customisation.

With smooth round wooden curves, Iconic Essence has an elegantly natural air. Its real timber finish set the benchmark for quality and style in residential products, enhancing any living space.

As part of the innovative Clipsal Iconic range once grid plates are installed by a qualified electrician, Iconic skins can be changed at any time. Uplift the look of standard fans, light dimmers, light sensors, wall switches or power points, simply and safely.

From standard switches and power points, to simple smart home functionality, Iconic is the new standard in modern living for every home.
