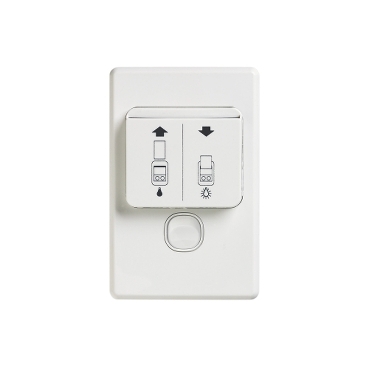

Access Card Switch, 250VAC, 16A, Suits 1 x 16A Circuit, Classic C2000 Series

White Electric | Access Card Switch, 250VAC, 16A, Suits 1 x 16A Circuit, Classic C2000 Series

Access Card Switch, 250VAC, 16A, Suits 1 x 16A Circuit, Classic C2000 Series

Item Number: C2033CC1NX-WE

Retail
$396.41
RRP (Inc. GST)
Colour White Electric (WE)
  • White Electric 1 PCE

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Classic Series C2000

Product brand

Clipsal

Surface finish

glossy

Physical

Device presentation

basic element with full cover plate

Actuator

access card

Local signalling

neon

[Ue] rated operational voltage

250 V AC

Rated current

10 A

Marking

without marking

Others

Package 1 Weight

0.001 kg
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • CAD Files and Packs

  • Product Brochures

  • Product Data Sheets

  • Technical Leaflet

  • Installation Instruction

  • Specifications

  • Certificates (MSDS)

  • Corporate Marketing

Frequently Asked Questions

hide show

What is the cover for a C2033CC1?

The cover for a C2033CC1 is a C2033CCXC-BA.



Where can I purchase cards for the Card Switches, for example 2033CC1?

As these cards are generally customised for users they are not supplied by us. They need to be sourced from companies that sell credit card sized cards, for an example CardsPrint - (08) 8132 2800

2033CC1 Room Access Card Operated Switch, 250VAC, 16A, Series 2000
The 2000 series keytag switches and room access card operated switches are the ideal form of energy management for hotels, motels and other locations where power can be left on unnecessarily. Inserting the keytag or card into the switch activates selected circuits to operate lighting, air-conditioning, television, radio and other appliances. Circuits to refrigerators and other equipment that needs to continually run are not connected to the switches. Removing the keytag or card automatically cuts off power to all of the circuits to significantly reduce power wastage. Several models are available in the range, including versions with neons. All Keytag and Room Access Card Operated Switches are 250V, except for the 6200KT.

Some of the key features are:
  • Access card operated switches 2000 series
  • one way/Two way switch
  • 116 mm Length x 76 mm Width x 36mm Depth
  • 84 mm mounting centre
  • Card Dimensions – 85.60mm(W) X 53.98mm(H) X 0.80mm(D)
For Further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=2033CC1



What is the card for 2033cc1 credit card switch

This is not done by clipsal but an outside contractor please  contact PLACARD in NSW on 02 9588 8200 Contact Helen Perente

Can I purchase a replacement mechanism for the 2033CC & C2033CC credit card switches?

Yes, a 2036VC-4-WE  16A mechanism would suit the 2033CC & C2033CC ving card switches.

For further information please visit https://www.clipsal.com/Trade/search-results?q=2036VC-4-WE.

Can mechs in part number 2036CC3N be changed?

Yes. Mechs cant be changed in part number 2036CC3N.

What is the cover plate for the C2032VTB?

The cover plate is a standard 2 gang cover plate, C2032C-xx
