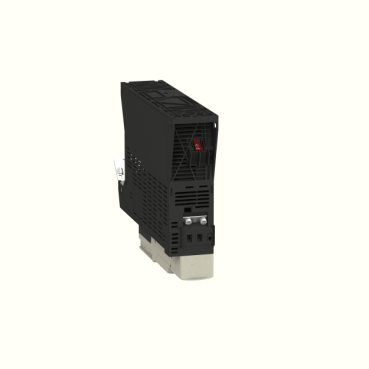

Altivar 32 200V 2,2 Kw Variable Speed Drives

Altivar 32 200V 2,2 Kw Variable Speed Drives

Altivar 32 200V 2,2 Kw Variable Speed Drives

Item Number: ATV32HU22M2

Product Dimensions

Width icon

Width60 mm

Height icon

Height325 mm

Depth icon

Depth245 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Warranty

18 months

Range of product

Altivar 32

Product or component type

variable speed drive

Product destination

  • synchronous motors
  • asynchronous motors

Physical

Local signalling

  • 1 LED red for drive voltage
  • 1 LED green for CANopen run
  • 1 LED red for CANopen error
  • 1 LED red for drive fault

Supply

internal supply for reference potentiometer (1 to 10 kOhm): 10.5 V DC +/- 5 %, <10 ma,="" protection="" type:="" overload="" and="" short-circuit="">

Protection type

  • input phase breaks: drive
  • overcurrent between output phases and earth: drive
  • overheating protection: drive
  • short-circuit between motor phases: drive
  • thermal protection: drive

Communication port protocol

  • Modbus
  • CANopen

Connector type

1 RJ45 (on front face) for Modbus/CANopen

Width

60 mm

Height

325 mm

Depth

245 mm

Net weight

2.9 kg

Standards

  • EN/IEC 61800-3
  • EN 61800-3 environments 2 category C2
  • EN 55011 class A group 1
  • EN/IEC 61800-5-1
  • EN 61800-3 environments 1 category C2

Product certifications

  • C-Tick
  • NOM 117
  • UL
  • CSA
  • GOST

Marking

CE

IP degree of protection

IP20 conforming to EN/IEC 61800-5-1

Relative humidity

  • 5...95 % without condensation conforming to IEC 60068...2-3
  • 5...95 % without dripping water conforming to IEC 60068...2-3

Ambient air temperature for operation

  • -10...50 °C without derating
  • 50...60 °C with derating factor

Ambient air temperature for storage

-25...70 °C

Function available

-

Others

Line current

  • 20.1 A for 240 V 1 phase 2.2 kW / 3 hp
  • 23.9 A for 200 V 1 phase 2.2 kW / 3 hp

Apparent power

4.8 kVA at 240 V 1 phase 2.2 kW / 3 hp

Prospective line Isc

1 kA for 1 phase

Nominal output current

11 A at 4 kHz 240 V 2.2 kW / 3 hp

Maximum transient current

16.5 A for 60 s 2.2 kW / 3 hp

Output frequency

0.0005...0.599 kHz

Nominal switching frequency

4 kHz

Switching frequency

2...16 kHz adjustable

Speed range

1...100 for asynchronous motor in open-loop mode

Speed accuracy

+/- 10 % of nominal slip 0.2 Tn to Tn

Torque accuracy

+/- 15 %

Transient overtorque

170...200 %

Braking torque

<= 170="" %="" with="" braking="">

Asynchronous motor control profile

  • voltage/frequency ratio, 5 points
  • voltage/frequency ratio - Energy Saving, quadratic U/f
  • flux vector control without sensor - Energy Saving, NoLoad law
  • flux vector control without sensor, standard
  • voltage/frequency ratio, 2 points

Synchronous motor control profile

vector control without sensor

Regulation loop

adjustable PID regulator

Motor slip compensation

  • automatic whatever the load
  • not available in voltage/frequency ratio (2 or 5 points)
  • adjustable 0...300 %

Output voltage

<= power="" supply="">

Noise level

43 dB conforming to 86/188/EEC

Insulation

electrical between power and control

Electrical connection

  • screw terminal, clamping capacity: 4 mm², AWG 10 (power supply)
  • screw terminal, clamping capacity: 0.5...1.5 mm², AWG 18...AWG 14 (control)
  • removable screw terminals, clamping capacity: 1.5...2.5 mm², AWG 14...AWG 12 (motor/braking resistor)

Tightening torque

  • 0.5 N.m, 4.4 lb/ft (control)
  • 0.7 N.m, 7.1 lb/ft (motor/braking resistor)
  • 0.6 N.m, 5.3 lb/ft (power supply)

Analogue input number

3

Analogue input type

  • AI1 voltage: 0...10 V DC, impedance: 30000 Ohm, resolution 10 bits
  • AI2 bipolar differential voltage: +/- 10 V DC, impedance: 30000 Ohm, resolution 10 bits
  • AI3 current: 0...20 mA (or 4-20 mA, x-20 mA, 20-x mA or other patterns by configuration), impedance: 250 Ohm, resolution 10 bits

Sampling duration

  • 2 ms (AI1, AI2, AI3) - analog input(s)
  • 2 ms (AO1) - analog input(s)

Response time

  • LI1...LI6 8 ms, tolerance +/- 0.7 ms for logic output(s)
  • R1A, R1B, R1C 2 ms for relay output(s)
  • R2A, R2C 2 ms for relay output(s)

Accuracy

  • +/- 0.2 % (AI1, AI2, AI3) for a temperature of -10...60 °C
  • +/- 0.5 % (AI1, AI2, AI3) for a temperature of 25 °C
  • +/- 1 % (AO1) for a temperature of 25 °C
  • +/- 2 % (AO1) for a temperature of -10...60 °C

Linearity error

  • +/- 0.2...0.5 % of maximum value (AI1, AI2, AI3)
  • +/- 0.3 % (AO1)

Analogue output number

1

Analogue output type

  • AO1 software-configurable current 0...20 mA, impedance: 800 Ohm, resolution 10 bits
  • AO1 software-configurable voltage 0...10 V, impedance: 470 Ohm, resolution 10 bits

Discrete output number

3

Discrete output type

  • configurable relay logic: (R1A, R1B, R1C) NO/NC - 100000 cycles
  • configurable relay logic: (R2A, R2B) NO - 100000 cycles
  • logic: (LO)

Minimum switching current

5 mA at 24 V DC for configurable relay logic

Maximum switching current

  • R1: 3 A at 250 V AC resistive load, cos phi = 1
  • R1: 4 A at 30 V DC resistive load, cos phi = 1
  • R1, R2: 2 A at 250 V AC inductive load, cos phi = 0.4
  • R1, R2: 2 A at 30 V DC inductive load, cos phi = 0.4
  • R2: 5 A at 250 V AC resistive load, cos phi = 1
  • R2: 5 A at 30 V DC resistive load, cos phi = 1

Discrete input number

7

Discrete input type

  • programmable (sink/source) (LI1...LI4)24...30 V DC, with level 1 PLC
  • programmable as pulse input 20 kpps (LI5)24...30 V DC, with level 1 PLC
  • switch-configurable PTC probe (LI6)24...30 V DC
  • safe torque off (STO)24...30 V DC - 1500 Ohm

Discrete input logic

  • negative logic (sink) (LI1...LI6), > 19 V (state 0), < 13="" v="" (state="">
  • positive logic (source) (LI1...LI6), < 5="" v="" (state="" 0),=""> 11 V (state 1)

Acceleration and deceleration ramps

  • U
  • ramp switching
  • deceleration ramp automatic stop DC injection
  • S
  • CUS
  • deceleration ramp adaptation
  • linear

Braking to standstill

by DC injection

Physical interface

2-wire RS 485 for Modbus

Transmission frame

RTU for Modbus

Type of polarization

no impedance for Modbus

Number of addresses

  • 1...127 for CANopen
  • 1...247 for Modbus

Method of access

slave CANopen

Electromagnetic compatibility

  • 1.2/50 µs - 8/20 µs surge immunity test, level 3 conforming to IEC 61000-4-5
  • conducted radio-frequency immunity test, level 3 conforming to IEC 61000-4-6
  • electrical fast transient/burst immunity test, level 4 conforming to IEC 61000-4-4
  • electrostatic discharge immunity test, level 3 conforming to IEC 61000-4-2
  • radiated radio-frequency electromagnetic field immunity test, level 3 conforming to IEC 61000-4-3
  • voltage dips and interruptions immunity test conforming to IEC 61000-4-11

Option card

  • communication card for CANopen daisy chain
  • communication card for CANopen open style
  • communication card for DeviceNet
  • communication card for EtherNet/IP
  • communication card for Profibus DP V1

Pollution degree

2 conforming to EN/IEC 61800-5-1

Vibration resistance

  • 1 gn (f = 13-200 Hz) conforming to EN/IEC 60068-2-6
  • 1.5 mm peak to peak (f = 3-13 Hz) conforming to EN/IEC 60068-2-6

Shock resistance

15 gn for 11 ms conforming to EN/IEC 60068-2-27

Operating altitude

  • <= 1000="" m="" without="">
  • 1000...2000 m with current derating 1 % per 100 m

Operating position

vertical +/- 10 degree

Package 1 Weight

2.713 kg

Package 1 Height

1.000 dm

Package 1 width

2.750 dm

Package 1 Length

3.250 dm

Product specific application

complex machines

Assembly style

with heat sink

Component name

ATV32

EMC filter

Class C2 EMC filter integrated

Network number of phases

1 phase

[Us] rated supply voltage

200...240 V - 15...10 %

Supply voltage limits

170...264 V

Supply frequency

50...60 Hz - 5...5 %

Network frequency

47.5...63 Hz

Motor power kW

2.2 kW at 200...240 V

Motor power hp

3 hp at 200...240 V
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Installation Instruction

  • Product Environmental

  • End of Life Manual

  • Operating Manuals

  • eTechPub

  • Certificates (MSDS)

  • GSD files

  • EDS Files

Frequently Asked Questions

hide show

What input is designed for a bipolar -10v to +10v input on the ATV32 drives?

Issue:
Analog Input designed for a bipolar -10v to +10v input on the ATV32 drives

Product Line:
Altivar ATV32

Environment:
All

Cause:
AI2 is default for -10v to +10v input.

Resolution:
IO menu AI2 set up

 Bipolar analog input 0 ± 10 V (maximum voltage ± 30 V)

The + or - polarity of the voltage on AI2 affects the direction of the set point and therefore the direction of operation.

• Impedance 30 kÙ
• Resolution: 10 bits
• Precision ±0.5% in 50/60 Hz for 25 °C, ±0.2% in 50/60 Hz for –10 to +60 °C at Äè = 60°C,
• Linearity ± 0.2% (max. ± 0.5%), of max. value
• Sampling time 2 ms
