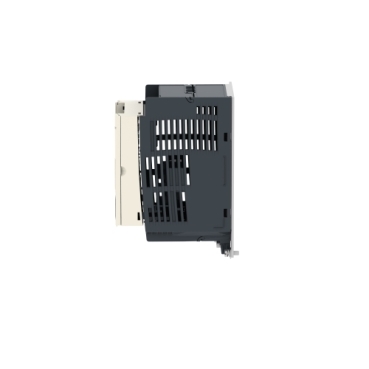

Altivar 12 Variable Speed Drive ATV12, 0.37kW, 0.55hp, 200..240V, 1ph

Altivar 12 Variable Speed Drive ATV12, 0.37kW, 0.55hp, 200..240V, 1ph

Altivar 12 Variable Speed Drive ATV12, 0.37kW, 0.55hp, 200..240V, 1ph

Item Number: ATV12H037M2

Retail
$479.77
RRP (Inc. GST)

Product Dimensions

Width icon

Width72 mm

Height icon

Height143 mm

Depth icon

Depth121.2 mm

See full specifications

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Altivar 12

Product or component type

variable speed drive

Product destination

asynchronous motors

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

Quantity per set

set of 1

Communication port protocol

Modbus

IP degree of protection

IP20 without blanking plate on upper part

Connector type

1 RJ45 (on front face) for Modbus

Supply

  • internal supply for reference potentiometer: 5 V DC (4.75-5.25 V), <10 mA, protection type: overload and short-circuit protection
  • internal supply for logic inputs: 24 V DC (20.4-28.8 V), <100 mA, protection type: overload and short-circuit protection
    • Protection type

    • line supply overvoltage
    • line supply undervoltage
    • overcurrent between output phases and earth
    • overheating protection
    • short-circuit between motor phases
    • against input phase loss in three-phase
    • thermal motor protection via the drive by continuous calculation of I²t
      • Marking

        CE

        Height

        143 mm

        Width

        72 mm

        Depth

        121.2 mm

        Net weight

        0.7 kg

        Product certifications

      • GOST
      • C-Tick
      • UL
      • CSA
      • NOM
        • Relative humidity

        • 5-95 % without condensation conforming to IEC 60068-2-3
        • 5-95 % without dripping water conforming to IEC 60068-2-3
          • Ambient air temperature for storage

            -25-70 °C

            Ambient air temperature for operation

          • -10-40 °C protective cover from the top of the drive removed
          • 40-60 °C with current derating 2.2 % per °C
            • EU RoHS Directive

              Pro-active compliance (Product out of EU RoHS legal scope)

              Mercury free

              Yes

              RoHS exemption information

              Yes

              China RoHS Regulation

              X

              Environmental Disclosure

              ENVPEP090201EN

              Circularity Profile

              ENVEOLI100204EN

              Others

              Product specific application

              simple machine

              Assembly style

              with heat sink

              Component name

              ATV12

              EMC filter

              integrated

              Built-in fan

              without

              Network number of phases

              1 phase

              [Us] rated supply voltage

              200...240 V - 15...10 %

              Motor power kW

              0.37 kW

              Motor power hp

              0.55 hp

              Line current

            • 5.9 A at 200 V
            • 4.9 A at 240 V
              • Speed range

                1-20

                Transient overtorque

                150-170 % of nominal motor torque depending on drive rating and type of motor

                Asynchronous motor control profile

              • sensorless flux vector control
              • voltage/frequency ratio (V/f)
              • quadratic voltage/frequency ratio
                • Noise level

                  0 dB

                  Supply frequency

                  50/60 Hz +/- 5 %

                  Physical interface

                  2-wire RS 485 for Modbus

                  Transmission frame

                  RTU for Modbus

                  Transmission rate

                • 4800 bit/s
                • 9600 bit/s
                • 19200 bit/s
                • 38400 bit/s
                  • Number of addresses

                    1-247 for Modbus

                    Communication service

                  • read holding registers (03) 29 words
                  • write single register (06) 29 words
                  • write multiple registers (16) 27 words
                  • read/write multiple registers (23) 4/4 words
                  • read device identification (43)
                    • Prospective line Isc

                      1 kA

                      Continuous output current

                      2.4 A at 4 kHz

                      Maximum transient current

                      3.6 A for 60 s

                      Speed drive output frequency

                      0.5-400 Hz

                      Nominal switching frequency

                      4 kHz

                      Switching frequency

                    • 2...16 kHz adjustable
                    • 4...16 kHz with derating factor
                      • Braking torque

                        up to 70 % of nominal motor torque without braking resistor

                        Motor slip compensation

                      • adjustable
                      • preset in factory
                        • Output voltage

                          200...240 V 3 phases

                          Electrical connection

                          terminal, clamping capacity: 3.5 mm², AWG 12 (L1, L2, L3, U, V, W, PA, PC)

                          Tightening torque

                          0.8 N.m

                          Insulation

                          electrical between power and control

                          Analogue input number

                          1

                          Analogue input type

                        • configurable current AI1 0...20 mA 250 Ohm
                        • configurable voltage AI1 0...10 V 30 kOhm
                        • configurable voltage AI1 0...5 V 30 kOhm
                          • Discrete input number

                            4

                            Discrete input type

                            programmable LI1...LI4 24 V 18...30 V

                            Discrete input logic

                          • negative logic (sink), > 16 V (state 0), < 10 V (state 1), input impedance 3.5 kOhm
                          • positive logic (source), 0...< 5 V (state 0), > 11 V (state 1)
                            • Sampling duration

                            • 20 ms, tolerance +/- 1 ms for logic input
                            • 10 ms for analogue input
                              • Linearity error

                                +/- 0.3 % of maximum value for analogue input

                                Analogue output number

                                1

                                Analogue output type

                              • AO1 software-configurable voltage: 0...10 V, impedance: 470 Ohm, resolution 8 bits
                              • AO1 software-configurable current: 0...20 mA, impedance: 800 Ohm, resolution 8 bits
                                • Discrete output number

                                  2

                                  Discrete output type

                                • logic output LO+, LO-
                                • protected relay output R1A, R1B, R1C 1 C/O
                                  • Minimum switching current

                                    5 mA at 24 V DC for logic relay

                                    Maximum switching current

                                  • 2 A 250 V AC inductive cos phi = 0.4 L/R = 7 ms logic relay
                                  • 2 A 30 V DC inductive cos phi = 0.4 L/R = 7 ms logic relay
                                  • 3 A 250 V AC resistive cos phi = 1 L/R = 0 ms logic relay
                                  • 4 A 30 V DC resistive cos phi = 1 L/R = 0 ms logic relay
                                    • Acceleration and deceleration ramps

                                    • linear from 0 to 999.9 s
                                    • S
                                    • U
                                      • Braking to standstill

                                        by DC injection, <30 s

                                        Frequency resolution

                                      • analog input: converter A/D, 10 bits
                                      • display unit: 0.1 Hz
                                        • Time constant

                                          20 ms +/- 1 ms for reference change

                                          Operating position

                                          vertical +/- 10 degree

                                          Functionality

                                          basic

                                          Specific application

                                          commercial equipment

                                          Discrete and process manufacturing

                                          Power range

                                          0-0.5 kW at 200-240 V 1 phase

                                          Motor starter type

                                          variable speed drive

                                          Electromagnetic compatibility

                                        • electrical fast transient/burst immunity test level 4 conforming to EN/IEC 61000-4-4
                                        • electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
                                        • immunity to conducted disturbances level 3 conforming to EN/IEC 61000-4-6
                                        • radiated radio-frequency electromagnetic field immunity test level 3 conforming to EN/IEC 61000-4-3
                                        • surge immunity test level 3 conforming to EN/IEC 61000-4-5
                                        • voltage dips and interruptions immunity test conforming to EN/IEC 61000-4-11
                                          • Electromagnetic emission

                                          • radiated emissions environment 1 category C2 conforming to EN/IEC 61800-3 2...16 kHz shielded motor cable
                                          • conducted emissions with integrated EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5 m
                                          • conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 2...12 kHz shielded motor cable <5 m
                                          • conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 2, 4 and 16 kHz shielded motor cable <10 m
                                          • conducted emissions with additional EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <20 m
                                          • conducted emissions with additional EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <50 m
                                          • conducted emissions with additional EMC filter environment 2 category C3 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <50 m
                                            • Vibration resistance

                                            • 1 gn (f = 13-200 Hz) conforming to EN/IEC 60068-2-6
                                            • 1.5 mm peak to peak (f = 3-13 Hz) - drive unmounted on symmetrical DIN rail - conforming to EN/IEC 60068-2-6
                                              • Shock resistance

                                                15 gn conforming to EN/IEC 60068-2-27 for 11 ms

                                                Operating altitude

                                              • > 1000...2000 m with current derating 1 % per 100 m
                                              • <= 1000 m without derating
                                                • Unit Type of Package 1

                                                  PCE

                                                  Number of Units in Package 1

                                                  1

                                                  Package 1 Weight

                                                  1.028 kg

                                                  Package 1 Height

                                                  12.6 cm

                                                  Package 1 width

                                                  20 cm

                                                  Package 1 Length

                                                  18.7 cm

                                                  Unit Type of Package 2

                                                  P06

                                                  Number of Units in Package 2

                                                  45

                                                  Package 2 Weight

                                                  59.53 kg

                                                  Package 2 Height

                                                  80 cm

                                                  Package 2 width

                                                  80 cm

                                                  Package 2 Length

                                                  60 cm

                                                  WEEE

                                                  The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
                                                  Show all specifications

                                                  Documents & downloads

                                                  hide show
                                                  Filter items
                                                  • All

                                                  • Product Brochures

                                                  • CAD Files and Packs

                                                  • Technical Data Catalogues

                                                  • Installation Instruction

                                                  • Product Environmental

                                                  • End of Life Manual

                                                  • Handout

                                                  • Data Bulletin

                                                  • Operating Manuals

                                                  • System User Guide

                                                  • Certificates (MSDS)

                                                  • eTechPub

                                                  • DTM Files

                                                  Frequently Asked Questions

                                                  hide show

                                                  Do we have CAD drawings for the ATV312 drives?

                                                  Issue:
                                                  Getting CAD drawings for the ATV312 drives

                                                  Product Line:
                                                  Altivar ATV312 and ATV31

                                                  Environment:
                                                  All

                                                  Cause:
                                                  Cad drawings

                                                  Resolution:
                                                  Use the following link to the CAD Drawings Catalog.

                                                  https://www.schneider-electric.us/sites/us/en/support/product-support-resources/3d-cad.page


                                                  CTA-ID : 2061638

                                                  What is a good source of information for the ATV12?

                                                  Issue:
                                                  Looking for ATV12 information

                                                  Product Line:
                                                  Altivar 12

                                                  Environment:
                                                  All models and serial numbers

                                                  Cause:
                                                  Information is needed for installation and programming.

                                                  Resolution:
                                                  User manual is document number BBV28581.  This manual includes instructions for installing the drive, connecting the control wiring, programming and troubleshooting.
                                                  https://www.schneider-electric.us/en/download/document/BBV28581/

                                                  What is the din rail mounting kit part number for the ATV312?

                                                  Issue:
                                                  Part number for ATV312 Din rail mounting kit

                                                  Product Line:
                                                  ATV312

                                                  Environment:
                                                  All

                                                  Cause:
                                                  Desire to utilize din mounting kit option

                                                  Resolution:
                                                  The part numbers need to order the mounting kit for this drive are VW3A9804 and VW3A9805.

                                                  VW3A9804 covers the following range of drives: ATV312....
                                                  018M2, H037M2, H055M2, H075M2, H018M3, H037M3, H055M3, H075M3

                                                  VW3A9805 covers the following range of drives: ATV312....
                                                  HU11M2, HU15M2, HU11M3, HU15M3, HU22M3, H037N4, H055N4, H075N4, HU11N4, HU15N4, H075S6, HU15S6
                                                  Note: The din rail mounting kits are only available for the above drives.

                                                  Note: Other drives not list above do not have a din rail kit.

                                                  What input is designed for a bipolar -10v to +10v input on the ATV32 drives?

                                                  Issue:
                                                  Analog Input designed for a bipolar -10v to +10v input on the ATV32 drives

                                                  Product Line:
                                                  Altivar ATV32

                                                  Environment:
                                                  All

                                                  Cause:
                                                  AI2 is default for -10v to +10v input.

                                                  Resolution:
                                                  IO menu AI2 set up

                                                   Bipolar analog input 0 ± 10 V (maximum voltage ± 30 V)

                                                  The + or - polarity of the voltage on AI2 affects the direction of the set point and therefore the direction of operation.

                                                  • Impedance 30 kÙ
                                                  • Resolution: 10 bits
                                                  • Precision ±0.5% in 50/60 Hz for 25 °C, ±0.2% in 50/60 Hz for –10 to +60 °C at Äè = 60°C,
                                                  • Linearity ± 0.2% (max. ± 0.5%), of max. value
                                                  • Sampling time 2 ms

                                                  Can the ATV312 be powered by an external 24V only?

                                                  Issue:
                                                  Powering the ATV312 by an external 24Vdc only

                                                  Product Line:
                                                  Altivar 312

                                                  Environment:
                                                  All

                                                  Cause:
                                                  Installation/programming

                                                  Resolution:
                                                  No, this drive must have line voltage applied. The voltage must be within -15% to +10% of the rated line voltage.



                                                  Are drive thermal output ratings available in BTU?

                                                  Issue:
                                                  Are drive thermal output ratings available in BTU?

                                                  Product Line:
                                                  Altivar Machines

                                                  Environment:
                                                  All

                                                  Cause:
                                                  Documentation

                                                  Resolution:
                                                  Heat dissipation is listed in Watts only.
                                                  See the drive catalog or installation guide for details on the heat dissipation.
                                                  1 watt is approximately 3.41 BTU/h
                                                  1000 BTU/h is approximately 293 W
