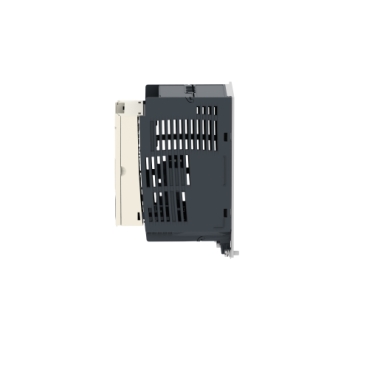

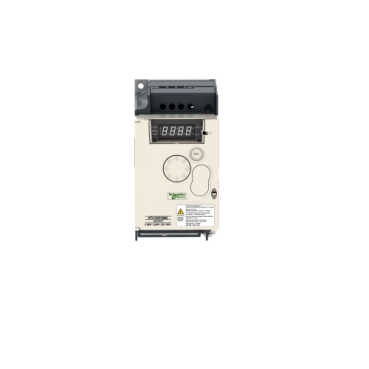

Product specific application
simple machine
Design of frequency changer
U converter
Supply frequency
50/60 Hz +/- 5 %
[Us] rated supply voltage
200...240 V - 15...10 %
[Us] rated supply voltage
200...240 V
Relative symmetric mains voltage tolerance
10 %
Nominal output current
1.4 A
Number of output phases
3
Number of inputs, bidirectional, not potential-free
0
Number of inputs, potential-free
0
Optical interface present
false
Physical interface
2-wire RS 485
Continuous output current
1.4 A at 4 kHz
Method of access
server Modbus serial
Speed drive output frequency
0.5...400 Hz
Sampling duration
- 20 ms, tolerance +/- 1 ms for logic input
- 10 ms for analogue input
Linearity error
+/- 0.3 % of maximum value for analogue input
Frequency resolution
- analog input: converter A/D, 10 bits
- display unit: 0.1 Hz
Time constant
20 ms +/- 1 ms for reference change
Transmission rate
- 9.6 kbit/s
- 19.2 kbit/s
- 38.4 kbit/s
Number of addresses
1...247
Data format
8 bits, configurable odd, even or no parity
Communication service
- read holding registers (03) 29 words
- write single register (06) 29 words
- write multiple registers (16) 27 words
- read/write multiple registers (23) 4/4 words
- read device identification (43)
Type of polarization
no impedance
Number of HW interfaces parallel
0
Number of HW interfaces industrial Ethernet
0
Number of HW interfaces PROFINET
0
Number of HW interfaces serial RS232
0
Number of HW interfaces serial RS422
0
Number of HW interfaces serial RS485
1
Number of HW interfaces serial TTY
0
Number of HW interfaces USB
0
Number of HW interfaces other
0
Supporting protocol for AS-Interface Safety at Work
false
Supporting protocol for ASI
false
Supporting protocol for SUCONET
false
Supporting protocol for BACnet
false
Supporting protocol for CAN
false
Supporting protocol for Data-Highway
false
Supporting protocol for DeviceNet
false
Supporting protocol for DeviceNet Safety
false
Supporting protocol for EtherNet/IP
false
Supporting protocol for Foundation Fieldbus
false
Supporting protocol for INTERBUS
false
Supporting protocol for INTERBUS-Safety
false
Supporting protocol for KNX
false
Supporting protocol for LON
false
Supporting protocol for MODBUS
true
Supporting protocol for other bus systems
false
Supporting protocol for PROFIBUS
false
Supporting protocol for PROFINET CBA
false
Supporting protocol for PROFINET IO
false
Supporting protocol for PROFIsafe
false
Supporting protocol for SafetyBUS P
false
Supporting protocol for SERCOS
false
Supporting protocol for TCP/IP
false
4 quadrant operation possible
false
Asynchronous motor control profile
- voltage/frequency ratio (V/f)
- sensorless flux vector control
- quadratic voltage/frequency ratio
Maximum output frequency
4 kHz
Transient overtorque
150...170 % of nominal motor torque depending on drive rating and type of motor
Acceleration and deceleration ramps
- U
- linear from 0 to 999.9 s
- S
Motor slip compensation
- preset in factory
- adjustable
Switching frequency
- 2...16 kHz adjustable
- 4...16 kHz with derating factor
Nominal switching frequency
4 kHz
Braking to standstill
by DC injection
Brake chopper integrated
false
Maximum associated fuse rating
12.5 A
Line current
- 3.4 A at 100 V (heavy duty)
- 2.8 A at 120 V (heavy duty)
Maximum output voltage
240 V
Nominal output power
180.0 W
Apparent power
0.7 kVA at 240 V (heavy duty)
Maximum transient current
- 2.1 A during 60 s (heavy duty)
- 2.3 A during 2 s (heavy duty)
Capacity of DC link
220.0 µF
Network frequency
50...60 Hz
Relative symmetric network frequency tolerance
5 %
Prospective line Isc
1 kA
1 phase low current possible
false
Base load current at high overload
1.4 A
Application in domestic and commercial area permitted
false
Application in industrial area permitted
true
EMC limit value (complied)
true
Power loss per device current dependent
18.0 W
Power loss static current independent
8.0 W
Power dissipation in W
natural: 18.0 W
With safety function Safely Limited Speed (SLS)
false
With safety function Safe brake management (SBC/SBT)
false
With safety function Safe Operating Stop (SOS)
false
With safety function Safe Position (SP)
false
With safety function Safe programmable logic
false
With safety function Safe Speed Monitor (SSM)
false
With safety function Safe Stop 1 (SS1)
false
With sft fct Safe Stop 2 (SS2)
false
With safety function Safe torque off (STO)
false
With safety function Safely Limited Position (SLP)
false
With safety function Safe Direction (SDI)
false
Operating element present
true
Tightening torque
0.8 N.m
Insulation
electrical between power and control
Operating altitude
- > 1000...2000 m with current derating 1 % per 100 m
- <= 1000="" m="" without="">
Operating position
vertical +/- 10 degree
Assembly style
on base plate
Electromagnetic compatibility
- electrical fast transient/burst immunity test level 4 conforming to EN/IEC 61000-4-4
- electrostatic discharge immunity test level 3 conforming to EN/IEC 61000-4-2
- immunity to conducted disturbances level 3 conforming to EN/IEC 61000-4-6
- radiated radio-frequency electromagnetic field immunity test level 3 conforming to EN/IEC 61000-4-3
- surge immunity test level 3 conforming to EN/IEC 61000-4-5
- voltage dips and interruptions immunity test conforming to EN/IEC 61000-4-11
Environmental class (during operation)
- class 3C3 according to IEC 60721-3-3
- class 3S2 according to IEC 60721-3-3
Environmental class (during storage)
- class 1C3 according to IEC 60721-3-1
- class 1S2 according to IEC 60721-3-1
Environmental class (during transport)
- class 2C3 according to IEC 60721-3-2
- class 2S1 according to IEC 60721-3-2
Maximum acceleration under shock impact (during operation)
150 m/s² at 11 ms
Maximum acceleration under shock load (during storage)
150 m/s² at 11 ms
Maximum acceleration under shock load (during transport)
150 m/s² at 11 ms
Maximum acceleration under vibratory load (during storage)
10 m/s² at 13...200 Hz
Maximum acceleration under vibratory load (during transport)
10 m/s² at 13...200 Hz
Maximum acceleration under vibrational stress (during operation)
10 m/s² at 13...200 Hz
Maximum deflection under vibratory load (during storage)
1.5 mm at 2...13 Hz
Maximum deflection under vibratory load (during transport)
1.5 mm at 2...13 Hz
Maximum deflection under vibratory load (during operation)
1.5 mm at 2...13 Hz
Overvoltage category
class III
Regulation loop
adjustable PID regulator
Electromagnetic emission
- radiated emissions environment 1 category C2 conforming to EN/IEC 61800-3 2...16 kHz shielded motor cable
- conducted emissions with integrated EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 2, 4, 8, 12 and 16 kHz shielded motor cable <5>
- conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 2...12 kHz shielded motor cable <5>
- conducted emissions with integrated EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 2, 4 and 16 kHz shielded motor cable <10>
- conducted emissions with additional EMC filter environment 1 category C1 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <20>
- conducted emissions with additional EMC filter environment 1 category C2 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <50>
- conducted emissions with additional EMC filter environment 2 category C3 conforming to EN/IEC 61800-3 4...12 kHz shielded motor cable <50>
Vibration resistance
- 1 gn (f = 13-200 Hz) conforming to EN/IEC 60068-2-6
- 1.5 mm peak to peak (f = 3-13 Hz) - drive unmounted on symmetrical DIN rail - conforming to EN/IEC 60068-2-6
Shock resistance
15 gn conforming to EN/IEC 60068-2-27 for 11 ms
Ambient air transport temperature
-25...70 °C
Unit Type of Package 1
PCE
Number of Units in Package 1
1
Unit Type of Package 2
P06
Number of Units in Package 2
45
Package 2 Weight
52.78 kg
WEEE
The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
