Soft Starter 6A 110 480V

Soft Starter 6A 110 480V

Soft Starter 6A 110 480V

Item Number: ATS01N106FT

Retail
$872.71
RRP (Inc. GST)

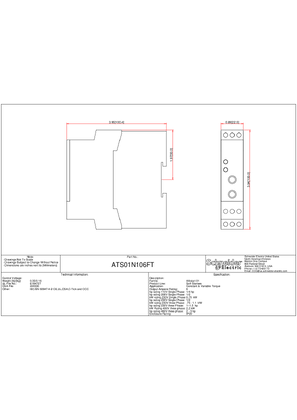

Product Dimensions

Width icon

Width23 mm

Height icon

Height100 mm

Depth icon

Depth100 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Warranty

18 months

Range of product

Altistart 01

Product or component type

soft starter

Product destination

asynchronous motors

Physical

California proposition 65

WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Circularity Profile

ENVEOLI100217EN

Mercury free

Yes

REACh free of SVHC

Yes

REACh Regulation

Free of Substances of Very High Concern above the threshold

China RoHS Regulation

X

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

RoHS exemption information

Yes

Toxic heavy metal free

Yes

Function available

integrated bypass

Marking

CE

Height

100 mm

Width

23 mm

Depth

100 mm

Net weight

0.16 kg

Standards

EN/IEC 60947-4-2

Product certifications

  • C-Tick
  • CCC
  • CSA
  • B44.1-96/ASME A17.5 for starter wired to the motor delta terminal
  • UL
  • GOST
    • IP degree of protection

      IP20

      Relative humidity

      5-95 % without condensation or dripping water conforming to EN/IEC 60068-2-3

      Ambient air temperature for operation

    • -10-40 °C (without derating)
    • 40-50 °C (with current derating of 2 % per °C)
      • Ambient air temperature for storage

        -25-70 °C conforming to EN/IEC 60947-4-2

        Others

        Number of Units in Package 1

        1

        Number of Units in Package 2

        36

        Package 1 Height

        2.5 cm

        Package 1 Length

        10.5 cm

        Package 1 Weight

        178 g

        Package 1 width

        10.3 cm

        Package 2 Height

        15 cm

        Package 2 Length

        40 cm

        Package 2 Weight

        6.778 kg

        Package 2 width

        30 cm

        Unit Type of Package 1

        PCE

        Unit Type of Package 2

        S02

        WEEE

        The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

        Product specific application

        simple machine

        Device short name

        ATS01

        Network number of phases

        1 phase

        [Us] rated supply voltage

        110...480 V - 10...10 %

        Motor power kW

      • 3 kW, 3 phases at 400 V
      • 0.75 kW, 3 phases at 230 V
      • 1.1 kW, 3 phases at 230 V
      • 2.2 kW, 3 phases at 400 V
      • 0.75 kW, 1 phase at 230 V
        • Motor power hp

        • 1 hp, 3 phases at 230 V
        • 2 hp, 3 phases at 460 V
        • 3 hp, 3 phases at 460 V
        • 0.5 hp, 3 phases at 210 V
        • 1.5 hp, 3 phases at 230 V
          • IcL starter rating

            6 A

            Utilisation category

            AC-53B conforming to EN/IEC 60947-4-2

            Current consumption

            30 A at nominal load

            Type of start

            start with voltage ramp

            Power dissipation in W

          • 1 W at full load and at end of starting
          • 31 W in transient state
            • Assembly style

              with heat sink

              Supply voltage limits

              99-528 V

              Supply frequency

              50...60 Hz - 5...5 %

              Network frequency

              47.5...63 Hz

              Output voltage

              <= power supply voltage

              [Uc] control circuit voltage

            • 110 V AC +/- 10 % at 30 mA
            • 24 V AC/DC +/- 10 % at 25 mA
            • 240 V AC +/- 10 % at 65 mA
              • Starting time

              • 1 s / 100
              • 5 s / 20
              • adjustable from 1 to 5 s
                • Starting torque

                  30...80 % of starting torque of motor connected directly on the line supply

                  Discrete output current

                • 2 A DC-13
                • 3 A AC-15
                  • Tightening torque

                    0.8-0.8 N.m

                    Electrical connection

                  • cage type connector - rigid 1 2.5 mm² AWG 14 control circuit
                  • cage type connector - flexible with cable end 2 0.75 mm² AWG 18 power circuit
                  • cage type connector - flexible without cable end 2 1 mm² AWG 17 control circuit
                  • cage type connector - flexible without cable end 2 1 mm² AWG 17 power circuit
                  • cage type connector - rigid 1 2.5 mm² AWG 14 power circuit
                  • cage type connector - rigid 2 1 mm² AWG 17 control circuit
                  • cage type connector - rigid 2 1 mm² AWG 17 power circuit
                  • cage type connector - flexible with cable end 1 2.5 mm² AWG 14 control circuit
                  • cage type connector - flexible with cable end 1 2.5 mm² AWG 14 power circuit
                  • cage type connector - flexible without cable end 1 2.5 mm² AWG 14 control circuit
                  • cage type connector - flexible without cable end 1 2.5 mm² AWG 14 power circuit
                  • cage type connector - flexible with cable end 2 0.75 mm² AWG 18 control circuit
                    • Operating position

                      vertical +/- 10 degree

                      Compatibility code

                      ATS01N1

                      Power range

                    • 0.55-1 kW at 200-240 V 3 phases
                    • 1.1-2 kW at 380-440 V 3 phases
                    • 0.55-1 kW at 200-240 V 1 phase
                    • 1.1-2 kW at 200-240 V 3 phases
                    • 2.2-3 kW at 380-440 V 3 phases
                      • Motor starter type

                        soft starter

                        Electromagnetic compatibility

                      • conducted and radiated emissions level B conforming to CISPR 11
                      • immunity to electrical transients level 4 conforming to IEC 61000-4-4
                      • immunity to radiated radio-electrical interference level 3 conforming to IEC 61000-4-3
                      • micro-cuts and voltage fluctuation conforming to IEC 61000-4-11
                      • voltage/current impulse level 3 conforming to IEC 61000-4-5
                      • conducted and radiated emissions level B conforming to IEC 60947-4-2
                      • damped oscillating waves level 3 conforming to IEC 61000-4-12
                      • electrostatic discharge level 3 conforming to IEC 61000-4-2
                      • EMC immunity conforming to EN 50082-1
                      • EMC immunity conforming to EN 50082-2
                      • harmonics conforming to IEC 1000-3-2
                      • harmonics conforming to IEC 1000-3-4
                      • immunity to conducted interference caused by radio-electrical fields level 3 conforming to IEC 61000-4-6
                        • Pollution degree

                          2 conforming to EN/IEC 60947-4-2

                          Vibration resistance

                        • 1 gn (f= 13-150 Hz) conforming to EN/IEC 60068-2-6
                        • 1.5 mm peak to peak (f= 3-13 Hz) conforming to EN/IEC 60068-2-6
                          • Shock resistance

                            15 gn for 11 ms conforming to EN/IEC 60068-2-27

                            Operating altitude

                          • <= 1000 m without derating
                          • > 1000 m with current derating of 2.2 % per additional 100 m
                            • Show all specifications

                              Documents & downloads

                              hide show
                              Filter items
                              • All

                              • CAD Files and Packs

                              • Product Brochures

                              • Technical Data Catalogues

                              • End of Life Manual

                              • Installation Instruction

                              • Certificates (MSDS)

                              • eTechPub

                              • Declaration of Conformity

                              Frequently Asked Questions

                              hide show

                              Does the ATS01 come with a shorting contactor?

                              Issue:
                              Does the ATS01 have an internal shorting contactor?

                              Product Line:
                              Altistat 01

                              Environment:
                              All

                              Cause:
                              N/A

                              Resolution:
                              All of the ALTISTART 01 models, except the ATS01N103FT and ATS01N106FT, have an internal shorting contactor as standard.

                              Is the LH4N still available?

                              Issue:
                              LH4N availability

                              Product Line:
                              LH4N

                              Environment:
                              All models and all serial numbers

                              Cause:
                              Customer was looking for purchasing the LH4N112RT7.

                              Resolution:
                              No, the LH4N soft starter is obsolete. Please replace with the appropriate ATS01 or ATS22 soft starter. Consider application needs and features of currently-offered products.




                              Are Softstarters acceptable for use in a Fire Pump applications?

                              Issue:
                              Softstarters for use in a Fire Pump applications

                              Product line:
                              Altistart 22 48 ATS22 ATS48

                              Environment:
                              all

                              Cause:
                              Fire pump systems typically require the motors to run until they fail, without faulting the controller

                              Resolution:
                              No. The softstarters are not rated for Fire pump requirements and does not meet the requirements.


                              Does Schneider offer a soft start for a single phase motor?

                              Issue:
                              Soft start for a single phase motor?

                              Product Line:
                              ATS01

                              Environment:
                              All

                              Cause:
                              Needs a soft starter for a single phase motor.

                              Resolution:
                              Yes, but the offering is limited.  The ATS01N1**FT products are rated for single phase motors up to 2HP at 240V and 1/2HP at 120V.
                              See the attachment beginning on page 34.  Reference page 40 for part number selection.

                              What are the adjustment ranges for the dials on an ATS01N2..LU/QN/RT?

                              For both the START TIME and STOP TIME dials, setpoint A is 1second and setpoint E is 10seconds.  There is a linear relationship from A to E setpoints.
                              For the INITIAL VOLTAGE dial, setpoint A is 30% and setpoint E is 80% of full voltage.  There is a linear relationship from A to E setpoints.


                              How can ATS01N2...LU, QN, RT be started without control wires?

                              Issue:
                              Start ATS01N2...LU, QN, RT without control wires.

                              Product Line:
                              Altistart 01 Soft Starters with "LU", "QN", or "RT" at the end of the part number

                              Environment:
                              All

                              Cause:
                              Need to start the Soft Starter with power up

                              Resolution:
                              Add a jumper between terminals LI+ and LI2.  This provides a continuous RUN command.  When power is supplied to the ATS01, it will immediately begin to start the motor.  Removing power will result in a freewheel stop.
