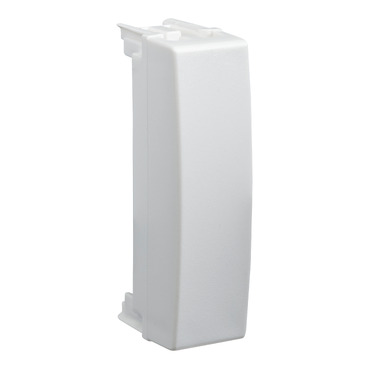

Blanking Module, S1, Half

White Electric | Blanking Module, S1, Half

Blanking Module, S1, Half

Item Number: 80MHB-WE

Retail
$8.76
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • 800 Modena Series
  • PDL
    • Product brand

      Clipsal

      Product or component type

      blank module

      Sustainable offer status

      Green Premium product

      Physical

      REACh Regulation

      Free of Substances of Very High Concern above the threshold

      EU RoHS Directive

      Compliant

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      Environmental Disclosure

      ENVPEP120506EN

      Others

      Number of Units in Package 1

      1

      Package 1 Height

      25 mm

      Package 1 Length

      50 mm

      Package 1 width

      15 mm

      Unit Type of Package 1

      PCE

      Package 1 Weight

      4 g
      Show all specifications

      Frequently Asked Questions

      hide show

      Do Modena switches come with out LED

      All come with LED , ( Except the 80MH) but you do not need to connect the LED  if you do not want the LED indicator.

      For more information on this product range please visit the Clipsal web site on the supplied link https://www.clipsal.com/Trade/search-results?q=80m

      What is the part number for a VGA outlet and plate for the Modena series?

      The part number for a VGA outlet and plate for the Modena series is - 80MVGA , 80MB & M8080H

      For further information , visit links below:-
      https://www.clipsal.com/Trade/search-results?q=80MVGA
      https://www.clipsal.com/Trade/search-results?q=80MB
      https://www.clipsal.com/Trade/search-results?q=M8080H
      User-added image
      User-added image
      User-added image

      What is the cut out size for the SAE_UE_MS_CDBWE occupancy sensor

      Cut out size is 65mm, diameter 80mm, overall depth 52mm

      Do you have dinensions of the 80MLB?

      This is a S6 size blank module for the Modena switch plate and is 74.8mm x 44.8mm.


      For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=80MLB


      How far is the 755PFM recessed?

      The recess on our 755PFM is 80mm.

      How do I wire a 80MIL in a 3 way intermediate switching application?

      Please see the attached document for Wiring Configuration for 80MIL in a 3 way intermediate switching application in the Modena/ Strato Series.

      Show More
