Plugs and Extension Sockets, Straight Plugs - IP66, 250V 20A - 3 Flat Pins

Back to Straight Plugs - IP66 Home 56 Series Straight Plugs - IP66

Electric Orange | Plugs and Extension Sockets, Straight Plugs - IP66, 250V 20A - 3 Flat Pins

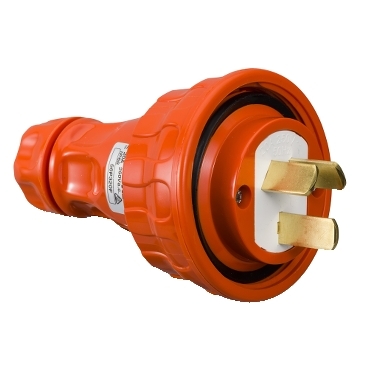

Plugs and Extension Sockets, Straight Plugs - IP66, 250V 20A - 3 Flat Pins

Item Number: 56P320F-EO

Retail
$114.77
RRP (Inc. GST)
Colour Electric Orange (EO)
  • Electric Orange 1 PCE
  • Grey 1 PCE
  • Resistant Orange 1 PCE
Where To Buy

Product Dimensions

Width icon

Width67 mm

Height icon

Height67 mm

Depth icon

Depth112.5 mm

See full specifications

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all

Specifications

Design

Range

Clipsal - 56 Series

Range of product

Series 56

Product brand

Clipsal

Product or component type

plug

Device application

power supply

Colour

orange (RAL 2004)

Market segment

  • industry
  • utility
  • small commercial

      • Sustainable offer status

      Green Premium product

      Physical

      [In] rated current

      20 A

      [Ue] rated operational voltage

      250 V AC 50 Hz conforming to EN 60309-2

      Outlet standard

      industrial

      Connections - terminals

      screw terminal 1-6 mm²

      Wire stripping length

    • 45 mm
    • 12 mm

        • Cable entry

        cable gland

        Net weight

        0.3 kg

        Height

        67 mm

        Width

        67 mm

        Depth

        112.5 mm

        Standards

        AS/NZS 3123

        IP degree of protection

        IP66 conforming to AS 60529

        Ambient air temperature for operation

        -25-75 °C

        EU RoHS Directive

        Compliant

        Mercury free

        Yes

        RoHS exemption information

        Yes

        China RoHS Regulation

        Product out of China RoHS scope. Substance declaration for your information

        Environmental Disclosure

        ENVPEP121020EN

        Material

        Material

        plastic

        Material

        polycarbonate: housing

        Contacts material

        pins: brass

        Others

        Poles description

        1P + N + E

        Voltage colour

        blue

        Plug, socket category

        low voltage

        Thread type

        M20

        Plug, socket, control station shape

        straight

        Pin arrangement

        F

        Duration

        6 h

        Targeted country

        Australia

        Package 1 Weight

        0.124 kg

        Package 1 Height

        70 mm

        Package 1 width

        70 mm

        Package 1 Length

        120 mm
        Show all specifications
