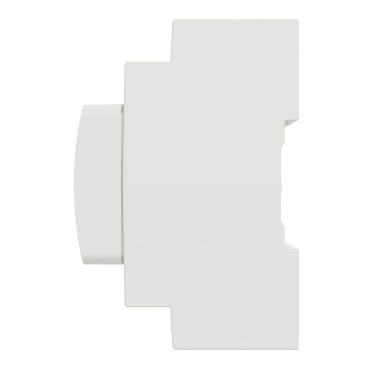

Clipsal C-Bus DALI-2 Gateway, SpaceLogic C-Bus 6DIN

Clipsal C-Bus DALI-2 Gateway, SpaceLogic C-Bus 6DIN

Clipsal C-Bus DALI-2 Gateway, SpaceLogic C-Bus 6DIN

Item Number: 5502CDGP230

Product Dimensions

Width icon

Width108 mm

Height icon

Height93 mm

Depth icon

Depth63 mm

Datasheet

Specifications

Design

Sustainable offer status

Green Premium product

Range

SpaceLogic C-Bus

Product brand

Schneider Electric

Product or component type

gateway

Device application

light control

Physical

Communication port protocol

  • C-Bus
  • DALI-2

[In] rated current

0.23 A

Communication network type

  • C-Bus
  • DALI

Connector type

2 RJ45

Connections - terminals

screw terminals

Mounting support

DIN rail

Width

108 mm

Height

93 mm

Depth

63 mm

Ambient air temperature for operation

-5...45 °C

Ambient air temperature for storage

-20...80 °C

Product certifications

  • RCM
  • CE

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

X

Environmental Disclosure

ENVPEP2005001EN

Circularity Profile

ENVEOLI2005001EN

Others

Module configuration

programmed with C-Bus software

Software name

SpaceLogic C-Bus Commission

Input voltage

110...240 V AC at 50/60 Hz

Supply maximum power

13 W

Input current

0.25 A

Total number of 18 mm modules

6

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Weight

0.359 kg

Package 1 Height

9.8 cm

Package 1 width

11.1 cm

Package 1 Length

15.6 cm

Unit Type of Package 2

CAR

Number of Units in Package 2

10

Package 2 Weight

4.15 kg

Package 2 Height

30 cm

Package 2 width

30 cm

Package 2 Length

40 cm

WEEE

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Product name

DALI-2 gateway
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • Technical Leaflet

  • Installation Instruction

  • Product Environmental

  • End of Life Manual

  • Operating Manuals

  • Certificates (MSDS)

  • Declaration of Conformity

  • Corporate Marketing

  • Software - Archive

  • Software - Release

Frequently Asked Questions

hide show

What is the difference between (5502DAL + DCDALCIP250-2) Old Vs 5502CDGP230 New Hardware

Dimension wise - 8 module vs 6 modules wides

Built in DALI PS - Separate vs Build in dali power supply

C-Bus Current draw 32mA vs 20 mA

Dali Compatible Vs Dali2 Compliance…


Dali 5200DAL vs 5502DCGP230


What are the dimension of C-BUS DALI Gateway2 5502CDGP230

It’s 6 DIN module wide, Din Mount

Dimension is 93x108x63



Dimension of 5502CDGP230

Can the new Dali gateway 5502DCGP230 firmware be updated?

Yes installer can update the firmware of the device in the field

  1. without disconnecting any connections
  2. without removing the unit from the switchboard

A USB device port is provided on the front cover of the device as a power source.

Using Space logic C-Bus Commission software > Firmware update in Space logic

Front image of 5502DCGP230


What’s new in the C-Bus Toolkit 1.16.0?

What’s new in the C-Bus Toolkit 1.16.0?
eDLT Firmware v1.6.0
The eDLT Firmware Updater has been updated to include firmware version 1.6.0. This incorporates support for eDLT units with the version 3 hardware.
When upgrading firmware on a unit with version 3 hardware, the updater must perform additional steps to complete the upgrade and so the upgrade process may take longer than it does for units with version 1 or 2 hardware.
A new option called Force font data installation has been added to the eDLT Firmware Updater. When selected, it will force the updater to always update the font data on the unit, even if it is already the same version. When unselected, the updater will skip the font data part of the upgrade if it is already known to be the same version as the new firmware being installed. By default, this option is not selected.

C-Bus – DALI-2 Gateway (5502CDGP230)
This release adds support for newer firmware revisions of the C-Bus – DALI-2 Gateway unit (5502CDGP230) when scanning networks.

SpaceLogic C-Bus Controllers
This release adds support for SpaceLogic C-Bus Network Automation Controller (5500NAC2) and SpaceLogic C-Bus Application Controller (5500AC2) units.

C-Gate 2.11.8


What do the LED Indicators represent on the 5502CDGP230


LED Indicator

LED Indicator listing
LED Indicator Listing

LED indicator Error listings
