Wiser Home Control Mk2

Wiser Home Control Mk2

Wiser Home Control Mk2

Item Number: 5200WHC2

Retail
$1,967.97
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Wiser

Product or component type

system controller

Product compatibility

  • ZigBee device
  • IP device
    • Sustainable offer status

      Green Premium product

      Physical

      Supply

      DC extension cable

      Communication network type

    • C-Bus
    • E-LAN
    • wireless - 2400 kHz conforming to IEEE 802.11b/g/n
      • Connector type

      • USB
      • HDMI
      • RJ45
      • bus
        • Type of cable

          CAT5 category 5e RJ45

          Mounting mode

          free standing

          Length

          219 mm

          Width

          175 mm

          Height

          33.5 mm

          Ambient air temperature for operation

          0-45 °C

          Relative humidity

          10-90 % without condensation

          REACh Regulation

          Reference contains Substances of Very High Concern above the threshold

          REACh free of SVHC

          Yes

          EU RoHS Directive

          Compliant

          Mercury free

          Yes

          RoHS exemption information

          Yes

          China RoHS Regulation

          X

          Environmental Disclosure

          ENVPEP1406036EN

          Circularity Profile

          ENVEOLI1406036EN

          Others

          Device short name

          WHC2

          Ethernet service

        • dynamic DNS
        • DHCP client
          • Network security encrypting

          • WPA2
          • WEP
          • WPA
            • Encryption protocol

              WEP 64

              Clock drift

            • 1 min/month
            • 1 s/1000 years NTP
              • [Us] rated supply voltage

              • input: 24 V DC, <1 A
              • communication bus: 15...36 V DC, <0.036 A
                • Mounting location

                  indoor use only

                  Package 1 Weight

                  1204 g

                  Package 1 Height

                  78 mm

                  Package 1 width

                  295 mm

                  Package 1 Length

                  270 mm
                  Show all specifications

                  Documents & downloads

                  hide show
                  Filter items
                  • All

                  • Product Brochures

                  • CAD Files and Packs

                  • Technical Data Catalogues

                  • Product Environmental

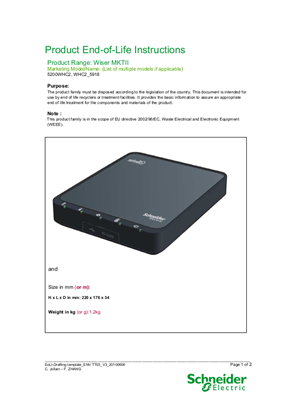

                  • End of Life Manual

                  • Specifications

                  • Application Solutions

                  • Software - Release

                  • Software - Archive

                  Frequently Asked Questions

                  hide show

                  What is the part number for power supply to suit 5200WHC2?

                  The part number for power supply to suit is 5100P24/50.

                  CBUS - Wiser2 - Can you send email via SSL or TLS

                  The Wiser2 does not support SSL natively, so you will not be able to use a web based email account that only supports SSL.

                  You are able to use web based email accounts such as Google's Gmail that also supports TLS - Transport Layer Security.
                  The protocol uses cryptography to provide endpoint authentication and communications privacy over the Internet.

                  The application note attached has been created for a step by step configuration of both the Gmail account and PICED Wiser2 Project.

                  What is the default wireless password for Wiser Home Control

                  The default wireless password is "WiserHomeControl"

                  It should be noted this is only applicable on the original Wiser versions 1 and 1.5. (v1 Cat # 5200PG) (v1.5 Cat # WHC_5918A)

                  Note: This is not applicable to the Wiser 2 model as it does not act as a WIFI Access Point or Router (Cat # 5200WHC2)

                  What are the dimensions for the 5200WHC2 Wiser Home Control?

                  The dimensions for the 5200WHC2 Wiser Home Control are 175mm(W) X 220mm(H) X 32mm(D).
                  Some of the key features are:
                  • Wired Ethernet or wireless client (Wi-Fi) connection to home network
                  • Supports applications including lighting, climate, blinds/curtains, measurement, multi-room audio and security
                  • A physical port connects directly to a C-Bus network with dual internal C-Bus connections
                  • New User Interface (UI)
                  • Includes preconfigured UIs for consistent appearance on all supported devices
                  • Includes preconfigured widgets to provide consistent graphical components across all interfaces
                  • UI can be viewed in a web browser (Flash must be supported), on an iOS device, on an Android device
                  • Supports control on HDMI connected display device using the device’s own hand-held remote control
                  • Supports a dynamic (DHCP) or fixed IP address configuration
                  • Supports many popular Dynamic DNS services
                  • Supports network time protocol (NTP) for accurate time and date retrieval from the Internet
                  • Includes on-board C-Bus Ripple server for use with C-Bus Multi-Room Audio solution (configuration of C-Bus Ripple library and playlist is possible from iOS app only)
                  • Includes a 10-year Lithium battery backup for the Real Time Clock (RTC)
                  • Powered by 24Vd.c. power supply (supplied) or by Power over Ethernet (PoE)
