Clipsal Iconic Switch Plate Skin 6 Gang, Horizontal/Vertical Mount

Vivid White | Clipsal Iconic Switch Plate Skin 6 Gang, Horizontal/Vertical Mount

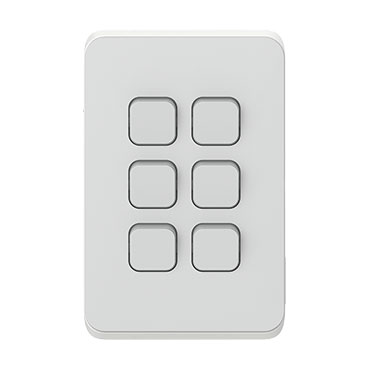

Clipsal Iconic Switch Plate Skin 6 Gang, Horizontal/Vertical Mount

Item Number: 3046C-VW

Build this product i

Retail
$12.46
RRP (Inc. GST)

With six switches which can be mounted either horizontally or vertically, the Clipsal Iconic 6 Gang Switch Plate Skin can help you out when multiple lights (or even exhaust fans and heaters) need to be activated. The skin works in conjunction with the Iconic mech and grid plate system.

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth9 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Clipsal Iconic 3025 exploded view
3043G Rear Perspective
Socket exploded view

Specifications

Design

Range

Clipsal Iconic

Aesthetic name

Iconic

Product or component type

cover frame

Colour tint

vivid white (VW)

Product destination

switch

Surface treatment

untreated

Sustainable offer status

Green Premium product

Physical

Type of packing

polybag

Quantity per set

set of 20

Range compatibility

switch

Device mounting

flush

Number of rocker

6

Installation direction

horizontal/vertical

Fixing mode

clip-on

Height

120 mm

Width

78 mm

Depth

9 mm

Net weight

0.02 kg

Ambient air temperature for operation

0-45 °C

Relative humidity

10-95 %

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Compliant

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP120506EN

Material

Material

  • PC (polycarbonate): skin
  • ABS (acrylonitrile butadiene-styrene): skin
    • Others

      Unit Type of Package 1

      PCE

      Number of Units in Package 1

      1

      Package 1 Weight

      28 g

      Package 1 Height

      5 mm

      Package 1 width

      80 mm

      Package 1 Length

      120 mm
      Show all specifications

      Frequently Asked Questions

      hide show

      What is the max current rating of an ATS22 relay?

      Issue:
      Max current rating of an ATS22 relay.

      Product Line:
      Altistart 22, ATS22

      Environment:
      All

      Cause:
      N/A

      Resolution:
      Max switching capability:
      5A - 250VAC or 30VDC on resistive load (p.f.=1)
      2A - 250VAC or 30VDC on inductive load (p.f=0.4)

      What is the part number for Iconic foxtel TV outlet?

      The part numbers for Iconic Foxtel TV outlet are 3041G + 3041C-** + 40PFM-TN

      3041G Clipsal Iconic - Switch-Grid, Vertical/Horizontal Mount, 1 Gang

      3041C-WY Clipsal Iconic - Skin Switch Plate Cover, Vertical/Horizontal Mount, 1 Gang

      Clipsal Iconic - TV Antenna Socket, 75 Ohm, F-Type

      For further information see:https://www.clipsal.com/Trade/Products/ProductDetail?catno=3041G:https://www.clipsal.com/Trade/Products/ProductDetail?catno=3041C-WYhttps://www.clipsal.com/Trade/search-results?q=40PFM


      What are the causes of an USF fault on ATV61/ATV71 drives?

      Issue:
      Causes of an USF fault on ATV61 drives.

      Product line:
      ATV61, ATV71, Altivar 61, Altuvar 71

      Environment:
      All models

      Cause:
      Undervoltage supply.

      Resolution:
      The USF fault occurs when the DC bus voltage level drops below the threshold set in 1.8 Fault Management > Undervoltage Management > Undervoltage level.

      For N4, 480V drives at factory setting of 480VAC, the threshold is 430VDC on the DC bus or 304VAC on the line terminals.
      For M3, 240V drives at factory setting of 260VAC, the threshold is 230VDC on the DC bus or 163VAC on the line terminals.
      For Y, 575V drives at factory setting of 690VAC, the threshold is 571VAC on the DC bus, or 404VAC on the line terminals.

      Recommendations:
      - Measure the the incoming line to line voltages
      - Compare the line voltage to the Mains Voltage as shown under Menu 1.2 Monitoring, and also the measurement of the DC bus voltage.
      - If the standard line voltage is low, you can adjust the Mains voltage setting.
      - Adjust the Undervoltage time out to compensate for line contactors, or add time delay before a fault would occur.


      How is an ATV61 or ATV71 drive configured for a 2 part dual ramp?

      Issue:
      Configuring an ATV61 or ATV71 drive for 2 part dual ramp

      Product Line:
      Altivar 61 and Altivar 71

      Environment:
      All models, All serial numbers

      Cause:
      Application requires the motor to ramp to a minimum speed in a short amount of time and then ramp from this minimum speed to full speed at a much slower rate.

      Resolution:
      The ATV61 and ATV71 drives have a split ramp function in Menu 1.7APPLICATION FUNCTIONS, Sub-menu RAMP.  Define the acceleration and deceleration in 2 steps, split at a certain output frequency.  The following parameters are involved:

      ACC = Acceleration for the lower part of the ramp.
      DEC = Deceleration for the lower part of the ramp.
      AC2 = Acceleration for the upper part of the ramp.
      DE2 = Deceleration for the upper part of the ramp.
      FRT = Ramp 2 threshold, the speed, in Hz. at which the drive switches between ramp 1 (ACC,DEC) parameters and ramp 2 (AC2,DE2) parameters.

      Example:

      ACC = 10sec
      DEC = 10sec
      AC2 = 60sec
      DE2 = 30sec
      FRT = 30Hz

      When the drive starts the motor with a 60Hz speed reference, it will ramp up from 0Hz to 30Hz in 5sec because ACC = 10s so 0Hz to 30Hz is half of the 10s.  Then, it will ramp up from 30Hz to 60Hz in 30sec because AC2 = 60s.  Total ramp up time is 35sec.   When stopping, it will ramp down from 60Hz to 30Hz in 15sec and then 30Hz to 0Hz in 5sec.  Total ramp down time is 20sec.
      Note that the ACC/AC2 times are defined as time to go from 0Hz to motor rated frequency(FrS) 60Hz.  DEC/DE2 is time to go from FrS to 0Hz.

      Range

      The Clipsal Iconic range is founded on a specialised electrically safe grid plate.
      Once installed by an electrician, it’s safe for anyone to change the skins at any time by simply clipping off the standard skins and snapping on a new design.

      Iconic’s interchangeable standard, Styl and Essence skins provide clever options tailored to suit a homes’ decor or family’s lifestyle.
