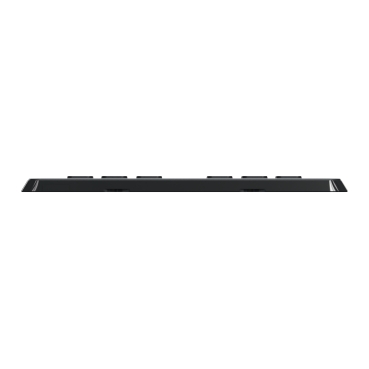

Clipsal Iconic Skin Socket 2 Extra Switch Horizontal Quad, 10A 250V

Extra Black | Clipsal Iconic Skin Socket 2 Extra Switch Horizontal Quad, 10A 250V

Clipsal Iconic Skin Socket 2 Extra Switch Horizontal Quad, 10A 250V

Item Number: 3015-4XXC-XB

Build this product i

Retail
$27.01
RRP (Inc. GST)

Product Dimensions

Width icon

Width78 mm

Height icon

Height120 mm

Depth icon

Depth12 mm

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-
Clipsal Iconic 3025 exploded view
3043G Rear Perspective
Socket exploded view

Specifications

Design

Range

Clipsal Iconic

Aesthetic name

Iconic

Product or component type

cover frame

Colour tint

black

Product destination

switched socket

Surface finish

matt

Surface treatment

untreated

Sustainable offer status

Green Premium product

Physical

Type of packing

polybag

Quantity per set

set of 10

Range compatibility

switched socket

Device mounting

flush

Number of rocker

6

Number of power socket outlets

4

[In] rated current

10 A

Installation direction

horizontal

Fixing mode

clip-on

Height

120 mm

Width

78 mm

Depth

12 mm

Net weight

0.02 kg

Ambient air temperature for operation

0-45 °C

Relative humidity

10-95 %

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP1607004EN

Material

Material

  • PC (polycarbonate): skin
  • ABS (acrylonitrile butadiene-styrene): skin
    • Frequently Asked Questions

      hide show

      Does the 3015/4XXUA come with extra switches?

      No it just has the apertures there, ready for the extra switches.

      What are the mounting centers for the 3015/4XXUA quad outlet with 2 extra switches?

      The mounting centers for the 3015/4XXUA quad outlet with 2 extra switches is 179.8mm.

      What are the mounting centers for the 3015/4XXUAG quad outlet GRID with 2 extra switches?

      The mounting centers for the 3015/4XXUAG quad outlet GRID with 2 extra switches is 179.8mm.
