Fixing Accessories, PVC, Saddle Extension Spacer, 20mm

Electric Orange | Fixing Accessories, PVC, Saddle Extension Spacer, 20mm

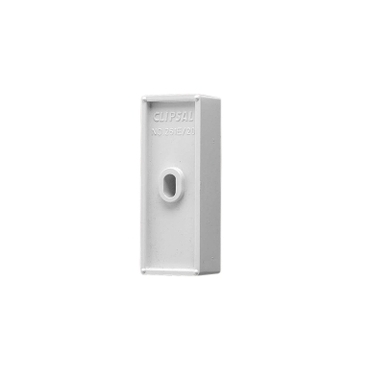

Fixing Accessories, PVC, Saddle Extension Spacer, 20mm

Item Number: 261E20-EO

Retail
N/A
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

REACh Regulation

Free of Substances of Very High Concern above the threshold

REACh free of SVHC

Yes

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Environmental Disclosure

ENVPEP100802EN

Others

Package 1 Weight

0.014 kg
Show all specifications

Frequently Asked Questions

hide show

What is the height of a 261E25?

The 261E25 has a height of 18mm.
For further information please visit https://www.clipsal.com/Trade/Products/ProductDetail?catno=261E25

What are the dimensions for a 261S Saddle Spacer?

The dimensions for a 261S Saddle Spacer are 261S are:

Saddle Spacers
Catalogue Number Size Length (L) Width (W) Centres (CRS.) Standoff (T) Height (H)
261S16 16mm 55mm 21mm 32mm 8mm 14mm
261S20 20mm 61mm 22mm 40mm 8mm 14mm
261S25 25mm 74mm 26mm 48mm 8mm 14mm

Saddles Spacers set a conduit run off the wall 8mm to allow easier cleaning and repainting and to facilitate entry into equipment. They are available in sizes 16mm through 25mm.
Standard colour is Grey (GY), with Orange (EO) also available at extra cost.

For further information please visit www.clipsal.com/Trade/search-results?q=261S




Do you have a cap/ flange to for 20mm conduit?

Yes the part number is 221/20

What size Clipsal saddles are available?

Size       Ctn Qty     Part Code
16mm    50             261/16
20mm   100            261/20
25mm   100            261/25
32mm    50             261/32
40mm    50             261/40
50mm    20             261/50

What are the part numbers for the 25mm PVC saddles and spacers?

The part numbers are 261/25 for the saddles and 261S25 for the spacers.

Some of the key features are:
  • 63mm Length x 20mm Width x 29mm Overall Height
  • 48mm Mounting Centre
For further information please visit https://www.clipsal.com/Trade/search-results?q=261/25





What are the part numbers of slip type expansion couplings?

Slip Type Expansion Couplings are available from 16mm through to 50mm.The part numbers of slip type expansion coupling are as follows:
16mm = 251/16
20mm = 251/20 *
25mm = 251/25 *
32mm = 251/32
40mm = 251/40 *
* = only available in Grey
Where long conduit runs are likely to be exposed to wide variations in temperature, it is recommended that expansion couplings be used at each join. It is not recommended that Slip Type Expansion Couplings be used where the conduit run is exposed to the weather. Standard colour is Grey (GY).
Dimension details are attached.
