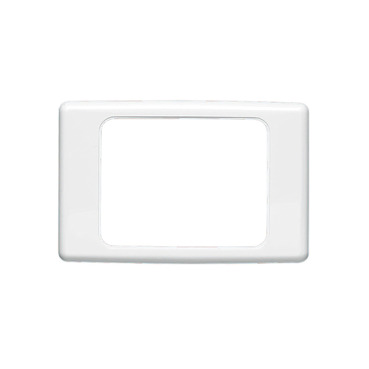

Mounting Blocks and Flanges, Deep Surround to Suit 2000 Series

White Electric | Mounting Blocks and Flanges, Deep Surround to Suit 2000 Series

Mounting Blocks and Flanges, Deep Surround to Suit 2000 Series

Item Number: 2000SM-WE

Retail
$19.83
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Series 2000

Product brand

Clipsal

Sustainable offer status

Green Premium product

Physical

Mounting position

horizontal

Depth

27 mm

Length

118 mm

Width

76 mm

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

RoHS exemption information

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental Disclosure

ENVPEP120506EN

Material

Material

PVC (polyvinyl chloride)

Others

Number of Units in Package 1

1

Number of Units in Package 2

10

Number of Units in Package 3

200

Package 1 Height

16 mm

Package 1 Length

118 mm

Package 1 width

76 mm

Package 2 Height

122 mm

Package 2 Length

161 mm

Package 2 width

141 mm

Package 3 Height

380 mm

Package 3 Length

460 mm

Package 3 width

335 mm

Unit Type of Package 1

PCE

Unit Type of Package 2

BB1

Unit Type of Package 3

CAR

Package 1 Weight

26 g

Package 2 Weight

0.35 kg

Package 3 Weight

7 kg
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • Product Brochures

  • CAD Files and Packs

  • Technical Data Catalogues

  • Product Environmental

Frequently Asked Questions

hide show

What is the part number for standard din rail?

The part number for standard din rail is NSYSDR200B. It is 7.5mm deep by 2000mm long.

Can you get a plate larger than 6 gang in the 2000 series?

Not directly, but using the 2000/2 or 2000h2 series you can fit 2 plates under one surround.

Do you have a 2000MF round mounting block with a diameter of 800?

Yes the part number is 2000MF800.

Does PowerLogic SCADA support waveform data of ION meters?

No, Powerlogic SCADA (PLS) currently does not support the waveform data from ION meters; valid through PLS v7.10 SR3.
Waveforms from the following devices are currently supported as of v7.10 SR3: Circuit Monitor 3000s, Circuit Monitor 4000s, Power Meter 800s, and Sepam 20s, 40s, and 80s.


Legacy KB System (APS) Data: RESL200266 V2.0, Originally authored by KBAdPM on 10/16/2009, Last Edited by MaTh on 12/01/2010
Related ranges: PowerLogic SCADA 7.1

Are there any plaster clips or other accessories for 2000/3 ?

We only make wall boxes for this 2000/3
The Part number is 2157/3  or 2157/3SB1 or 2157/3SB2

Will the 2000pp fit the C2000 series?

No, unfortunately you will need to use a C2000PP paint protector.

For further information please visit www.clipsal.com/Trade/Products/ProductDetail?catno=C2000PP
