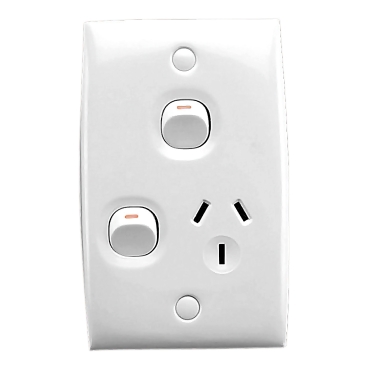

Single Switched Socket Vertical Mount with Extra Switch Shutter

White Electric | Single Switched Socket Vertical Mount with Extra Switch Shutter

Single Switched Socket Vertical Mount with Extra Switch Shutter

Item Number: 15VXS-WE

RRP (Inc. GST)



Qty UoM EAN Colour



Sustainable offer status

Green Premium product

Product brand


Range of product

Standard Series

Surface finish



Environmental Disclosure


Mercury free


REACh Regulation

Reference contains Substances of Very High Concern above the threshold

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

EU RoHS Directive


RoHS exemption information


Control type

ON/OFF button

Number of gangs

1 gang

Pin number


Number of power socket outlets



  • switch
  • rocker
    • Mounting position


      Fixing mode

      by screws

      Local signalling

      without light indicator

      [Ue] rated operational voltage

      250 V AC

      [In] rated current

      10 A


      14 mm


      115 mm


      73 mm

      Fixing center

      84 mm


    • AS/NZS 3100
    • AS/NZS 3112
    • AS/NZS 3133
    • AS/NZS 3000:approval number S/1
      • Material


        PC (polycarbonate)


        Package 1 Height

        14 mm

        Package 1 Length

        115 mm

        Package 1 Weight

        0.001 kg

        Package 1 width

        73 mm
        Show all specifications
