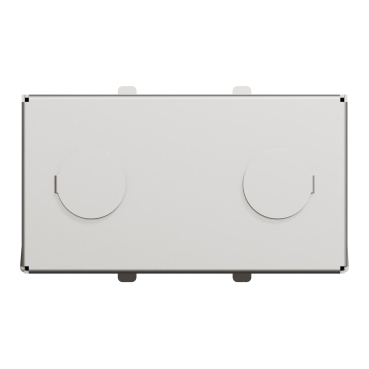

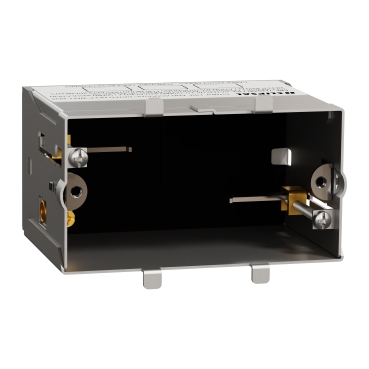

Clipsal - Mounting Accessories Wall Box Metal, Deep Fire Rated

Clipsal - Mounting Accessories Wall Box Metal, Deep Fire Rated

Item Number: 157MDF

This Clipsal wall box is a deep fire rated mounting accessory. This product can be used in multiple fire rated plasterboard applications. It has an acoustic rating of STC50. The materials are recyclable and environmentally friendly. This wall box has an earth terminal built in. The shape of the product is rectangle and facilitates one 84mm mounting switch or outlet plate. This device enables flush mounting. The dimensions of this indoor unit are (W) 98mm x (H) 53mm x (D) 70mm. The cross-section of the conductor is a maximum of 4mm². The colour of the product is natural and made up of steel material with electro-galvanized surface treatment. It reaches an IP2x degree of protection. This device is compliant with the standards AS/NZS 1530.4 and AS/NZS 60670 2021.

Where To Buy

Datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
See all
157MDF exploded view
157MDF exploded view

Features

  • Recessed mounts to support a large variety of plate ranges

  • Can be used in multiple fire-rated plasterboard applications

  • Repositioned tabs for a better fit

  • Earthing terminal to earth the wall box (Compliant to AS/NZS 3.7.2.11)

  • With the acoustic rating of STC50

  • Depth of 70mm to support electronic devices

  • Solid surround for easy application of mastic

  • 11mm intumescent material

Specifications

Design

Range

Clipsal

Product brand

Clipsal

Product or component type

wall box

Surface treatment

electro-galvanized

Sustainable offer status

Green Premium product

Physical

Number of gangs

1 gang

Device mounting

flush

Length

98 mm

Width

53 mm

Depth

70 mm external:

IP degree of protection

IP2X

Standards

  • AS/NZS 60670:2021
  • AS/NZS 1530.4

REACh Regulation

Reference contains Substances of Very High Concern above the threshold

EU RoHS Directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

China RoHS Regulation

Product out of China RoHS scope. Substance declaration for your information

RoHS exemption information

Yes

Environmental Disclosure

ENVPEP110719EN

Material

Material

steel

Others

Package 1 Bare Product Quantity

1

Package 2 Bare Product Quantity

5

Package 3 Bare Product Quantity

40

Shape

rectangular

Unit Type of Package 1

PCE

Number of Units in Package 1

1

Package 1 Height

7 cm

Package 1 Width

5.2 cm

Package 1 Length

9.6 cm

Package 1 Weight

230 g

Unit Type of Package 2

BB1

Number of Units in Package 2

5

Package 2 Height

12.7 cm

Package 2 Width

10.2 cm

Package 2 Length

16.4 cm

Package 2 Weight

1.2 kg

Unit Type of Package 3

CAR

Number of Units in Package 3

40

Package 3 Height

22.4 cm

Package 3 Width

26.1 cm

Package 3 Length

33.5 cm

Package 3 Weight

9.9 kg
Show all specifications
