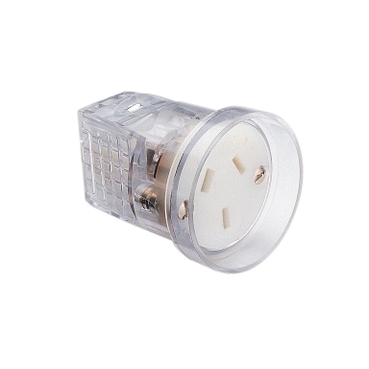

Extension Socket, 250VAC, 10A, Quick Connect

Transparent | Extension Socket, 250VAC, 10A, Quick Connect

Extension Socket, 250VAC, 10A, Quick Connect

Item Number: 1438-TR

Retail
N/A
RRP (Inc. GST)

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Sustainable offer status

Green Premium product

Range of product

Standard Series

Product or component type

socket-outlet

Product brand

Clipsal

Physical

Marking

without marking

Local signalling

without light indicator

[In] rated current

10 A

[Ue] rated operational voltage

250 V AC

Depth

62 mm

Standards

  • AS/NZS 3112
  • AS 3100
  • AS 3109
  • AS/NZS 3122:approval number S/1
    • REACh Regulation

      Free of Substances of Very High Concern above the threshold

      EU RoHS Directive

      Compliant

      Mercury free

      Yes

      RoHS exemption information

      Yes

      China RoHS Regulation

      Product out of China RoHS scope. Substance declaration for your information

      Environmental Disclosure

      ENVPEP1605009

      Quantity per set

      set of 1

      Others

      Diameter

      41 mm

      Unit Type of Package 1

      PCE

      Number of Units in Package 1

      1

      Package 1 Weight

      48.3 g

      Package 1 Height

      5 cm

      Package 1 width

      7 cm

      Package 1 Length

      10 cm

      Unit Type of Package 2

      BB1

      Number of Units in Package 2

      10

      Package 2 Weight

      550 g

      Package 2 Height

      8.4 cm

      Package 2 width

      12.65 cm

      Package 2 Length

      17 cm

      Unit Type of Package 3

      CAR

      Number of Units in Package 3

      200

      Package 3 Weight

      11 kg

      Package 3 Height

      25.4 cm

      Package 3 width

      34.8 cm

      Package 3 Length

      44.5 cm

      Cover type

      complete housing
      Show all specifications

      Documents & downloads

      hide show
      Filter items
      • All

      • Product Brochures

      • Technical Data Catalogues

      Frequently Asked Questions

      hide show

      Which direction the H1 side of MTZ neutral CT (TCE external sensor) to be installed?

      Please see below diagram from the MTZ Neutral Current Transformer Instruction Sheet.


      As you can see, H1 is always oriented to the bottom side (of the breaker) and H2 to the top side (of the breaker)
      In fact, the CT is always installed in the same way whatever the way the breaker is fed (top or bottom)
      .



      Please see the below illustrations for better understanding.


      You can install the neutral CT above or below or same level as the breaker, but H1 side of the neutral CT is always facing the direction where the bottom of the breaker is. Please see below.



      The reason for this is that the internal CTs installed inside the beakers, face their H1 side towards the bottom terminals of the breaker. Since, we cannot change the orientation of the internal phase CTs, we have to match the same orientation in the neutral CT as well. i.e. H1 is always oriented to the bottom side (of the breaker) and H2 to the top side (of the breaker)
