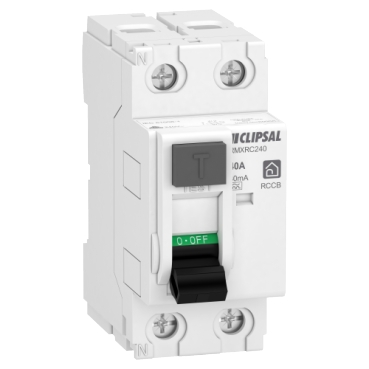

Clipsal Resi MAX A type Residual Current Circuit Breaker 2P 40A 30mA

Home ProductsCircuit ProtectionResi MaxA type Residual Current Circuit Breaker

Clipsal Resi MAX A type Residual Current Circuit Breaker 2P 40A 30mA

Item Number: RMXRC240

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width36 mm

Height icon

Height81 mm

Embedding depth icon

Embedding depth44 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Resi MAX

Product or component type

residual current circuit breaker (RCCB)

Product brand

Clipsal

Device application

protection

Physical

[in] rated current

40 A

[ue] rated operational voltage

240 V

Height

81 mm

Width

36 mm

Depth

73 mm

Net weight

189 g

Embedding depth

44 mm

Mechanical durability

4000 cycles

Electrical durability

4000 cycles

Connections - terminals

  • tunnel type terminals - 1...25 mm² - flexible
  • tunnel type terminals - 1...35 mm² - rigid

Wire stripping length

14 mm

Standards

AS/NZS 61008

Product certifications

  • RCM
  • CB

Ip degree of protection

  • IP20 conforming to IEC 60529
  • IP40 (modular enclosure) conforming to IEC 60529

Ambient air temperature for operation

-25...40 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2301023EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Poles description

2P

Number of modules

2

Network type

AC

Earth-leakage sensitivity

30 mA

Earth-leakage protection class

type A

Rated conditional short-circuit current

6 kA

Network frequency

50 Hz

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

4 kV

Surge current

250 A

Size

81 x 36 x 75 mm conforming to DIN 43880

Connection pitch

18 mm

9 mm pitches

4

Tightening torque

3.5...3.5 N.m

Pollution degree

2

Overvoltage category

III

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8 cm

Package 1 width

4 cm

Package 1 length

9 cm

Package 1 weight

212 g

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Green premium status for reporting

Green Premium product

Scip number

2c7837a4-39fc-4abc-96ed-2ef14f8f87c7

Sustainable packaging

Yes

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

60.7765327541234

Global warming ; total life cycle​

61 kg CO2 eq.

Minimum percentage of recycled plastic content

0
