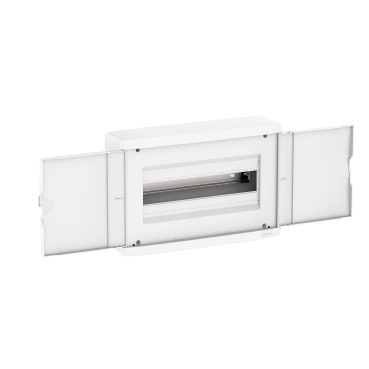

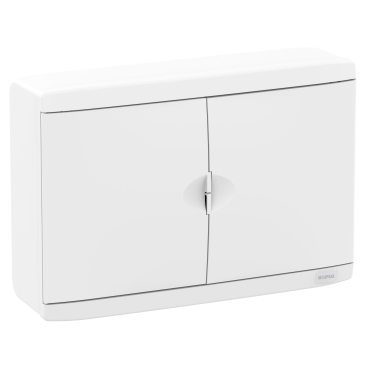

MAX9 Switchboard Enclosure Type 2, 1 Row, 15 Ways, Surface Mount

Home ProductsCircuit ProtectionMax9Switchboard Enclosure

MAX9 Switchboard Enclosure Type 2, 1 Row, 15 Ways, Surface Mount

Item Number: MX9E2115S

Datasheet

Product Dimensions

Width icon

Width376 mm

Height icon

Height258 mm

Depth icon

Depth120 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

MAX9

Product brand

Clipsal

Product or component type

enclosure

Device application

distribution

Colour

white electric (RAL 9003)

Market segment

residential

Warranty

7-year

Physical

Provided equipment

earthing bar|neutral bar|circuit identification label|blanking plate

[ue] rated operational voltage

240/415 V AC

[in] rated current

100 A

Cable entry

knock-out cable entries

Width

376 mm

Height

258 mm

Depth

120 mm

Standards

AS/NZS 61439-3|AS/NZS 3000

Ip degree of protection

IP40

Ik degree of protection

IK05

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP2206023EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Number of 18 mm modules per row

15

Door type

plain door - right and left

Enclosure mounting

surface

Total number of 18 mm modules

15

Number of horizontal rows

1

[ui] rated insulation voltage

500 V

Number of ways

15 ways

Type of rail

DIN

Enclosure material

housing: plastic

Fire resistance

650 °C

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

12.8 cm

Package 1 width

28.4 cm

Package 1 length

38.4 cm

Package 1 weight

2.008 kg

Unit type of package 2

P12

Number of units in package 2

120

Package 2 height

207.0 cm

Package 2 width

80.0 cm

Package 2 length

120.0 cm

Package 2 weight

255.0 kg

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
