MAX9 Residual Current Circuit Breaker (RCCB) 4P, 40A, 30mA, A Type

Home ProductsCircuit ProtectionMax9Residual Current Circuit Breaker (RCCB)

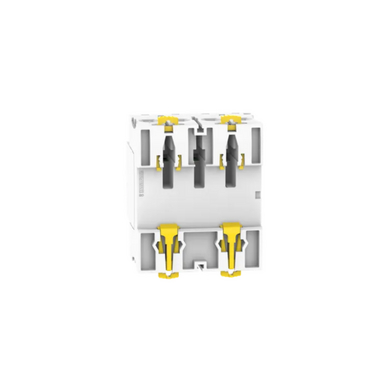

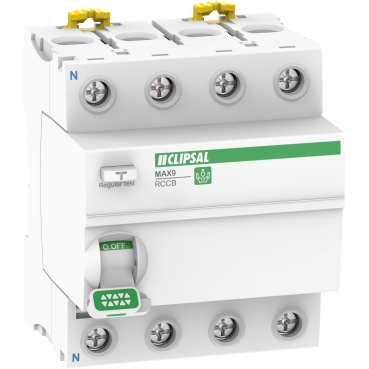

MAX9 Residual Current Circuit Breaker (RCCB) 4P, 40A, 30mA, A Type

Item Number: MX9RC440

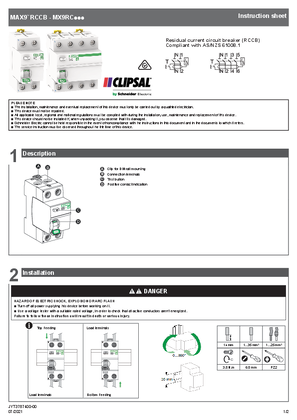

Datasheet

Product Dimensions

Width icon

Width72 mm

Height icon

Height85 mm

Depth icon

Depth75 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

MAX9

Product or component type

residual current circuit breaker (RCCB)

Sustainable offer status

Green Premium product

Warranty

7-year

Physical

[in] rated current

40 A conforming to AS/NZS 61008.1

[ue] rated operational voltage

415 V

Control type

toggle

Local signalling

ON/OFF indication

Mounting mode

clip-on

Mounting support

DIN rail

Standards

IEC 61008-2-1|EN/IEC 61008-1

Height

85 mm

Width

72 mm

Depth

75 mm

Net weight

370 g

Mechanical durability

10000 cycles

Electrical durability

4000 cycles AC 50 Hz

Connections - terminals

tunnel type terminals (top or bottom)

Wire stripping length

14 mm for top or bottom connection

Ip degree of protection

IP20

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1409014EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

3

Poles description

4P

Network type

AC

Network frequency

50 Hz

Earth-leakage sensitivity

30 mA

Earth-leakage protection time delay

instantaneous

Earth-leakage protection class

type A

Rated breaking and making capacity

Im 500 A at 415 V AC 50 Hz conforming to AS/NZS 61008.1

Rated conditional short-circuit current

MAX9 MCB: Inc 6 kA 40 A

[ui] rated insulation voltage

440 V AC 50 Hz conforming to AS/NZS 61008.1

[uimp] rated impulse withstand voltage

4 kV

Surge current

250 A

Quality labels

RCM

9 mm pitches

8

Tightening torque

3.5...3.5 N.m top or bottom

Temperature derating table

40 °C ( 40 A ) |45 °C ( 37.5 A ) |50 °C ( 35 A ) |55 °C ( 32.5 A ) |60 °C ( 30 A ) |65 °C ( 27.5 A ) |70 °C ( 25 A )

Grid distance

35 mm

Pollution degree

2

Overvoltage category

III

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

8 cm

Package 1 width

9 cm

Package 1 length

8 cm

Package 1 weight

366 g

Unit type of package 2

BB1

Number of units in package 2

3

Package 2 height

9 cm

Package 2 width

25.4 cm

Package 2 length

10.6 cm

Package 2 weight

1.194 kg
