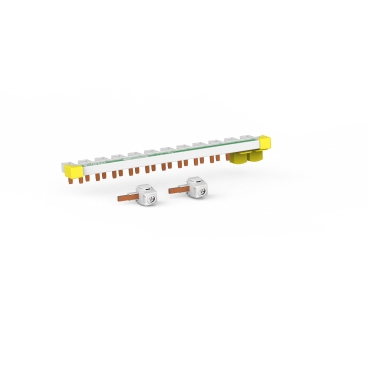

MAX9 MAXBAR Top Feed 1P+N, 12 Modules, 100 A with Accessories

Home ProductsCircuit ProtectionMax9MAXBAR Top Feed

MAX9 MAXBAR Top Feed 1P+N, 12 Modules, 100 A with Accessories

Item Number: MX9B112

Product Selector ➚

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-
max9 MAXBAR
max9 MAXBAR
max9 MAXBAR
max9 MAXBAR

Features

  • MAX Speed – Up to 15 times faster compared to traditional wiring method
  • MAX Professionalism – No cables for feeding RCBOs
  • MAX Performance – 100A rated

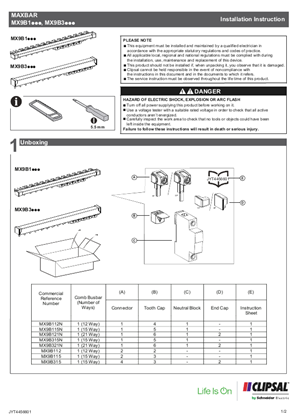

  • MAX Ease – All in 1 pack: Busbar + Connector + Teeth cover + End Caps + Neutral terminal block (refs ending with N only)

MAX Flexibility

  • One busbar connects to main switch, all type of Clipsal RCBOs and AFDD
  • Cuttable to have desired number of modules and insulate with End caps
  • Teeth covers to insulate unused modules for future upgrades
  • Available in varying lengths
  • Compatible with Resi MAX SLIM Comb busbar accessories like connector, teeth cover and end caps

Specifications

Design

Product brand

Clipsal

Range

MAX9

Product or component type

comb busbar

Market segment

residential

Warranty

7-year

Physical

Device presentation

cuttable

Provided equipment

  • 2 connector
  • 2 tooth covers

[ie] rated operational current

100 A

[ue] rated operational voltage

230 V AC

Mounting mode

horizontal

Standards

  • AS/NZS 61439-3
  • AS/NZS 3000

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

Environmental disclosure

ENVPEP2206007EN

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Reach regulation

Reference contains Substances of Very High Concern above the threshold

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Others

Legacy weee scope

In

Package 1 bare product quantity

1

Average percentage of recycled plastic content

0 %

Outside of Europe

Weee label

N/A

Weee applicability

Component

Weee exclusion rationale

Component not in scope – non independent function

Total number of 18 mm modules

12

Number of ways

outgoer: 12 ways N + L

Poles configuration for 1 way

outgoer: 1P + N

Connection pitch

outgoer: 9 mm

Insulation

insulated

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

4 kV

Mounting location

top

Fire resistance

960 °C

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

4.0 cm

Package 1 width

30.0 cm

Package 1 length

12.5 cm

Package 1 weight

180.0 g

Unit type of package 2

CAR

Number of units in package 2

12

Package 2 height

26.2 cm

Package 2 width

27.3 cm

Package 2 length

33.4 cm

Package 2 weight

2.2 kg

Total lifecycle carbon footprint

30 kg CO2 eq.

Carbon footprint of the manufacturing phase [a1 to a3]

0.8058121894694109

Carbon footprint of the manufacturing phase [a1 to a3]

0.8 kg CO2 eq.

Carbon footprint of the distribution phase [a4]

0.05215480026307992

Carbon footprint of the distribution phase [a4]

0.1 kg CO2 eq.

Carbon footprint of the installation phase [a5]

0.09368200202730854

Carbon footprint of the installation phase [a5]

0.1 kg CO2 eq.

Carbon footprint of the use phase [b2, b3, b4, b6]

29.068

Carbon footprint of the use phase [b2, b3, b4, b6]

29 kg CO2 eq.

Sustainable packaging

Yes

Carbon footprint of the end-of-life phase [c1 to c4]

0.3217217836459602

Carbon footprint of the end-of-life phase [c1 to c4]

0.3 kg CO2 eq.

Pvc free

No

Halogen-free status

Halogen free product

Silicone-free

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Total lifecycle carbon footprint

30.34137077540576

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Halogen-free status

Halogen free product

Pvc free

No

Silicone-free

No

End of life manual availability

N/A

Take-back

No

Warranty (in months)

84
Show all specifications

Frequently Asked Questions

Will the Resimax endcaps suit the Maxbar?

Hide Show
No they do not, our longer lengths of Maxbar come with extra end caps
MX9B121N, MX9B321N and MX9B315 all come with 2 spare end caps.


How do you distribute MAXBAR from the main row to other rows, keeping the system more professional?

Hide Show
MAXBAR with neutral terminal block can be used to distribute active and neutral in the row with main switch. Use the connectors provided with MAXBAR to take active and neutral feed from the row with main switch to take the feed to other rows. You can follow the same process for other rows in switchboard.

MAXBAR Kit Definition


What is MAXBAR?

Hide Show
MAXBAR is a top feeding comb busbar able to feed Line & Neutral from the Main incoming Switch or MCB and neutral terminal directly to all type of Clipsal RCBOs and AFDDs.

There are Comb busbar for 1P+N and 3P+N applications. There is one variant with neutral terminal block for rows with Main Switch  and another variant for rows without Main switch.



How can MAXBAR help me to save time during switchboard installation ?

Hide Show
MAXBAR removes the need for cutting stripping, twisting and managing cables for feeding RCBO & AFDD on typical installation. This helps to achieve installation speed of up to 15x faster with MAXBAR compared to traditional wiring.



max9 busbar
max9 AFDD
max9 distribution board
max9 icons
max9 busbar
max9 AFDD
max9 distribution board
max9 icons

Ultimate Efficiency and Professional Finish

  • MAX9 takes the definition of  a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
  • With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from main switch and distributes both active & neutral across all type of Clipsal  RCBOs and AFDDs

MAX Innovation & Performance

  • Innovation is at the core of everything at Clipsal. MAX9 is no exception to that. MAX9 brings in Arc Fault Detection Device (AFDD) to help take the safety of Australian homes to next level
  • Enjoy best-in-class performance with 100A rated system. MAX9 products are designed for tough Aussie conditions with operating temperature ranging from -25 Deg C to +70 Deg C with derating
  • When it comes to circuit protection, it all comes down to what's on the inside. MAX9 breakers are solidly built and designed to endure 20K mechanical cycles and 10K electrical cycles*

Peace of Mind

  • Amendment 2 of "Wiring rules" mandate type A RCDs from 2023. All RCBOs and RCDs in MAX9 range are already type A so that you can be future ready
  • MAX9 system comes type tested as per the requirements of AS/NZS 61439-3 to provide you additional peace of mind
  • Clipsal MAX9 range comes with 7 year warranty for the ultimate peace of mind

Simplify Safety & Digital Experience

  • Sometimes it could be hard to explain circuit protection category to home owners. MAX9 helps to simplify safety by explaining types of circuit protection to home owners with simple pictograms
  • MAX9 range takes the digital experience to next level with QR codes on each product to easily access all technical information like specifications, brochures, installation instructions, FAQs and videos
