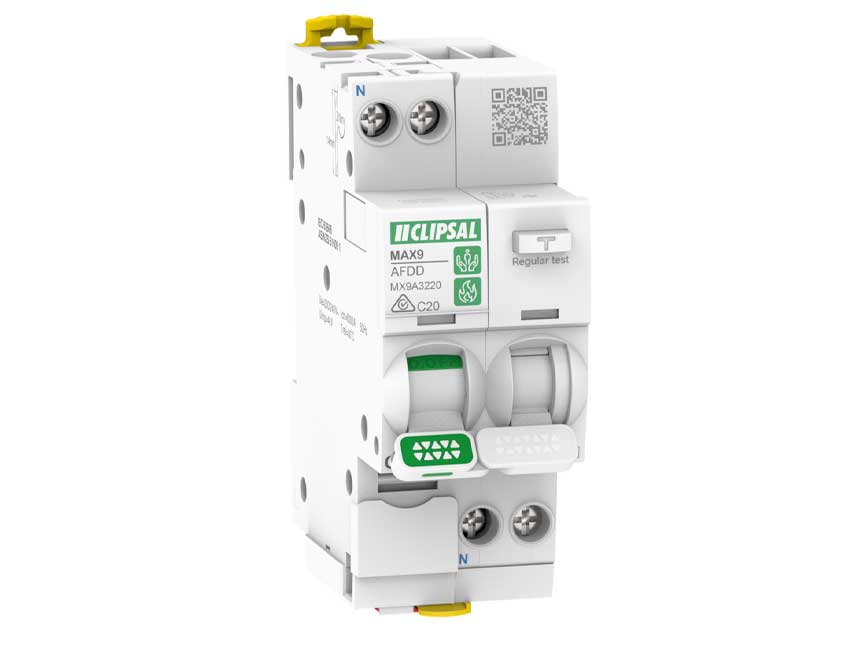

MAX9 Arc Fault Detection (AFDD+RCBO) 1P+N, 16A, 30mA, C Curve, 6000A, A Type, All-in-one

Item Number: MX9A3216

1 PCE 0

Product Selector ➚

Where To Buy

Datasheet

Download

Product Dimensions

Width36 mm

Height91 mm

Depth75 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1		9311554813413	-

Specifications

Design

Range

MAX9

Product or component type

arc fault detection RCBO

Warranty

7-year

Physical

Standards

EN/IEC 62606
AS/NZS 61009.1

[in] rated current

16 A at 30 °C

[ue] rated operational voltage

240 V AC 50 Hz conforming to AS/NZS 61009.1

Control type

toggle

Local signalling

ON, OFF, fault trip

Mounting mode

clip-on

Mounting support

DIN rail

Mechanical durability

20000 cycles

Electrical durability

10000 cycles AC 50 Hz conforming to IEC 61009

Connections - terminals

tunnel type terminal top or bottom 1-10 mm² flexible
tunnel type terminal top or bottom 1-16 mm² rigid

Wire stripping length

14 mm for top or bottom connection

Height

91 mm

Width

36 mm

Depth

75 mm

Net weight

237 g

Ip degree of protection

IP20

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-25...70 °C

Ambient air temperature for storage

-40...85 °C

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

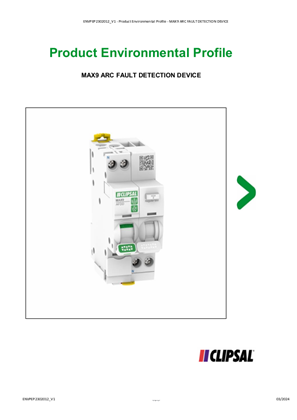

Environmental disclosure

ENVPEP1906001EN

Circularity profile

ENVEOLI1906001EN

Others

Package 1 bare product quantity

Circuit breaker application

distribution

Product specific application

fire prevention by arc detection

Poles description

1P + N

Number of protected poles

Curve code

Breaking capacity

6000 A Icn at 240 V AC 50 Hz conforming to AS/NZS 61009.1

Earthing system

TN-S
TT
IT

Earth-leakage sensitivity

30 mA

Network type

Earth-leakage protection time delay

instantaneous

Earth-leakage protection class

type A

Neutral position

left

Suitability for isolation

yes

Trip unit technology

thermal-magnetic

Earth-leakage protection

integrated

Network frequency

50 Hz

Device location in system

outgoer

Magnetic tripping limit

5...10 x In

[ics] rated service breaking capacity

6000 A at 240 V AC 50 Hz conforming to AS/NZS 61009.1

Rated breaking and making capacity

500 A

Limitation class

[ui] rated insulation voltage

440 V AC 50 Hz

Threshold tripping voltage

275 V

[uimp] rated impulse withstand voltage

4 kV conforming to AS/NZS 61009.1

Contact position indicator

yes

Overvoltage category

III

Locking options description

by padlocks

Tightening torque

2 N.m top or bottom

Comb busbar and distribution block compatibility

top comb busbar: YES

Connection pitch

9 mm between phase and neutral

9 mm pitches

Targeted country

Australia

Temperature derating table

-25 °C ( 19.6 A )
-20 °C ( 19.3 A )
-15 °C ( 19 A )
-10 °C ( 18.7 A )
-5 °C ( 18.4 A )
0 °C ( 18.1 A )
5 °C ( 17.7 A )
10 °C ( 17.4 A )
15 °C ( 17.1 A )
20 °C ( 16.7 A )
25 °C ( 16.4 A )
30 °C ( 16 A )
35 °C ( 15.6 A )
40 °C ( 15.3 A )
45 °C ( 14.9 A )
50 °C ( 14.5 A )
55 °C ( 14.1 A )
60 °C ( 13.6 A )
65 °C ( 13.2 A )
70 °C ( 12.7 A )

Grid distance

35 mm

Heat dissipation

3.5...3.5 W at 240 V - 16 A

Pollution degree

Tropicalisation

severity B conforming to IEC 60068-2-30 for 28 d

Operating altitude

0...2000 m

Quality labels

RCM

Unit type of package 1

PCE

Number of units in package 1

Package 1 height

8.4 cm

Package 1 width

4.4 cm

Package 1 length

10.4 cm

Package 1 weight

234.0 g

Unit type of package 2

CAR

Number of units in package 2

Package 2 height

20.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

9.86 kg

Packaging made with recycled cardboard

Packaging without single use plastic

Scip number

b078722f-7853-4e1e-a05b-29638f57b0ab

Pvc free

VERSION

1.0

DATE

23 Feb 2024

REVISION

1.0

DOWNLOAD (ZIP) 143.5 KB

Ultimate Efficiency and Professional Finish

MAX9 takes the definition of a busbar to next level with MAXBAR. MAXBAR helps to improve installation speed by up to 15 times when compared to using cables for feeding RCBOs
With MAXBAR, no cable connections are needed to feed final sub-circuits protected by an RCBO or AFDD - it picks up the active feed from main switch and distributes both active & neutral across all type of Clipsal RCBOs and AFDDs

MAX Innovation & Performance

Innovation is at the core of everything at Clipsal. MAX9 is no exception to that. MAX9 brings in Arc Fault Detection Device (AFDD) to help take the safety of Australian homes to next level
Enjoy best-in-class performance with 100A rated system. MAX9 products are designed for tough Aussie conditions with operating temperature ranging from -25 Deg C to +70 Deg C with derating
When it comes to circuit protection, it all comes down to what's on the inside. MAX9 breakers are solidly built and designed to endure 20K mechanical cycles and 10K electrical cycles*

Peace of Mind

Amendment 2 of "Wiring rules" mandate type A RCDs from 2023. All RCBOs and RCDs in MAX9 range are already type A so that you can be future ready
MAX9 system comes type tested as per the requirements of AS/NZS 61439-3 to provide you additional peace of mind
Clipsal MAX9 range comes with 7 year warranty for the ultimate peace of mind

Simplify Safety & Digital Experience

Sometimes it could be hard to explain circuit protection category to home owners. MAX9 helps to simplify safety by explaining types of circuit protection to home owners with simple pictograms
MAX9 range takes the digital experience to next level with QR codes on each product to easily access all technical information like specifications, brochures, installation instructions, FAQs and videos
