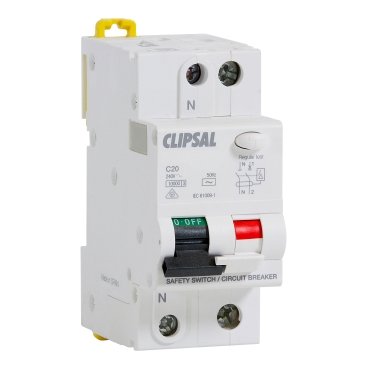

Clipsal - Max 4 RCBO 2 module 2P 25 A C curve 30mA Type AC 6000A
Item Number: 4RCBM225/30
Datasheet
Close
Specifications
Design
| Range | MAX4 |
|---|---|
| Product or component type | residual current breaker with overcurrent protection (RCBO) |
| Product brand | Clipsal |
Physical
| [in] rated current | 25 A |
|---|---|
| [ue] rated operational voltage | 240 V AC |
| Standards | AS/NZS 61009 |
| Ip degree of protection |
|
| Ambient air temperature for operation | -5...40 °C |
| Mercury free | Yes |
| Rohs exemption information | Yes |
| Environmental disclosure | ENVPEP1204001EN |
| Eu rohs directive | Compliant By Exemption |
