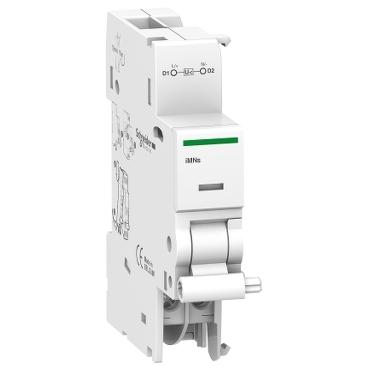

Acti9 Undervoltage release iMNs, voltage release, 220...240V AC

Item Number: A9A26963

1 PCE 0

Where To Buy

Datasheet

Download

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480088018	-
8	BB1	13606480088015	-

Specifications

Design

Range	Acti9
Product or component type	undervoltage release
Range of product	iSW-NA iID iDPN Vigi iC60
Product compatibility	double terminal ARA single terminal iID iSW-NA iC60 iDPN Vigi RCA
Market segment	small commercial residential
Warranty	18 months

Physical

Control type	delayed
Range compatibility	Acti9 iC60H RCBO Acti9 iC60H RCBO PoN Acti9 iC60H2 RCBO Acti9 iC60N RCBO Acti9 iKQE RCBO Acti9 iCVm40 Acti9 iCVr40 Acti9 iDDm40
Local signalling	action indicator
Mounting mode	clip-on
Mounting support	DIN rail
Width	18 mm
Connections - terminals	clamp terminal - 1 cable(s) 10-10 mm² - rigid clamp terminal - 2 cable(s) 2.9-2.9 mm² - rigid clamp terminal - 1 cable(s) 8-8 mm² - flexible clamp terminal - 2 cable(s) 2.9-2.9 mm² - flexible with cable end
Standards	EN/IEC 60947-1
Relative humidity	95 % at 55 °C
Ambient air temperature for operation	-35...70 °C
Ambient air temperature for storage	-40...85 °C
Mercury free	Yes
Rohs exemption information	Yes
Environmental disclosure	ENVPEP2206015EN
Eu rohs directive	Compliant By Exemption

Others

Package 1 bare product quantity	1
Package 2 bare product quantity	8
Package 3 bare product quantity	72
Legacy weee scope	In
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Average percentage of recycled plastic content	0 %
	At least in Europe
Device short name	iMNs
[uc] control circuit voltage	220...240 V AC 50/60 Hz
9 mm pitches	2
Comb busbar and distribution block compatibility	top and bottom: YES
Tightening torque	1 N.m
Compatibility code	iMNs
Tropicalisation	2 conforming to EN/IEC 60947-5-1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	2.800 cm
Package 1 width	8.000 cm
Package 1 length	9.400 cm
Package 1 weight	82.000 g
Unit type of package 2	BB1
Number of units in package 2	8
Package 2 height	8.500 cm
Package 2 width	10.000 cm
Package 2 length	26.600 cm
Package 2 weight	710.000 g
Unit type of package 3	S03
Number of units in package 3	72
Package 3 height	30 cm
Package 3 width	30 cm
Package 3 length	40 cm
Package 3 weight	6.808 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	1 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	0.5318881854474556
Carbon footprint of the manufacturing phase [a1 to a3]	0.5 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.01958389716356357
Carbon footprint of the distribution phase [a4]	0 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.027110542317201138
Carbon footprint of the installation phase [a5]	0 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	0.5311163929133567
Carbon footprint of the use phase [b2, b3, b4, b6]	0.5 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.1453138245662063
Carbon footprint of the end-of-life phase [c1 to c4]	0.1 kg CO2 eq.
Silicone-free	No
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	1.2550128424077833
Bvb	Accepted
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	Yes
Scip number	c019b20e-e2a4-4fe7-afac-47a72d3f1e0f
Silicone-free	No
End of life manual availability	ENVEOLI2206015
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
