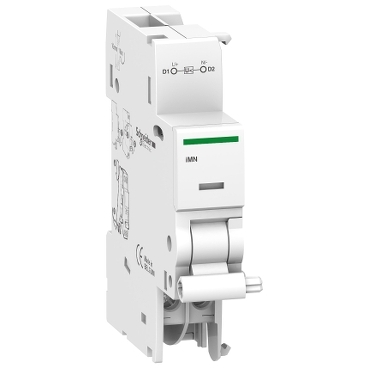

Acti9 Undervoltage release iMN, voltage release, 48 V AC

Home ProductsCircuit ProtectionActi9Undervoltage release

Acti9 Undervoltage release iMN, voltage release, 48 V AC

Item Number: A9A26961

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

undervoltage release

Range of product

  • iDPN Vigi
  • iC60
  • iID
  • iSW-NA

Product compatibility

  • iSW-NA
  • single terminal
  • iID
  • double terminal
  • iC60
  • RCA
  • ARA
  • iDPN Vigi

Market segment

  • small commercial
  • residential

Warranty

18 months

Physical

Control type

standard

Range compatibility

  • Acti9 iC60H RCBO
  • Acti9 iC60H RCBO PoN
  • Acti9 iC60H2 RCBO
  • Acti9 iC60N RCBO
  • Acti9 iKQE RCBO
  • Acti9 iCVm40
  • Acti9 iCVr40
  • Acti9 iDDm40

Local signalling

action indicator

Mounting mode

clip-on

Mounting support

DIN rail

Width

18 mm

Connections - terminals

  • clamp terminal - 1 cable(s) 9-9 mm² - rigid
  • clamp terminal - 2 cable(s) 2.8-2.8 mm² - rigid
  • clamp terminal - 1 cable(s) 7-7 mm² - flexible
  • clamp terminal - 2 cable(s) 2.8-2.8 mm² - flexible with cable end

Standards

EN/IEC 60947-1

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35...70 °C

Ambient air temperature for storage

-40...85 °C

Mercury free

Yes

Rohs exemption information

Yes

Eu rohs directive

Compliant with Exemptions

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant By Exemption

China rohs regulation

X

Others

Legacy weee scope

In

Package 1 bare product quantity

1

At least in Europe

Average percentage of recycled plastic content

0 %

Package 3 bare product quantity

72

Package 2 bare product quantity

8

Warranty duration(in months) bmecat

18

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Device short name

iMN

[uc] control circuit voltage

  • 48 V AC 50/60 Hz
  • 48 V DC

9 mm pitches

2

Comb busbar and distribution block compatibility

top and bottom: YES

Tightening torque

1 N.m

Compatibility code

iMN

Tropicalisation

2 conforming to EN/IEC 60947-5-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

2.8 cm

Package 1 width

8 cm

Package 1 length

9.4 cm

Package 1 weight

78 g

Unit type of package 2

BB1

Number of units in package 2

8

Package 2 height

8.5 cm

Package 2 width

10 cm

Package 2 length

26.7 cm

Package 2 weight

684 g

Unit type of package 3

S03

Number of units in package 3

72

Package 3 height

30 cm

Package 3 width

30 cm

Package 3 length

40 cm

Package 3 weight

6.562 kg

Green premium status for reporting

Green Premium product

Sustainable packaging

No

Silicone-free

No

Energy efficiency optimized

False

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Bvb

Accepted

Average percentage of recycled metal content

0 %

Packaging made with recycled cardboard

No

Packaging without single use plastic

Yes

Scip number

c019b20e-e2a4-4fe7-afac-47a72d3f1e0f

China rohs label

2

Silicone-free

No

End of life manual availability

ENVEOLI1304030

Take-back

No

Weee label

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Warranty (in months)

18
