Acti9 Earth leakage add-on block 3P + N, 63A, 30mA, A type

Item Number: A9V02763

1 PCE 0

Where To Buy

Datasheet

Download

Product Dimensions

Width108 mm

Height91 mm

Depth73.5 mm

See full specifications

Barcode

Qty	UoM	EAN	Colour
			-
			-
			-

Barcode

Qty	UoM	EAN	Colour
1	PCE	3606480551826	-

Specifications

Design

Range	Acti9
Range of product	iC60
Product or component type	add-on residual current device
Product compatibility	single terminal
Warranty	18 months

Physical

[in] rated current	63 A
[ue] rated operational voltage	400...415 V AC 50/60 Hz conforming to EN/IEC 61009-1 400...415 V AC 50/60 Hz conforming to EN/IEC 61009-2-1
Standards	EN/IEC 61009-1 EN/IEC 61009-2-1
Range compatibility	Acti9 iC60
Local signalling	trip indicator

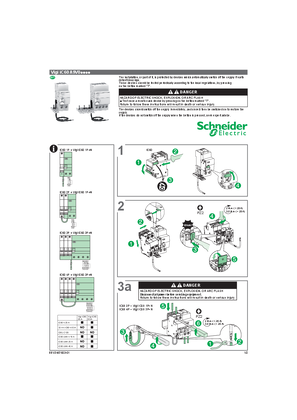

Mounting mode	clip-on
Mounting support	DIN rail
Height	91 mm
Width	108 mm
Depth	73.5 mm
Net weight	0.245 kg
Connections - terminals	tunnel type terminal downside for 1 cable(s) 1-35 mm² rigid without cable end tunnel type terminal downside for 1 cable(s) 1-25 mm² flexible without cable end tunnel type terminal downside for 1 cable(s) 1-25 mm² flexible with cable end
Wire stripping length	14 mm for bottom connection
Ip degree of protection	IP20 conforming to IEC 60529 IP40 (modular enclosure) conforming to IEC 60529
Ambient air temperature for operation	-25...60 °C
Ambient air temperature for storage	-40...85 °C
Mercury free	Yes
Rohs exemption information	Yes

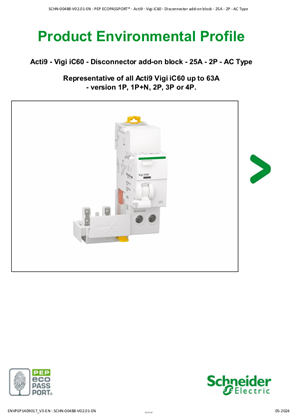

Environmental disclosure	ENVPEP1409017EN
Eu rohs directive	Compliant By Exemption
California proposition 65	WARNING: This product can expose you to chemicals including: Lead and lead compounds, which is known to the State of California to cause cancer and birth defects or other reproductive harm. For more information go to www.P65Warnings.ca.gov

Others

Life cycle assessment data	Yes
Package 1 bare product quantity	1
Average percentage of recycled plastic content	0 %
Legacy weee scope	In
Warranty duration(in months) bmecat	18
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
	At least in Europe
Product name	Acti9 Vigi iC60
Device short name	Vigi iC60
Poles description	3P + N
Neutral position	left
Earth-leakage sensitivity	30 mA
Earth-leakage protection time delay	instantaneous
Earth-leakage protection class	type A
Network type	AC
Network frequency	50/60 Hz
9 mm pitches	6
Device location in system	outgoer
Residual current tripping technology	voltage independent
[ui] rated insulation voltage	500 V AC 50/60 Hz conforming to IEC 60947-2
[uimp] rated impulse withstand voltage	6 kV conforming to IEC 60947-2
Electrical connection to mcb	by screws
Comb busbar and distribution block compatibility	bottom: YES
Total power losses	6.9 W
Power losses per pole	2.3 W
Tightening torque	3.5...3.5 N.m bottom
Pollution degree	3 conforming to IEC 60947-2
Electromagnetic compatibility	8/20 µs impulse withstand, 250 A conforming to IEC 61009-1
Unit type of package 1	PCE
Number of units in package 1	1
Package 1 height	8.5 cm
Package 1 width	11.5 cm
Package 1 length	14.5 cm
Package 1 weight	296.0 g
Unit type of package 2	S03
Number of units in package 2	15
Package 2 height	30.0 cm
Package 2 width	30.0 cm
Package 2 length	40.0 cm
Package 2 weight	4.895 kg
Green premium status for reporting	Green Premium product
Total lifecycle carbon footprint	8 kg CO2 eq.
Carbon footprint of the manufacturing phase [a1 to a3]	1.8632422423407828
Carbon footprint of the manufacturing phase [a1 to a3]	2 kg CO2 eq.
Carbon footprint of the distribution phase [a4]	0.057680563246900546
Carbon footprint of the distribution phase [a4]	0.1 kg CO2 eq.
Carbon footprint of the installation phase [a5]	0.05897607566519827
Carbon footprint of the installation phase [a5]	0.1 kg CO2 eq.
Carbon footprint of the use phase [b2, b3, b4, b6]	5.945757914560857
Carbon footprint of the use phase [b2, b3, b4, b6]	6 kg CO2 eq.
Sustainable packaging	No
Carbon footprint of the end-of-life phase [c1 to c4]	0.5406590770012393
Carbon footprint of the end-of-life phase [c1 to c4]	0.5 kg CO2 eq.
Pvc free	Yes
Energy efficiency optimized	False
F-gas free	N/A
Updatability	N/A
Take-back	No
Product contributes to saved and avoided emissions	No
Removable battery	N/A
Total lifecycle carbon footprint	8.466315872814977
Average percentage of recycled metal content	0 %
Packaging made with recycled cardboard	No
Packaging without single use plastic	Yes
Scip number	b078722f-7853-4e1e-a05b-29638f57b0ab
Tsca declaration url	https://download.schneider-electric.com/files?p_Doc_Ref=A9V02763_TSCA_DECLARATION&p_enDocType=Declaration+of+Conformity+(Sustainability)
Tsca regulation	Does not contain Section 6H Chemical
Pvc free	Yes
End of life manual availability	N/A
Take-back	No
Weee label	The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins
Warranty (in months)	18
