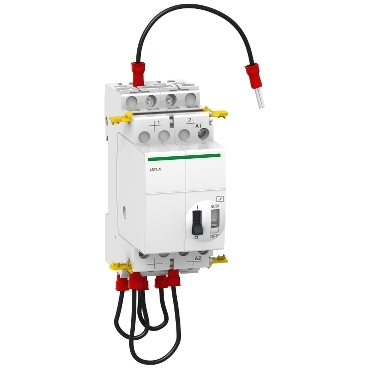

Acti9, Step by step control, iATL4

Item Number: A9C15412

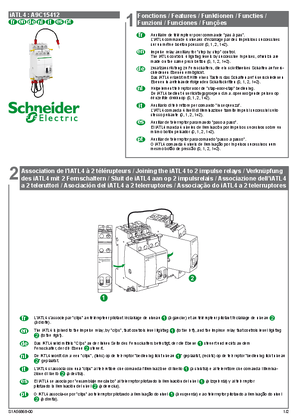

This Acti9 iATL4 is reliable step by step control auxiliary. Is operates with 230VAC control voltage. Mounting is performed between 2 iTL impulse relay with yellow clips. The degree of protection is IP20 and IP40 in an enclosure. It is DIN rail mountable. It is associated with iTL impulse relays to allow step by step control of two circuits through a single push button. This product is compliant with EN/IEC 60669-2-2.

Where To Buy

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width36 mm

Height icon

Height86 mm

Depth icon

Depth71 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

Acti9

Range

Acti9

Product or component type

step by stel control auxiliary

Product compatibility

iTL (32 A)|iTL (16 A)

Market segment

small commercial|residential

Warranty

18 months

Physical

Ambient air temperature for operation

-20...50 °C

Ambient air temperature for storage

-40...70 °C

Standards

EN/IEC 60669-2-2

Ip degree of protection

IP20 conforming to IEC 60529

Relative humidity

95 % at 55 °C

Remote control type

push-button

Mounting mode

fixed, between 2 TL

Mounting support

DIN rail

Height

86 mm

Width

36 mm

Depth

71 mm

Connections - terminals

tunnel type terminals0.5-4 mm² - rigid|tunnel type terminals0.5-4 mm² - rigid - with cable end|tunnel type terminals1-4 mm² - flexible|tunnel type terminals1-4 mm² - flexible - with cable end

Wire stripping length

11 mm

Range compatibility

Acti 9 Acti9 iTL iTL|Acti 9 Acti9 iTL iTLi|Acti 9 Acti9 iTL iTLs|Acti 9 Acti9 iTL iTLc

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Environmental disclosure

ENVPEP2311015EN

Circularity profile

N/A

Others

Overvoltage category

III

Package 1 bare product quantity

1

Tropicalisation

2

Device short name

iATL4

[uc] control circuit voltage

230 V AC 50/60 Hz impulse 50 ms

[ui] rated insulation voltage

440 V

[uimp] rated impulse withstand voltage

4 kV

Step sequences

1st impulse - TL1 on, TL2 off|3rd impulse - TL1 on, TL2 on|4th impulse - TL1 off, TL2 off|2nd impulse - TL1 off, TL2 on

Total power losses

0.15 W

Power losses per pole

0.15 W

9 mm pitches

4

Tightening torque

1 N.m

Compatibility code

iATL4

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

6.0 cm

Package 1 width

8.5 cm

Package 1 length

11.0 cm

Package 1 weight

200.0 g

Unit type of package 2

S03

Number of units in package 2

36

Package 2 height

30.0 cm

Package 2 width

30.0 cm

Package 2 length

40.0 cm

Package 2 weight

7.701 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

Yes

Bvb url

https://byggvarubedomningen.se/

Scip number

6763a476-30bc-4d05-a4bb-93f8d65c3771

Bvb

Accepted

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

2.93388186
