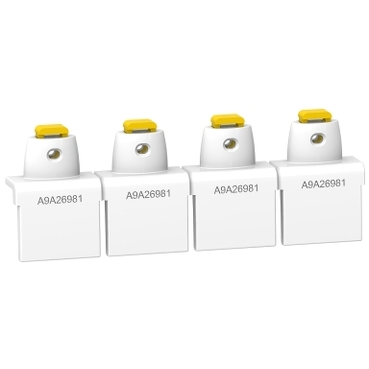

Acti9 iC60 Screw shield 4 poles, 72mm, for iC60, iID, Reflex iC60, iSW-NA

Acti9 iC60 Screw shield 4 poles, 72mm, for iC60, iID, Reflex iC60, iSW-NA

Item Number: A9A26981

This Acti9 insulation accessory is a set of 20 screw shield. Suitable for 1P, 1P+N, 2P, 3P, 3P+N, and 4P Circuit protection. This accessory is compatible with Acti9 iC60, iSW, iID, iSW-NA, Reflex iC60, ARA, and RCA Device location in product is top and bottom, and mounting mode is by clips. This product is compliant with EN/IEC 61008-1.

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range of product

  • iC60
  • iID
  • iSW-NA
  • Reflex iC60

Product or component type

screw shield

Market segment

  • small commercial
  • residential

Warranty

18 months

Physical

Quantity per set

set of 20

Range compatibility

  • Acti9 iSW-NA
  • Acti9 iC60
  • Acti9 iID
  • Acti9 Reflex iC60

Mounting mode

by clips

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Toxic heavy metal free

Yes

Mercury free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Accessory / separate part category

insulation accessory

Poles description

  • 3P
  • 4P
  • 1P + N
  • 2P
  • 3P + N
  • 1P

[ui] rated insulation voltage

500 V

Connection pitch

72 mm

Compatibility code

iC60

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.600 cm

Package 1 width

7.400 cm

Package 1 length

10.100 cm

Package 1 weight

99.500 g

Unit type of package 2

S02

Number of units in package 2

30

Package 2 height

15.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

3.318 kg

Bvb url

https://byggvarubedomningen.se/

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

No

Scip number

3eb221ac-bf4a-4cb7-a765-7d1ef77c84ba

Bvb

Accepted

Optimized energy efficiency

False

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
