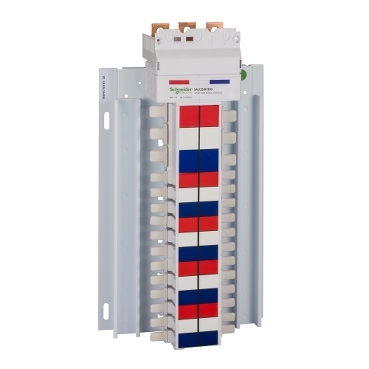

Acti9, SAU hybrid Chassis, 250A, 3Ph, 24 poles 18mm and 6 poles 27mm for MCB and RCBO, dual feed

Acti9, SAU hybrid Chassis, 250A, 3Ph, 24 poles 18mm and 6 poles 27mm for MCB and RCBO, dual feed

Item Number: SAU250H303DF

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

chassis

Device application

distribution

Physical

Range compatibility

Acti 9 distribution board

[in] rated current

250 A

Rated voltage

415 V 50 Hz

Number of poles

30

Number of poles

24 x 18 mm|6 x 27 mm

Width

215 mm

Length

299 mm

Standards

AS/NZS 61439

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

1

Network type

AC

Number of ways

1 way (incomer) - 3P

Short-circuit withstand

25 kA 0.1 s

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

6 kV

Busbar pitch

18 mm|27 mm

Location of connection

dual feed

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.5 cm

Package 1 width

24.5 cm

Package 1 length

58.3 cm

Package 1 weight

3 kg
