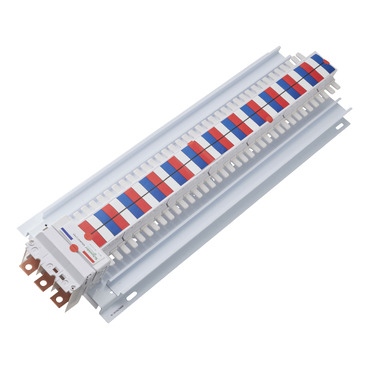

Acti9 SAU Chassis 3PH 400A, 18mm for iC60 MCB & RCBO, 72 Poles, Top or Bottom Feed

Acti9 SAU Chassis 3PH 400A, 18mm for iC60 MCB & RCBO, 72 Poles, Top or Bottom Feed

Item Number: SAU40072183

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

chassis

Device application

distribution

Physical

[in] rated current

400 A

Rated voltage

415 V 50 Hz

Number of poles

72

Number of poles

72 x 18 mm

Width

245 mm

Length

842 mm

Depth

95 mm

Net weight

5.88 kg

Standards

AS/NZS 61439

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

1

Incomer device

switch disconnector - 3P|MCCB - 3P

Protection device type

miniature circuit breaker (MCB) as outgoer|residual current circuit breaker with overcurrent protection (RCBO) as outgoer

Network type

AC

Number of ways

1 way (incomer) - 3P|1 way (outgoer) - 1P or 3P

Short-circuit withstand

25 kA 0.1 s

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

6 kV

Busbar pitch

18 mm

Location of connection

top or bottom

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.5 cm

Package 1 width

24.5 cm

Package 1 length

83.3 cm

Package 1 weight

5.143 kg
