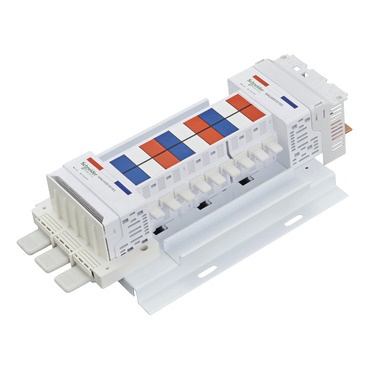

Acti9 SAU Chassis 3PH 400A, 18mm for iC60 MCB & RCBO, 18 Poles, Dual Feed

Home ProductsCircuit ProtectionActi 9SAU Chassis 3PH

Acti9 SAU Chassis 3PH 400A, 18mm for iC60 MCB & RCBO, 18 Poles, Dual Feed

Item Number: SAU40018183DF

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

chassis

Device application

distribution

Physical

Standards

AS/NZS 61439

[in] rated current

400 A

Rated voltage

415 V 50 Hz

Number of poles

18

Number of poles

18 x 18 mm

Width

245 mm

Length

448 mm

Depth

95 mm

Net weight

2.28 kg

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

1

Incomer device

switch disconnector - 3P|MCCB - 3P

Protection device type

miniature circuit breaker (MCB) as outgoer|residual current circuit breaker with overcurrent protection (RCBO) as outgoer

Network type

AC

Number of ways

1 way (incomer) - 3P|1 way (outgoer) - 1P or 3P

Short-circuit withstand

25 kA 0.1 s

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

6 kV

Busbar pitch

18 mm

Location of connection

dual feed

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.5 cm

Package 1 width

24.5 cm

Package 1 length

44.8 cm

Package 1 weight

2.1 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

11.1743619548
