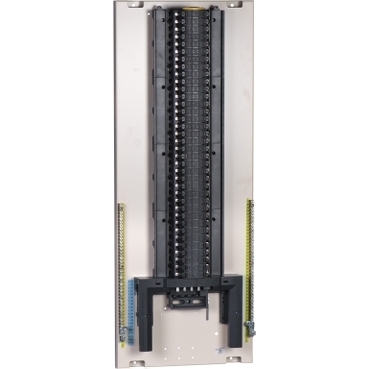

Acti9, Pan assembly, 24 ways TP + earth + neutral

Acti9, Pan assembly, 24 ways TP + earth + neutral

Item Number: SEA9BN24PEV

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

pan assembly

Device application

distribution

Sustainable offer status

Green Premium product

Physical

Range compatibility

Acti 9 Acti9 Isobar B distribution board

Provided equipment

mounting plate|DIN rail|neutral bar|grounding bar

[in] rated current

250 A

Number of poles

72 x 18 mm

Length

896 mm

Width

350 mm

Depth

105 mm

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Environmental disclosure

ENVPEP1602010EN

Circularity profile

N/A

Others

Commercial status history

SESA301466 | Mon Jul 17 21:48:00 EDT 2023 | From Import Local | From 08 to 08

Package 1 bare product quantity

1

Incomer device

4P switch disconnector| 4P terminal block| 3P + N RCCB| 3P + N MCCB| 4P contactor

Protection device type

residual current circuit breaker with overcurrent protection (RCBO) 45 A max |miniature circuit breaker (MCB) 63 A max

Number of ways

24 ways (outgoer)|1 way (incomer) - 3P + N + E

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

12.0 cm

Package 1 width

39.0 cm

Package 1 length

92.0 cm

Package 1 weight

6.18 kg

Unit type of package 2

PAM

Number of units in package 2

24

Package 2 height

112.0 cm

Package 2 width

100.0 cm

Package 2 length

120.0 cm

Package 2 weight

247.28 kg

Halogen content performance

Halogen free plastic parts product
