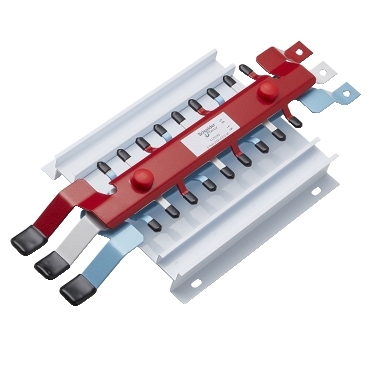

Acti9 DB, MSC27 Chassis, 3PH 250A 18P DF

Acti9 DB, MSC27 Chassis, 3PH 250A 18P DF

Item Number: C125183

Datasheet

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

chassis

Device application

distribution

Physical

Range compatibility

Acti 9 Acti9 Isobar B distribution board

[in] rated current

250 A

Number of poles

18 x 27 mm

Length

245 mm

Width

215 mm

Eu rohs directive

Not applicable, out of EU RoHS legal scope

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Device short name

MSC 27

Short-circuit withstand

25 kA 0.1 s

Number of ways

1 way (incomer) - 3P|18 ways (outgoer)

Busbar pitch

27 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

24.2 cm

Package 1 width

9.4 cm

Package 1 length

49.0 cm

Package 1 weight

2.32 kg

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
