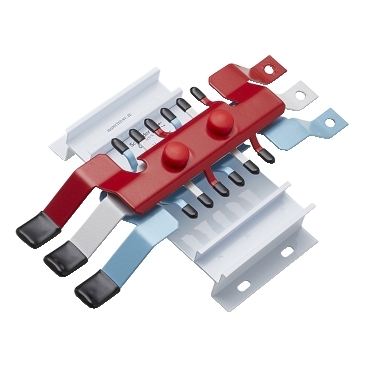

Acti9 DB, MSC18 Chassis, 3PH 250A 12P DF

Home ProductsCircuit ProtectionActi 9MSC18 Chassis

Acti9 DB, MSC18 Chassis, 3PH 250A 12P DF

Item Number: C325123

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

chassis

Device application

distribution

Physical

Range compatibility

Acti 9 Acti9 Isobar B distribution board

[in] rated current

250 A

Number of poles

12 x 18 mm

Length

110 mm

Width

215 mm

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Device short name

MSC 18

Short-circuit withstand

25 kA 0.1 s

[icw] rated short-time withstand current

25 kA

[ui] rated insulation voltage

500 V

[uimp] rated impulse withstand voltage

6 kV

Number of ways

  • 1 way (incomer) - 3P
  • 12 ways (outgoer)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

9.5 cm

Package 1 width

24.0 cm

Package 1 length

39.5 cm

Package 1 weight

1.34 kg

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Minimum percentage of recycled plastic content

0
