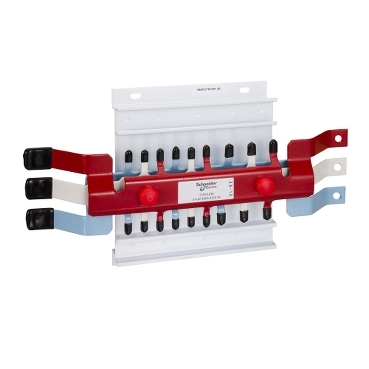

Acti9 MSC Chassis 3PH 400A, Hybrid 18/27mm for MCB & RCBO 18 poles, Dual Feed

Home ProductsCircuit ProtectionActi 9MSC Chassis 3PH

Acti9 MSC Chassis 3PH 400A, Hybrid 18/27mm for MCB & RCBO 18 poles, Dual Feed

Item Number: CH251834

Where To Buy

Datasheet

PDF datasheet

Download

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

chassis

Device application

distribution

Physical

Range compatibility

Acti 9 Acti9 Isobar B distribution board

[in] rated current

400 A

Number of poles

  • 6 x 27 mm
  • 12 x 18 mm

Length

191 mm

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Pro-active compliance (Product out of EU RoHS legal scope)

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

Product out of China RoHS scope. Substance declaration for your information

Others

Package 1 bare product quantity

1

Device short name

MSC 18/27

[icw] rated short-time withstand current

25 kA

Number of ways

  • 1 way (incomer) - 3P
  • 18 ways (outgoer)

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

1.000 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Recycled metal content at cr level

0

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

26.2117237101513

Global warming ; total life cycle​

26 kg CO2 eq.

Minimum percentage of recycled plastic content

0
Show all specifications
