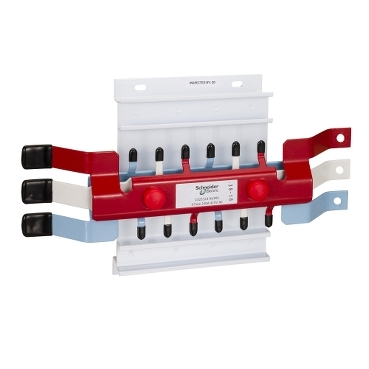

Acti9, MSC AUX9 Chassis, for 1P MCB iC60 with 9mm Auxiliary, 3PH 250A 36P

Acti9, MSC AUX9 Chassis, for 1P MCB iC60 with 9mm Auxiliary, 3PH 250A 36P

Item Number: C325363AUX91

Datasheet

Specifications

Design

Range

Acti9

Product or component type

chassis

Device application

distribution

Physical

Range compatibility

Acti 9 Acti9 Isobar B distribution board

[in] rated current

250 A

Length

488 mm

Width

215 mm

Others

Package 1 bare product quantity

1

Device short name

MSC AUX9

Short-circuit withstand

25 kA 0.1 s

[icw] rated short-time withstand current

25 kA

Number of ways

1 way (incomer) - 3P|36 ways (outgoer) - 1P with 9 mm

Busbar pitch

27 mm

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 weight

1 kg
