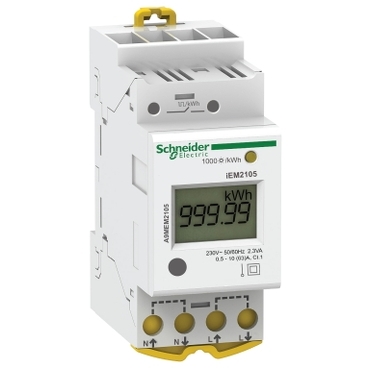

Acti9, Modular single phase power meter, iEM2105, 230V, 63A with pulse

Home ProductsCircuit ProtectionActi 9Modular single phase power meter

Acti9, Modular single phase power meter, iEM2105, 230V, 63A with pulse

Item Number: A9MEM2105

Where To Buy

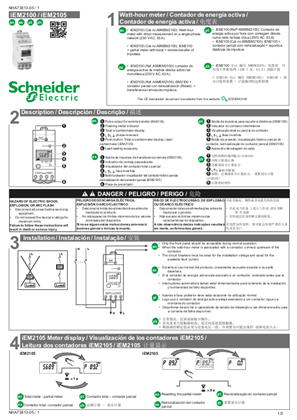

Datasheet

PDF datasheet

Download

Product Dimensions

Width icon

Width36 mm

Height icon

Height81 mm

Depth icon

Depth65 mm

See full specifications

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

energy meter

Market segment

buildings small building cost management: billing: panelboard|buildings medium building cost management: billing: panelboard|buildings large building cost management: billing: panelboard|buildings multi-site cost management: billing: panelboard|data center cost management: billing: panelboard|healthcare cost management: billing: panelboard|industry cost management: billing: panelboard|buildings small building cost management: cost allocation: panelboard|buildings medium building cost management: cost allocation: panelboard|buildings large building cost management: cost allocation: panelboard|buildings multi-site cost management: cost allocation: panelboard|data center cost management: cost allocation: panelboard|healthcare cost management: cost allocation: panelboard|industry cost management: cost allocation: panelboard

Device application

sub billing|partial meter

Physical

Depth

65 mm

Height

81 mm

Net weight

0.135 kg

Width

36 mm

Ambient air temperature for storage

-25...70 °C

Ik degree of protection

IK05

Ip degree of protection

IP40 front panel: conforming to IEC 60529|IP20 casing:

Ambient air temperature for operation

-25...55 °C|-20...55 °C

Relative humidity

0...95 % at 55 °C

[in] rated current

63 A

Rated voltage

230 V +/- 20 %

Communication port protocol

-

Local signalling

green indicator light: power ON|yellow indicator light: metering and activity 1000 p/kWh

Mounting mode

clip-on

Mounting support

DIN rail

Connections - terminals

power circuit: tunnel type terminals (bottom) 1 16-16 mm² cable(s)

Standards

IEC 61557-12|IEC 62053-21

Product certifications

CE

Eu rohs directive

Compliant

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

Others

Commercial status history

SESA301466 | Wed Aug 16 00:32:00 EDT 2023 | From Import Local | From 08 to 18

9 mm pitches

4

Operating altitude

< 3000 m

Package 1 bare product quantity

1

Package 2 bare product quantity

60

Product name

Acti9 iEM2100

Device short name

iEM2105

Poles description

1P + N

Type of measurement

active energy

Accuracy class

class 1 active energy conforming to IEC 62053-21

Analogue input type

direct input

Max current

63 A

[ib] basic current

10 A

Network frequency

50 Hz|60 Hz

Frequency measurement range

45...65 Hz

Technology type

electronic

Display type

LCD display

Sampling rate

32 samples/cycle

Measurement current

0.5...63 A

Display digits

5

Maximum value measured

999.99 MWh

Information displayed

tariff (1)

Communication port support

-

Number of inputs

0

Number of outputs

1 pulse energy monitoring:

Output voltage

24 V DC@18 mA|230 V AC@100 mA

Impulse duration

200 ms

Maximum power consumption in va

2.5 VA at 240 V AC

Tightening torque

power circuit: 1.5...1.5 N.m|remote transfer: 0.9...0.9 N.m

Compatibility code

iEM2105

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

7.800 cm

Package 1 width

9.500 cm

Package 1 length

4.500 cm

Package 1 weight

191.000 g

Unit type of package 2

S03

Number of units in package 2

60

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

12.016 kg

Packaging made with recycled cardboard

No

Packaging without single use plastic

No

Scip number

bbf00c42-0e4a-477a-a264-49e05535afce

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A
