Acti9, Modular single phase power meter, iEM2000T, 230V, 40A without display

Home ProductsCircuit ProtectionActi 9Modular single phase power meter

Acti9, Modular single phase power meter, iEM2000T, 230V, 40A without display

Item Number: A9MEM2000T

Datasheet

Product Dimensions

Width icon

Width18 mm

Height icon

Height96.5 mm

Depth icon

Depth69 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Product or component type

energy meter

Market segment

buildings small building cost management: billing: panelboard|buildings medium building cost management: billing: panelboard|buildings large building cost management: billing: panelboard|buildings multi-site cost management: billing: panelboard|data center cost management: billing: panelboard|healthcare cost management: billing: panelboard|industry cost management: billing: panelboard|buildings small building cost management: cost allocation: panelboard|buildings medium building cost management: cost allocation: panelboard|buildings large building cost management: cost allocation: panelboard|buildings multi-site cost management: cost allocation: panelboard|data center cost management: cost allocation: panelboard|healthcare cost management: cost allocation: panelboard|industry cost management: cost allocation: panelboard

Device application

sub billing

Market segment

residential|small commercial

Sustainable offer status

Green Premium product

Warranty

18 months

Physical

[in] rated current

40 A

Rated voltage

230 V +/- 20 %

Communication port protocol

-

Local signalling

green indicator light: power ON|yellow indicator light: metering and activity 3200 p/kWh

Mounting mode

clip-on

Mounting support

DIN rail

Connections - terminals

power circuit: tunnel type terminals (bottom) 1 10-10 mm² cable(s) |remote transfer: tunnel type terminals (top) 1 4-4 mm² cable(s)

Standards

IEC 61557-12|IEC 62053-21

Product certifications

CE

Ip degree of protection

IP40 front panel: conforming to IEC 60529|IP20 casing:

Ambient air temperature for operation

-25...65 °C|-20...55 °C

Ambient air temperature for storage

-40...70 °C

Relative humidity

0...95 % at 55 °C

Width

18 mm

Height

96.5 mm

Depth

69 mm

Net weight

0.073 kg

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant with Exemptions

Mercury free

Yes

Rohs exemption information

Yes

China rohs regulation

X

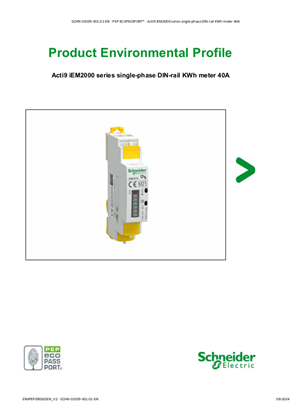

Environmental disclosure

ENVPEP090502EN_V2

Circularity profile

ENVEOLI090601EN_V2

Others

Package 1 bare product quantity

1

Package 2 bare product quantity

38

Product name

Acti9 iEM2000

Device short name

iEM2000T

Poles description

1P + N

Type of measurement

active power

Accuracy class

class 1 active energy conforming to IEC 62053-21

Analogue input type

direct input

Max current

40 A

[ib] basic current

5 A

Network frequency

60 Hz|50 Hz

Frequency measurement range

48...62 Hz

Technology type

electronic

Display type

without display

Sampling rate

32 samples/cycle

Measurement current

0.25...40 A

Display digits

0

Communication port support

-

Number of inputs

0

Number of outputs

1 pulse energy monitoring:

Output voltage

5...35 V DC@20 mA

Impulse duration

120 ms

Maximum power consumption in va

10 VA at 240 V AC

Tightening torque

power circuit: 1.2...1.2 N.m|remote transfer: 0.8...0.8 N.m

Compatibility code

iEM2000T

Operating altitude

< 2000 m

9 mm pitches

2

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.5 cm

Package 1 width

8.0 cm

Package 1 length

10.0 cm

Package 1 weight

112.0 g

Unit type of package 2

S02

Number of units in package 2

38

Package 2 height

15 cm

Package 2 width

30 cm

Package 2 length

40 cm

Package 2 weight

4.982 kg
Show all specifications

Documents & downloads

hide show
Filter items
  • All

  • CAD Files and Packs

  • Product Brochures

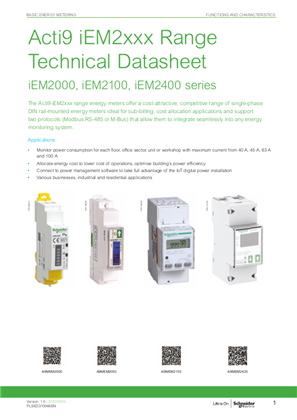

  • Technical Data Catalogues

  • Other technical guide

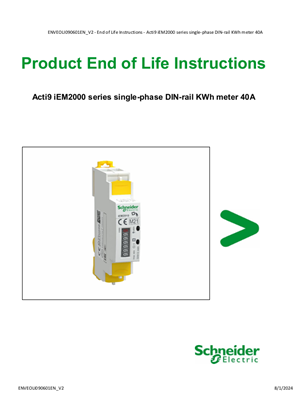

  • End of Life Manual

  • Environmental Disclosure

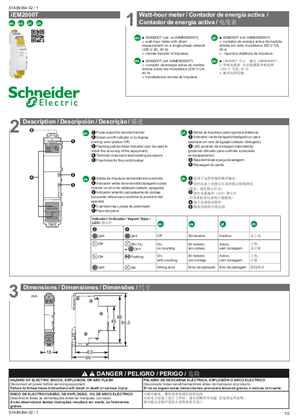

  • Installation Instruction

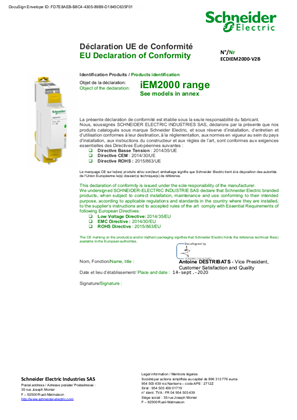

  • Declaration of Conformity
