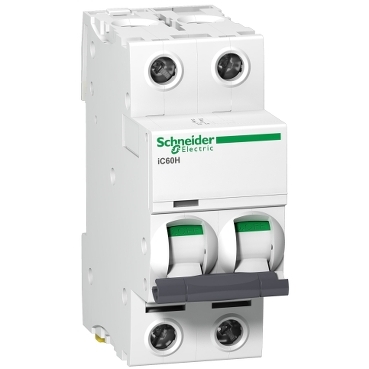

Acti9, Miniature circuit breaker (MCB), iC60H Disbo, 2P, 6A, C curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)

Home ProductsCircuit ProtectionActi 9Miniature circuit breaker (MCB)

Acti9, Miniature circuit breaker (MCB), iC60H Disbo, 2P, 6A, C curve, 10000A (IEC/EN 60898-1), 15kA (IEC/EN 60947-2)

Item Number: A9F54206

Datasheet

Product Dimensions

Width icon

Width36 mm

Height icon

Height85 mm

Depth icon

Depth78.5 mm

Barcode

Qty UoM EAN Colour
-
-
-

Specifications

Design

Range

Acti9

Range of product

Acti9

Product or component type

miniature circuit-breaker

Physical

[in] rated current

6 A

[ue] rated operational voltage

<ul><li>12...133 V AC 50/60 Hz</li><li>220...240 V AC 50/60 Hz</li><li>380...415 V AC 50/60 Hz</li><li>440 V AC 50/60 Hz</li><li>400 V AC 50/60 Hz</li><li>100...133 V DC</li></ul>

Control type

toggle

Local signalling

trip indicator

Mounting mode

clip-on

Mounting support

rail

Height

85 mm

Width

36 mm

Depth

78.5 mm

Net weight

0.25 kg

Mechanical durability

20000 cycles

Electrical durability

10000 cycles

Connections - terminals

<ul><li>single terminal (top or bottom) 1-25 mm² rigid</li><li>single terminal (top or bottom) 1-16 mm² flexible</li></ul>

Wire stripping length

14 mm for top or bottom connection

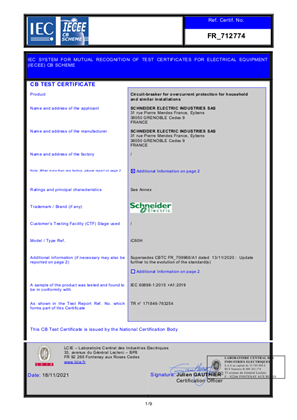

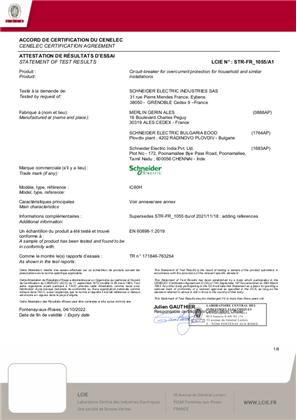

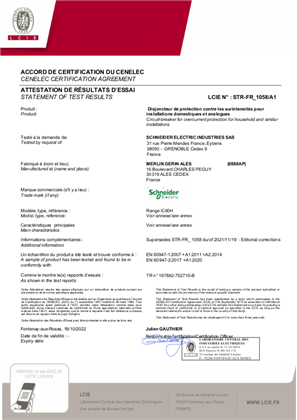

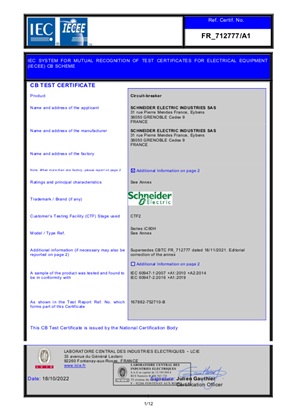

Standards

<ul><li>EN/IEC 60898-1</li><li>EN/IEC 60947-2</li></ul>

Ip degree of protection

IP20 conforming to IEC 60529

Relative humidity

95 % at 55 °C

Ambient air temperature for operation

-35...70 °C

Ambient air temperature for storage

-40...85 °C

Reach regulation

Reference contains Substances of Very High Concern above the threshold

Eu rohs directive

Compliant

Toxic heavy metal free

Yes

China rohs regulation

 Pro-active China RoHS declaration (out of China RoHS legal scope)

Rohs exemption information

Yes

Environmental disclosure

ENVPEP1705002EN

Circularity profile

N/A

Others

Package 1 bare product quantity

1

Product name

Disbo iC60

Device short name

iC60H

Poles description

2P

Number of protected poles

2

Network type

AC/DC

Trip unit technology

thermal-magnetic

Curve code

C

Breaking capacity code

H

Breaking capacity

<ul><li>10 kA Icu at 100...133 V DC conforming to EN/IEC 60947-2</li><li>10000 A Icn at 400 V AC 50/60 Hz conforming to EN/IEC 60898-1</li><li>42 kA Icu at 12...133 V AC 50/60 Hz conforming to EN/IEC 60947-2</li><li>30 kA Icu at 220...240 V AC 50/60 Hz conforming to EN/IEC 60947-2</li><li>15 kA Icu at 380...415 V AC 50/60 Hz conforming to EN/IEC 60947-2</li><li>10 kA Icu at 440 V AC 50/60 Hz conforming to EN/IEC 60947-2</li></ul>

Utilisation category

category A conforming to EN/IEC 60947-2

Network frequency

50/60 Hz

Magnetic tripping limit

8 x In +/- 20 %

[ics] rated service breaking capacity

<ul><li>21 kA 50 % conforming to EN/IEC 60947-2 - 12...133 V AC 50/60 Hz</li><li>15 kA 50 % conforming to EN/IEC 60947-2 - 220...240 V AC 50/60 Hz</li><li>7.5 kA 50 % conforming to EN/IEC 60947-2 - 380...415 V AC 50/60 Hz</li><li>5 kA 50 % conforming to EN/IEC 60947-2 - 440 V AC 50/60 Hz</li><li>7500 A 75 % conforming to EN/IEC 60898-1 - 415 V AC 50/60 Hz</li><li>10 kA 100 % conforming to EN/IEC 60947-2 - 100...133 V DC</li></ul>

Limitation class

3 conforming to EN/IEC 60947-2

[ui] rated insulation voltage

500 V AC 50/60 Hz conforming to EN/IEC 60947-2

[uimp] rated impulse withstand voltage

6 kV conforming to EN/IEC 60947-2

Contact position indicator

yes

Connection pitch

18 mm between phases

9 mm pitches

4

Total power losses

2.6 W

Power losses per pole

1.3 W

Provision for padlocking

padlockable

Tightening torque

2 N.m top or bottom

Earth-leakage protection

separate block

Compatibility code

iC60

Pollution degree

3 conforming to EN/IEC 60947-2

Overvoltage category

IV

Tropicalisation

2 conforming to IEC 60068-1

Unit type of package 1

PCE

Number of units in package 1

1

Package 1 height

3.600 cm

Package 1 width

7.300 cm

Package 1 length

9.000 cm

Package 1 weight

215.000 g

Unit type of package 2

S03

Number of units in package 2

66

Package 2 height

30.000 cm

Package 2 width

30.000 cm

Package 2 length

40.000 cm

Package 2 weight

15.323 kg

Green premium status for reporting

Green Premium product

Packaging made with recycled cardboard

Yes

Packaging without single use plastic

Yes

Scip number

26ff71d1-98cf-4280-8725-455b9a6b2fb9

Sustainable packaging

Yes

Weee

The product must be disposed on European Union markets following specific waste collection and never end up in rubbish bins

Take-back

No

Take-back

No

Product contributes to saved and avoided emissions

No

Removable battery

N/A

Carbon footprint (kg.eq.co2 per cr, total life cycle)

16.199837042495524
